IES6306-4GP2HS-2P48-120W, Layer 2+ Managed Industrial PoE Switch 2 ports 100M/1G/2.5G SFP(SFP slot)+ 4 ports 10/100/1000Baes-T(X) PoE/PoE+ (RJ45),dual power supply 48VDC,120W maximum output consumption of PoE
IES6306-4GP2HS-2P48-120W
Layer 2+ Managed Industrial PoE Switch 2 ports 100M/1G/2.5G SFP(SFP slot)+ 4 ports 10/100/1000Baes-T(X) PoE/PoE+ (RJ45),dual power supply 48VDC,120W maximum output consumption of PoE
SPEDIZIONE GRATUITA
Overview

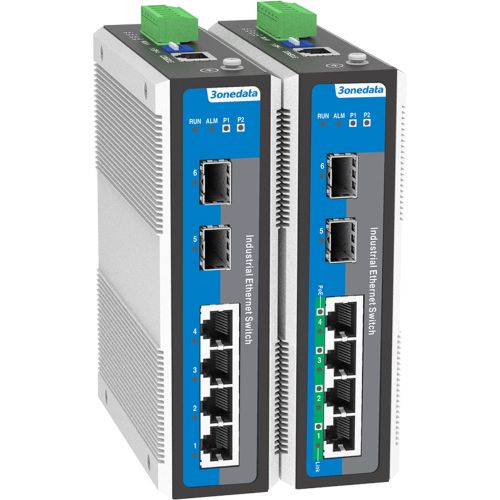

IES6306 Series are 6-port Gigabit layer 2+ managed industrial Ethernet switches. This series have two products and provide 4 Gigabit copper ports, 4 Gigabit PoE copper ports and 2 2.5G SFP slots, and it adopts DIN-Rail mounting which can meet the requirements of different scenes.
Network management system supports various network protocols and industrial standards, such as SW-Ring, STP/ RSTP/MSTP, ERPS, DHCP, VLAN, QoS function, IGMP Snooping, LLDP, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Access Control, Network Diagnosis, Online Upgrading and so on, and supports CLI, WEB, Telnet, SSH, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
Features
- SNMPv1/v2c/v3 is used for network management of various levels
- RMON can be used for efficient and flexible network monitoring
- QoS supports real-time traffic classification and priority setting
- LLDP can achieve automatic topology discovery, which is convenient for visual management
- DHCP server can be used for distributing IP address with different strategies
- DHCP Snooping can ensure DHCP client gets IP address from legal DHCP server
- DHCP relay function can realize IP address, gateway, DNS configuration cross network segment
- File management is convenient for the device rapid configuration and online upgrading
- User privilege classification configuration can set user privilege level
- SSH configuration and HTTPS configuration can improve device’s management security and guarantee data access security
- Support NAS network access service and provide security assurance for multiple services
- IPMC file configuration can deploy access control on IP multicast flow
- MEP function can determine the scope and boundary of maintenance domain
- SW-Ring and STP/RSTP/MSTP can achieve network redundancy, preventing network storm
Specifications
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
ITU-T G.8032 for ERPS
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
IEEE 802.3af for PoE
IEEE 802.3at for PoE+
Management
SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Snooping, DHCP relay, user password, login method, File Management, Log
Management, Port Statistics, PoE
Security
User Privilege Classification, Authentication method Configuration, SSH Configuration, HTTPS Configuration, Access Management, SNMP, RMON, NAS, Radius Server Authentication, TACACS + Server Authentication, ACL, Port Alarm, DC Power Supply Alarm, Loop Protection
Switch Function
802.1Q VLAN, Static Aggregation, LACP
Unicast / Multicast
IGMP Snooping
Redundancy Technology
SW-Ring, STP/RSTP/MSTP, ERPS
Troubleshooting
Ping, Cable Detection
Time Management
NTP, Time Zone Configuration
Interface
Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex, MDI/MDI-X Autotunning;
Gigabit PoE copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex, MDI/MDI-X Autotunning;
the single port supports up to 30W PoE output power. PoE power supply pin: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6
2.5G SFP slot: 100/1000 Base-X self-adaption or 100/1000/2.5G Base-X forced mode, SFP slot
Console port: CLI command line management port(RS-232), RJ45
Alarm port: 6-Pin 5.08mm pitch terminal blocks, relay occupies 2 pins and 1 relay alarm information output is supported, the current load capability is 1A@30VDC or 0.3A@125VAC
Indicator
Running Indicator, Alarm Indicator, Power Supply Indicator, Interface Indicator, PoE State Indicator
Switch Property
Transmission mode: store and forward
MAC address: 8K
Packet buffer size: 4Mbit
Backplane bandwidth: 30G
Switch time delay: <10μs
Power Supply
Voltage range without using PoE function: 12~48VDC
Rated voltage: 48VDC
Maximum voltage range: 44VDC~55VDC
Connection method: 6-Pin 5.08mm pitch terminal blocks (includes 4-pin power supply)
Power supply quantity: dual power supply redundancy backup
Connection protection: anti-reverse connection
Overcurrent protection: 5A
Power Consumption
No-load (@48VDC): 4.03W
Full-load (@48VDC): ≤ 130W
Working Environment
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Dimension (W x H x D): 44mm×150mm×120mm
Industrial Standard
IEC 6100042 (ESD, electrostatic discharge), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
IEC 6100044 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Relay: ±2kV
Signal: ±1kV
IEC 61000-4-5 (Surge), Level 3
Power supply: differential mode±1kV, common mode±2kV
Relay: differential mode±1kV, common mode±2kV
Signal: differential mode±1kV, common mode±2kV
Shock: IEC 60068- 2- 27
Free fall: IEC 60068- 2- 32
Vibration: IEC 60068-2-6
MTBF
200, 000 hours
Authentication
CE, FCC, RoHS
Warranty
5 years
