IGS-5225-8P2T2S Planet Gigabit PoE Managed Switches

IGS-5225-8P2T2S Planet

IGS-5225-8P2T2S

L2+ Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T+ 2-Port 100/1000X SFP Managed Ethernet Switch (-40~75 degrees C)

Quantità':

Prezzo per pezzo

€ 540,94

(IVA esclusa)

€ 659,95 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 659,95

Disponibilità: 10 gg lav

Brand: PLANET

SKU: 115400

Model: IGS-5225-8P2T2S

Line: 1G

Bisogno di aiuto?


Prodotti Correlati

Mean Well

SDR-480-48

Prezzo:  € 174,00

Mean Well

TDR-480-48

Prezzo:  € 240,25

Mean Well

WDR-480-48

Prezzo:  € 201,00

 Environmentally Hardened Design

PLANET Industrial 8-port Gigabit 802.3at PoE+ Switch, IGS-5225-8P2T2S, is equipped with a rugged IP30 metal case for stable operation in heavy industrial demanding environments. Thus, the IGS-5225-8P2T2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets.
Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-5225-8P2T2S can be placed in almost any difficult environment. The IGS-5225-8P2T2S also allows either DIN rail or wall mounting for efficient use of cabinet space.

Specifications

Hardware Specifications

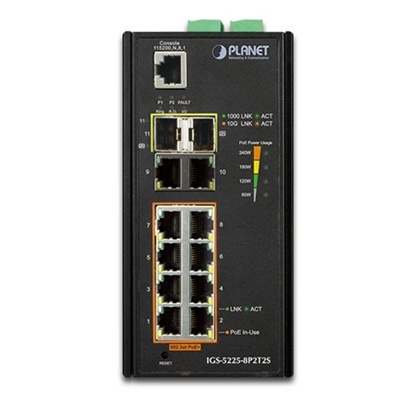

Copper Ports: 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports(Port-9 to Port-10)
SFP/mini-GBIC Slots: 2 1000BASE-SX/LX/BX SFP interfaces (Port-11 to Port-12)
Compatible with 100BASE-FX SFP
PoE Injector Port: 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8
Console: 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture: Store-and-Forward
Switch Fabric: 24Gbps/non-blocking
Throughput (packet per second): 17.85Mpps@ 64 bytes packet
Address Table: 8K entries, automatic source address learning and aging
Shared Data Buffer: 4Mbits
Flow Control: IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame: 9Kbytes
Reset Button: < 5 sec: System reboot
> 5 sec: Factory default
ESD Protection: 5KV DC
Enclosure: IP30 aluminum case
Installation: DIN rail kit and wall-mount kit

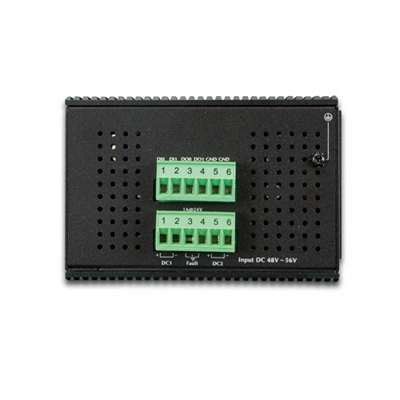

Connector: Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm: One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
DI/DO: 2 Digital Input (DI):
 Level 0: -24V~2.1V (±0.1V)
 Level 1: 2.1V~24V (±0.1V)
 Input load to 24V DC, 10mA max.

2 Digital Output (DO):
 Open collector to 24V DC, 100mA max.
LED Indicator: System:
 Power 1 (Green)
 Power 2 (Green)
 Fault Alarm ( Red )
 Ring (Green)
 Ring Owner (Green)
 DIDO ( Red )
Per 10/100/1000T RJ45 PoE+ Ports:
 PoE-in-Use (Orange)
 LNK/ACT (Green)
Per SFP Interface:
 100 LNK/ACT (Orange)
 1000 LNK/ACT (Green)
Dimensions (W x D x H): 72 x 107 x 152 mm
Weight: 991g
Power Requirements: Dual 48~56V DC (>51V DC for PoE+ output recommended)
Power Consumption: Max. 7.3 watts/25.04BTU (Power on without any connection)
Max. 252.3 watts/865.64BTU (Full loading with PoE function)

Power Over Ethernet

PoE Standard: IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type: End-span
PoE Power Output: IEEE 802.3af Standard
 - Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
 - Per port 51V~56V DC (depending on the power supply), max. 36 watts
Power Pin Assignment: 1/2(+), 3/6(-)
PoE Power Budget: Dual power input: 240W maximum (depending on power input)
Max. Number of Class 2 PDs: 8
Max. Number of Class 3 PDs: 8
Max. Number of Class 4 PDs: 8

Layer 2 Function

Basic Management Interfaces: Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces: SSH, TLS, SNMP v3
Port Configuration: Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control
Port Status: Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port Mirroring: TX/RX/both
1 to 1 monitor
VLAN: 802.1Q tagged based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs
Link Aggregation: IEEE 802.3ad LACP/static trunk
Supports 6 trunk groups with 4 ports per trunk group
QoS: Traffic classification based, strict priority and WRR
8-level priority for switching
 - Port number
 - 802.1p priority
 - 802.1Q VLAN tag
 - DSCP/TOS field in IP packet
IGMP Snooping: IPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IPv4 IGMP querier mode support
MLD Snooping: IPv6 MLD (v1/v2) snooping, up to 255 multicast groups
IPv6 MLD querier mode support
Access Control List: IP-based ACL/MAC-based ACL
Up to 123 entries
Bandwidth Control: Per port bandwidth control
 Ingress: 500Kb~1000Mbps
 Egress: 500Kb~1000Mbps
SNMP MIBs: RFC 1213 MIB-II
IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB

Layer 3 Function

IP Interfaces: Max. 8 VLAN interfaces
Routing Table: Max. 32 routing entries
Routing Protocols: IPv4 software static routing
IPv6 software static routing

Standards Conformance

Regulatory Compliance: FCC Part 15 Class A, CE
Stability Testing: IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management(CFM)
IEEE 1588 PTPv2
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
ITU G.8032 ERPS Ring
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring

Environment

Operating Temperature: -40 ~ 75 degrees C
Storage Temperature: -40 ~ 85 degrees C
Humidity: 5 ~ 95% (non-condensing)
