IGS-620TF
Industrial 4-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch
Bisogno di aiuto?
Flexible, Reliable and Industrial-grade Network Distance Extension Solution
The PLANET IGS-620TF is an Industrial 6-port full Gigabit Ethernet Switch providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It provides 4-port 10/100/1000Base-T RJ-45 copper and 2 extra 100/1000Base-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGS-620TF is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.
Specifications
Hardware Specifications

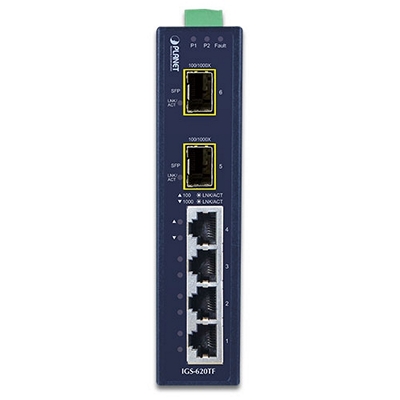

Copper Ports: 4 x 10/100/1000Base-T RJ-45 TP
Auto-MDI/MDI-X, Auto-Negotiation
SFP / mini-GBIC Slots: 2 1000Base-SX/LX/BX SFP interfaces (Port-5 and Port-6)
Compatible with 100Base-FX SFP

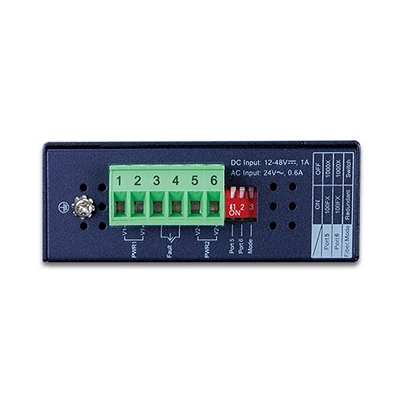

DIP Switch: DIP-1: SFP Port 5 1000Base-X (default) / 100Base-FX
DIP-2: SFP Port 6 1000Base-X (default)/ 100Base-FX
DIP-3: Switch mode / Fiber Redundant mode
Connector: Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Alarm: Provides one relay output for power failure
Alarm Relay current carry ability: 1A @ DC 24V
LED: 3 x LED for System and Power:
■ Green: DC Power 1
■ Green: DC Power 2
■ Green: Power Fault
2 x LED for Per Copper Port (Port-1~Port-4):
■ Green: 1000 LNK/ACT
■ Orange:100 LNK/ACT
1 x LED for Per mini-GBIC interface (Port-5 and Port-6):
■ Green: LNK/ACT
ESD Protection: 6KV DC
EFT Protection: 6KV DC
Enclosure: IP30 type metal case
Installation: DIN rail kit and wall mount ear
Dimensions (W x D x H): 135 x 87 x 32mm
Weight: 503g
Power Requirements: DC 12~48V or AC 24V
Redundant power with polarity reverses protection function
Power Consumption / Dissipation: 7.2watts / 24BTU
Cable: Twisted-Pair
10Base-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters
100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters
1000Base-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters
Fiber-Optic Cable
1000Base-SX:
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m
1000Base-LX:
9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120
kilometers (vary on SFP module)
100Base-FX:
● 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 2
kilometers
● 9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers
(vary on SFP module)
Switch Specification
Switch Processing Scheme: Store-and-Forward
Address Table: 1K entries
Flow Control: Back pressure for half duplex
IEEE 802.3x Pause Frame for full duplex
Switch fabric: 12Gbps
Throughput (packet per second): 8.93Mpps@64bytes
Maximum Transmit Unit: 9216 bytes
Speed: SX/LX: 2000Mbps (full-duplex)
FX: 200Mbps (full-duplex)
TP: 10/20Mbps, 100/200Mbps, 2000Mbps
Standards Conformance
Standards Compliance: IEEE 802.3 Ethernet / 10Base-T
IEEE 802.3u Fast Ethernet / 100Base-TX
IEEE 802.3ab Gigabit Ethernet / 1000Base-T
IEEE 802.3z Gigabit Ethernet / 1000Base-SX/LX
IEEE 802.3x Full-Duplex Flow Control
Regulation Compliance: FCC Part 15 Class A, CE
Stability Testing: IEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)
Environment
Temperature:
Operating: -40~75 degree C
Storage: -40~75 degrees C
Humidity:
Operating: 5~95% (Non-condensing)
Storage: 5~95% (Non-condensing)
