IGS-6325-20T4C4X Planet Rackmount Ethernet Switches

IGS-6325-20T4C4X Planet

IGS-6325-20T4C4X

Industrial L3 20-Port 10/100/1000T + 4-Port Gigabit TP/SFP + 4-Port 10G SFP+ Managed Ethernet Switch

Clicca per maggiori dettagli

Q.tà':

Prezzo per pezzo

€ 998,18

(IVA esclusa)

€ 1.217,78(IVA enclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 1.217,78

Disponibilità: 10 gg lav

  >> I tempi protrebbero essere piĆ¹ lunghi da quelli indicati <<

Brand: PLANET

SKU: 115345

Model: IGS-6325-20T4C4X

Line: 1G

Prodotti Correlati

Planet

SFP-Port 1000BASE-T Module

1+ pezzi:  € 47,61

Planet

SFP-Port 1000BASE-BX (WDM, TX:1550nm) ...

1+ pezzi:  € 28,56

Planet

SFP-Port 1000BASE-SX mini-GBIC module ...

1+ pezzi:  € 22,35

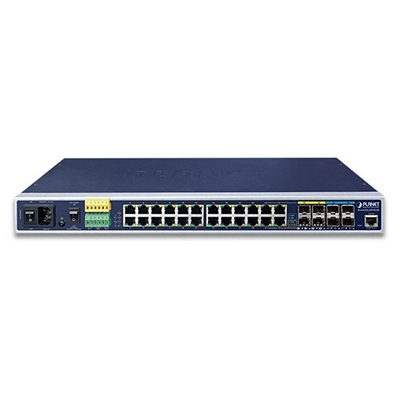

 PLANET IGS-6325-20T4C4X is an Industrial Layer 3 Managed Switch that features 24 10/100/1000Mbps ports, 4 shared SFP ports and 4 10G SFP+ ports, and supports Layer 3 IP routing in a 1U case. With 10Gbps uplink, the IGS-6325-20T4C4X can handle extremely large amounts of data in a secure topology linking to an industrial backbone or high capacity servers. The IGS-6325-20T4C4X is capable of providing non-blocking switch fabric and wire-speed throughput as high as 128Gbps in the temperature range from -40 to 75 degrees C. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands. Furthermore, it adopts user-friendly “Front Access” design for easy wiring and maintenance of the IGS-6325-20T4C4X when placed in the cabinet.

Specifications

Hardware Specifications

Copper Ports: 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots: 4 100/1000BASE-X SFP interfaces, shared with Port-21 to Port-24
Compatible with 100BASE-FX SFP transceiver
SFP+ Slots: 4 10GbBASE-SR/LR SFP+ interfaces (Port-25 to Port-28)
Compatible with 1000BASE-SX/LX/BX SFP transceiver
Console: 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture: Store-and-Forward
Switch Fabric: 128Gbps/non-blocking
Throughput: 95.2Mpps@64Bytes
Address Table: 16K entries, automatic source address learning and aging
Shared Data Buffer: 32M bits
Flow Control: IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame: 10K bytes
Reset Button: < 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H): 440 x 200 x 44.5 mm, 1U height
Weight: 2980g
LED Indicators: System:
AC (Green), DC1 (Green), DC2 (Green), Fault (Red)
Ring (Green), R.O. (Green), DI/DO (Red)
10/100/1000T RJ45 Interfaces (Port 1 to Port 24):
1000Mbps LNK/ACT (Green)
10/100Mbps LNK/ACT (Amber)
100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24):
1000Mbps LNK/ACT (Green)
100Mbps LNK/ACT (Amber)
1/10Gbps SFP+ Interfaces (Port 25 to Port 28):
10Gbps LNK/ACT (Green)
1Gbps LNK/ACT (Amber)
Power Consumption: Max. 36 watts/122.8 BTU
Power Requirements – AC: AC 100~240V, 50/60Hz 1A
Power Requirements – DC: DC 36~60V, 1.5A
DI & DO: 2 Digital Input (DI):
Level 0: -24~2.1V
Level 1: 2.1~24V
Max. input current: 10mA
2 Digital Output (DO): Open collector to 24VDC, 100mA
EFT Protection: 6KV DC
ESD Protection: 6KV DC

Layer 2 Management Functions

Port Configuration: Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port Status: Display each port’s speed duplex mode, link status, flow control status,
auto-negotiation status, trunk status
Port Mirroring: TX/RX/Both
Many-to-1 monitor
VLAN: 802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
Up to 256 VLAN groups, out of 4096 VLAN IDs
Link Aggregation: IEEE 802.3ad LACP/static trunk
14 groups with 16 port per trunk
Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
QoS: Traffic classification based, strict priority and WRR
8-level priority for switching:
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/ToS field in IP packet
IGMP Snooping: IGMP (v1/v2/v3) Snooping, up to 255 multicast groups
IGMP Querier mode support
MLD Snooping: MLD (v1/v2) Snooping, up to 255 multicast groups
MLD Querier mode support
Bandwidth Control: Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps

Layer 3 Functions

IP Interfaces: Max. 128 VLAN interfaces
Routing Table: Max. 128 routing entries
Routing Protocols: IPv4 hardware static routing
IPv6 hardware static routing
OSPFv2 dynamic routing

Management

Secure Management Interfaces: SSH, SSL, SNMPv3
SNMP MIBs: RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP

Standards Conformance

Regulatory Compliance: FCC Part 15 Class A, CE
Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 2328 OSPF v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring

Environment

Operating: Temperature: -10 ~ 60 degrees C for AC power input
Temperature: -40 ~ 75 degrees C for DC power input
Relative Humidity: 5 ~ 95% (non-condensing)
Storage: Temperature: -40 ~ 80 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
