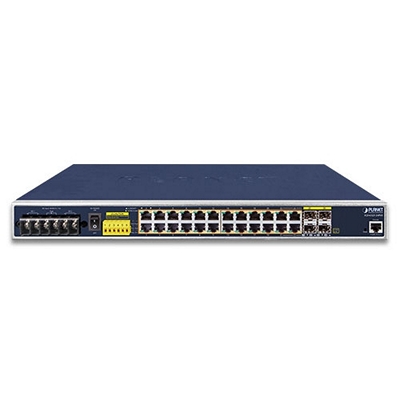

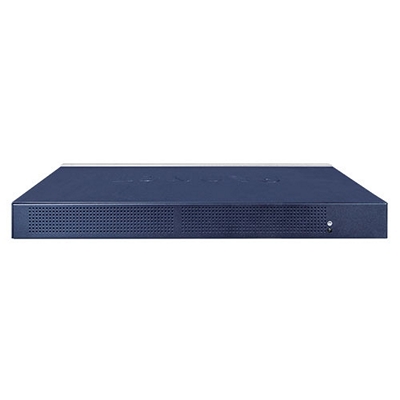

IGS-6325-24P4S Planet Rackmount Ethernet Switches

IGS-6325-24P4S Planet

IGS-6325-24P4S

Industrial L3 24-Port 10/100/1000T 802.3at PoE + 4-Port Shared 100/1000X SFP Managed Ethernet Switch(-40~75 degrees C)

Quantità':

Prezzo per pezzo

€ 967,06

(IVA esclusa)

€ 1.179,81 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 1.179,81

Disponibilità: 10 gg lav

Brand: PLANET

SKU: 115387

Model: IGS-6325-24P4S

Line: 10G

Bisogno di aiuto?


Prodotti Correlati

Planet

CB-DASFP-0.5M

Prezzo:  € 38,05

Planet

CB-DASFP-2M

Prezzo:  € 50,49

Planet

MFB-FX

Prezzo:  € 17,29

Planet

MGB-GT

Prezzo:  € 31,82

Planet

MGB-LB20

Prezzo:  € 22,14

Planet

MGB-SX2

Prezzo:  € 17,29

Planet

MGB-TSX

Prezzo:  € 19,37

Planet

MTB-SR2

Prezzo:  € 28,37

Mean Well

HDR-60-48

Prezzo:  € 28,80

Mean Well

MDR-40-48

Prezzo:  € 35,30

 Advanced Layer 3 Manageable PoE Solution for Hardened Environment

PLANET IGS-6325-24P4S L3 Industrial Managed PoE+ Switch, featuring 24 10/100/1000BASE-T 802.3at PoE+ ports with each port powering up to 36 watts, and 4 shared SFP ports in a 1U case. It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions, Layer 3 OSPFv2 dynamic routing capability, and advanced ITU-G.8032 ERPS Ring technology to improve the rapid self-recovery capability and PLANET intelligent PoE functions for controlling the PoE outdoor IP surveillance and wireless network applications. It is able to operate reliably, stably and quietly in the temperature range from -40 to 75 degrees C.

Specifications

Hardware Specifications

Copper Ports: 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots: 4 100/1000BASE-X SFP interfaces, shared with Port-21 to Port-24
Compatible with 100BASE-FX SFP transceiver
PoE Injector Port: 24 ports with 802.3af/at PoE injector function with Port-1 to Port-24
Console: 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture: Store-and-Forward
Switch Fabric: 48Gbps/non-blocking
Throughput (packet per second): 35.71Mpps@ 64 bytes packet
Address Table: 16K entries, automatic source address learning and aging
Shared Data Buffer: 32M bits
Flow Control: IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame: 10K bytes
Reset Button: < 5 sec: System reboot
> 5 sec: Factory default
ESD Protection: 5KV DC
Enclosure: IP30 metal case
Installation: Rack-mountable kit
Connector: Fixed 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm: One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
DI & DO: 2 digital input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Max. input current: 10mA
2 digital output (DO):
Open collector to 24V DC, 100mA max.
LED Indicators: System:
DC 1 (Green)
DC 2 (Green)
Fault Alarm (Red)
Ring (Green)
Ring Owner (Green)
DIDO (Red)
Per 10/100/1000T RJ45 PoE+ Interfaces (Port 1 to Port 24):
PoE-in-Use (Amber)
LNK/ACT (Green)
100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24):
1000Mbps LNK/ACT (Green)
100Mbps LNK/ACT (Amber)
Dimensions (W x D x H): 440 x 300 x 44 mm, 1U height
Weight: 3740g
Power Requirements: Dual 48~56V DC (>53V DC for PoE+ output recommended), 11A
Power Consumption: Max. 33 watts/112.51 BTU (Power on without any connection)
Max. 536 watts/1828.90 BTU (Full loading with PoE function)

Power Over Ethernet

PoE Standard: IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type: End-span
PoE Power Output: IEEE 802.3af Standard
- Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
- Per port 52V~56V DC (depending on the power supply), max. 36 watts
Power Pin Assignment: 1/2 (+), 3/6 (-)
PoE Power Budget: 48V Power input
- Single power input: 240W maximum (depending on power input)
- Dual power input: 300W maximum (depending on power input)
52~56V Power input
- Single power input: 240W maximum (depending on power input)
- Dual power input: 440W maximum (depending on power input)
※Dual power input must be the same as DC voltage, like dual 56V
Max. Number of Class 2 PDs: 24
Max. Number of Class 3 PDs: 24
Max. Number of Class 4 PDs: 16

Layer 2 Function

Port Configuration: Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control
Port Status: Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port Mirroring: TX / RX / Both
Many-to-1 monitor
VLAN: IEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP (GARP VLAN Registration Protocol)
Up to 256 VLAN groups, out of 4096 VLAN IDs
Link Aggregation: IEEE 802.3ad LACP/static trunk
Supports 14 trunk groups with 16 ports per trunk group
Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
QoS: Traffic classification based, strict priority and WRR
8-level priority for switching
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet
IGMP Snooping: IPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IPv4 IGMP querier mode support
MLD Snooping: IPv6 MLD (v1/v2) snooping, up to 255 multicast groups
IPv6 MLD querier mode support
Access Control List: IP-based ACL/MAC-based ACL
Up to 256 entries
Bandwidth Control: Per port bandwidth control
Ingress: 10Kbps~13000Mbps
Egress: 100Kbps~13000Mbps

Layer 3 Function

IP Interfaces: Max. 128 VLAN interfaces
Routing Table: Max. 128 routing entries
Routing Protocols: IPv4 hardware static routing
IPv6 hardware static routing
IPv4 OSPFv2 dynamic routing

Management

Basic Management Interfaces: Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces: SSH, TLS, SSL, SNMP v3
SNMP MIBs: RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
IEEE 802.1X PAE
LLDP

Standards Conformance

Regulatory Compliance: FCC Part 15 Class A, CE
Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 1588 PTPv2
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
FRC 3810 MLD version 2
ITU G.8032 ERPS Ring
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring

Environment

Operating Temperature: -40 ~ 75 degrees C
Storage Temperature: -40 ~ 85 degrees C
Humidity: 5 ~ 95% (non-condensing)
