IGS-6325-8UP2S Planet Gigabit PoE Managed Switches

 Outstanding 802.3bt PoE++ Solution for Hardened Environment

Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology, PLANET IGS-6325-8UP2S2X L3 Industrial Managed PoE++ Switch features eight 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95 watts and two 100/1000/2500BASE-X SFP interfaces in a rugged IP30 metal case for stable operation in heavy industrial demanding environments. It supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ ports, 95-watt PoH (Power over HD-BASE-T) mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-6325 PoE++ Switch series can be placed in almost any difficult environment. The IGS-6325 PoE++ Switch series also allows either DIN rail or wall mounting for efficient use of cabinet space.

Specifications

Hardware Specifications

Copper Ports: 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Ports: 2 1000BASE-SX/LX/BX SFP slot interfaces (Port-9 and Port-10)
Compatible with 100BASE-FX SFP and 2500BASE-X SFP
SFP+ Ports: N/A
PoE Injector Ports: 8 ports with 802.3bt PoE++ injector function with Port-1 to Port-8
Console: 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture: Store-and-Forward
Switch Fabric: 20Gbps/non-blocking
Throughput (packet per second): 14.8Mpps@ 64 bytes packet
Address Table: 16K entries, automatic source address learning and aging
Shared Data Buffer: 32Mbits
Jumbo Frame: 10Kbytes
SDRAM: 512Mbytes
Flash Memory: 64Mbytes
Flow Control: IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Reset Button: < 5 sec: System reboot
> 5 sec: Factory default

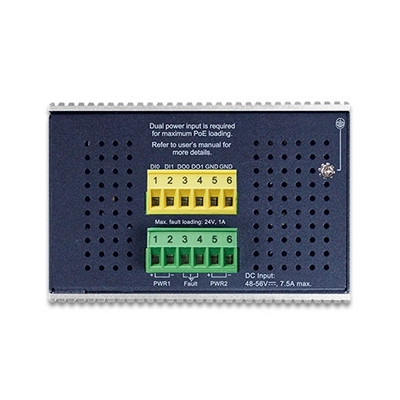

Connector: Removable 6-pin terminal block for power input
　Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
　Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm: One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input (DI): 2 digital input:
　Level 0: -24~2.1V (±0.1V)
　Level 1: 2.1~24V (±0.1V)
　Input load to 24V DC, 10mA max.
Digital Output (DO): 2 digital output:
　Open collector to 24VDC, 100mA
Enclosure: IP30 aluminum case
Installation: DIN-rail or wall mounting
Dimensions (W x D x H): 76.8 x 107.3 x 152 mm
Weight: 1,138g
Power Requirements: Dual DC 48~56V, 7.5A max.
(>52V DC for 802.3bt PoE++ output recommended)
Power Consumption: Max. 27 watts/92.13BTU@56V DC input (System on)
Max. 395 watts/1,347.80BTU@56V DC input (Full loading with 802.3bt PoE++ function)
ESD Protection: Air 8KV DC
Contact 6KV DC
Surge Protection: 4KV DC

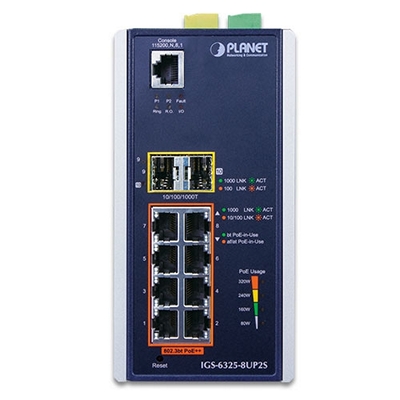

LED Indicator: System:
　Power 1 (Green), Power 2 (Green)
　Fault Alarm (Red)
　Ring (Green), Ring Owner (Green)
　DIDO (Red)
Per 10/100/1000T RJ45 PoE++ Port:
　1000Mbps LNK/ACT (Green)
　10/100Mbps LNK/ACT (Amber)
　802.3bt PoE++-in-use x 1 (Green)
　802.3at/af PoE-in-use x 1 (Amber)
Per SFP Interface:
　1000 LNK/ACT (Green)
　100 LNK/ACT (Amber)
Per SFP+ Port:
　10Gbps LNK/ACT (Green)
　1Gbps LNK/ACT (Amber
PoE Usage:
　80W, 160W, 240W, 320W (Amber)

Power Over Ethernet

PoE Standard: IEEE 802.3bt PoE++ Type-4 PSE
Backward compatible with 802.3at PoE+ PSE
PoE Power Supply Type: ■ 802.3bt
■ UPOE/POH
■ End-span
■ Mid-span
■ Force
PoE Power Output: 802.3bt PoE++
　- Per port 52V~56V DC (depending on the power supply), max. 90 watts UPoE(PoH)
　- Per port 52V~56V DC (depending on the power supply), max. 95 watts IEEE 802.3at Standard
　- Per port 52V~56V DC (depending on the power supply), max. 36 watts Force
　- Per port 52V~56V DC (depending on the power supply), max. 60 watts
Power Pin Assignment: End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
802.3bt/UPoE: 1/2(-), 3/6(+),4/5(+), 7/8(-)
PoE Power Budget: 360W maximum (depending on power input)
PoE Ability PD @ 12.5 watts: 8 units
PoE Ability PD @ 25 watts: 8 units
PoE Ability PD @ 51 watts: 6 units
PoE Ability PD @ 71 watts: 4 units
PoE Management Functions:
Active PoE device alive detects: Yes
PoE Power Recycle: Yes, daily or predeinded schedule
PoE Schedule: 4 schedule profiles
PoE Extend Mode: Yes, max. 160 to 200 meters
PoE System Management: System PoE Admin control
Total PoE power budget control
Auto power input and PoE budget control
PoE Legacy mode
Over-termperature threshold alarm
PoE usage threshold alarm
PoE Port Management: Port Enable/Disable/Schedule
PoE mode control
- 802.3bt
- UPoE
- 802.3at End-span
- 802.3at Mid-span
Force mode
Port Priority

Layer 2 Functions

Port Configuration: Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control
Port Status: Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring: TX/RX/both
Many-to-1 monitor
VLAN: 802.1Q tagged VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 256 VLAN groups, out of 4095 VLAN IDs
Link Aggregation: IEEE 802.3ad LACP/static trunk
Supports 3 trunk groups with 4 ports per trunk group
Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IGMP Snooping: IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD Snooping: IPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
Access Control List: IP-based ACL/MAC-based ACL
ACL based on:
　- MAC Address
　- IP Address
　- Ethertype
　- Protocol Type
　- VLAN ID
　- DSCP
　- 802.1p Priority
Up to 256 entries
Bandwidth Control: Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps
QoS: Traffic classification based, strict priority and WRR
8-level priority for switching
　- Port number
　- 802.1p priority
　- 802.1Q VLAN tag
　- DSCP/TOS field in IP packet
Synchronization: IEEE 1588v2 PTP(Precision Time Protocol)
　- Peer-to-peer transparent clock
　- End-to-end transparent clock

Layer 3 Functions

IP Interfaces: Max. 128 VLAN interfaces
Routing Table: Max. 128 routing entries
Routing Protocols: IPv4 hardware static routing
IPv6 hardware static routing
OSPFv2 dynamic routing

Management

Basic Management Interfaces: Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces: SSHv1/SSHv2, TLS, SSL, SNMP v3
System Management: Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
SNMP MIBs: RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP

Standards Conformance

Regulatory Compliance: FCC Part 15 Class A
CE:
EN55032
EN55035
EN 62368-1/IEC 62368-1: 2014
Stability Testing: IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
RFC 2328 OSPF v2
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring

Environment

Operating Temperature: -40 ~ 75 degrees C
Storage Temperature: -40 ~ 85 degrees C
Humidity: 5 ~ 95% (non-condensing)
