IGSW-24040T
Industrial L2+ 20-Port 10/100/1000T + 4-Port TP/SFP Combo Managed Ethernet Switch (-40~75 degrees C)
Bisogno di aiuto?

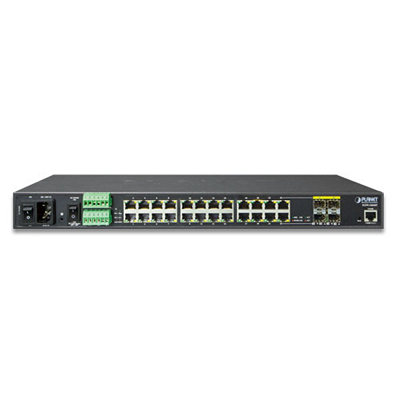

PLANET IGSW-24040T, a new industrial Layer 2+ managed Gigabit Switch, features 24 10/100/1000Mbps ports and 4 shared SFP ports, and supports static Layer 3 routing in a 1U case. With a total switch fabric of 48Gbps, the IGSW-24040T can handle large amounts of data in a secure topology linking to an industrial backbone or high capacity servers. The IGSW-24040T is capable of providing non-blocking switch fabric and wire-speed throughput in the temperature range from -40 to 75 degrees C without any packet loss and CRC error. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands. Furthermore, it adopts user-friendly “Front Access” design for easy wiring and maintenance of the IGSW-24040T when placed in the cabinet.
Specifications
Hardware Specifications
Hardware Version: 3
Copper Ports: 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots: 4 100/1000BASE-X SFP interfaces, shared with Port-21 to Port-24
Compatible with 100BASE-FX SFP transceiver
Console: 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture: Store-and-Forward
Switch Fabric: 48Gbps/non-blocking
Throughput: 35.71Mpps@64Bytes
Address Table: 8K entries, automatic source address learning and aging
Shared Data Buffer: 4M bits
Flow Control: IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame: 9K bytes
Reset Button: < 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H): 440 x 200 x 44.5 mm, 1U height
Weight: 2788g
LED: System:
AC (Green), DC1 (Green), DC2 (Green), Fault (Red)
Ring (Green), R.O. (Green), DI/DO (Red)
10/100/1000T RJ45 Interfaces (Port 1 to Port 24):
1000Mbps LNK/ACT (Green)
10/100Mbps LNK/ACT (Orange)
100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24):
1000Mbps LNK/ACT (Green)
100Mbps LNK/ACT (Orange)
Power Consumption: Max. 19.7 watts/67.2 BTU
Power Requirements – AC: AC 100~240V, 50/60Hz 0.5A
Power Requirements – DC: DC 36~60V, 0.7A
DI/DO: 2 Digital Input (DI):
Level 0: -24~2.1V
Level 1: 2.1~24V
Max. input current: 10mA
2 Digital Output (DO): Open collector to 24VDC, 100mA
EFT Protection: 6KV DC
ESD Protection: 6KV DC
Layer 2 Management Functions
Port Configuration: Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port Status: Display each port’s speed duplex mode, link status, flow control status,
auto-negotiation status, trunk status
Port Mirroring: TX/RX/Both
Many-to-1 monitor
VLAN: 802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
Link Aggregation: IEEE 802.3ad LACP/static trunk
12 groups with 8 port per trunk
Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
QoS: Traffic classification based, strict priority and WRR
8-level priority for switching:
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/ToS field in IP packet
IGMP Snooping: IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support
MLD Snooping: MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
Access Control List: IP-based ACL/MAC-based ACL
Up to 256 entries
Bandwidth Control: Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
Layer 3 Functions
IP Interfaces: Max. 8 VLAN interfaces
Routing Table: Max. 32 routing entries
Routing Protocols: IPv4 software static routing
IPv6 software static routing
Management
Basic Management Interfaces: Console/Telnet/Web browser/SNMP v1, v2c
Secure Management Interfaces: SSH, SSL, SNMPv3
SNMP MIBs: RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Standards Conformance
Regulatory Compliance: FCC Part 15 Class A, CE
Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 1588v2
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
FRC 3810 MLD version 2
Environment
Operating: Temperature: -10 ~ 60 degrees C for AC power input
Temperature: -40 ~ 75 degrees C for DC power input
Relative Humidity: 5 ~ 95% (non-condensing)
Storage: Temperature: -40 ~ 80 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
