IGTP-815AT Planet Gigabit Media Converter

IGTP-815AT Planet

IGTP-815AT

Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T 802.3at PoE+ Media Converter

Quantità':

Prezzo per pezzo

€ 119,68

(IVA esclusa)

€ 146,01 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 146,01

Disponibilità: limitata

Brand: PLANET

SKU: 115467

Model: IGTP-815AT

Bisogno di aiuto?


 Ruggedly Built for Harsh Environments

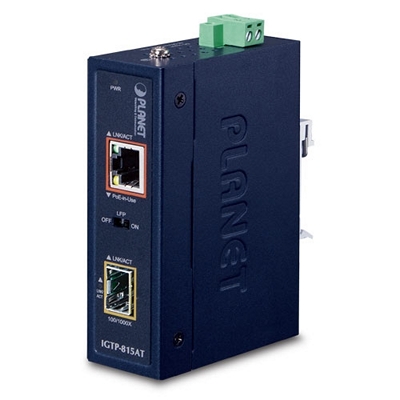

PLANET IGTP-815AT is the smallest, industrial-grade Gigabit PoE+ Media Converter, featuring one 100/1000BASE-X SFP fiber port and one 10/100/1000BASE-T 802.3at PoE+ copper port in an IP30-rated rugged but compact-size case. Being able to operate under the temperature ranging from -40 to 75 degrees C, the IGTP-815AT provides reliable, stable and continuous long-range data transmission and can be installed in any harsh environment without taking space into consideration.

Specifications

Hardware Specifications

Copper Port: 10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance.
Auto-negotiation, auto MDI/MDI-X with PoE injector function
SFP Slot: 1000BASE-SX/LX/BX SFP interface
Compatible with 100BASE-FX SFP
Flow Control: Back pressure for half duplex mode
IEEE 802.3x pause frame for full duplex mode
Maximum Frame Size: 9K

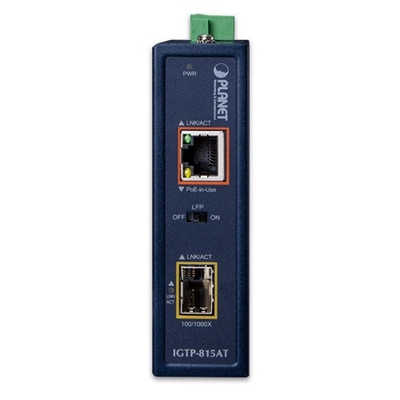

LED: System: Power (Green)
Fiber 100/1000BASE-X: LNK/ACT (Green)
TP 10/100/1000BASE-T: LNK/ACT(Green)
PoE: Power-in-use (Amber)
Dimensions (W x D x H): 30 x 70 x 104 mm
Weight: 251g

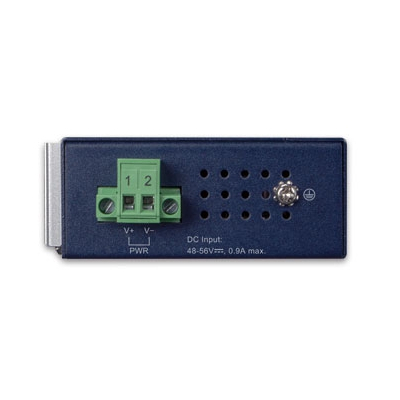

Power Requirements: DC 48~56V, supports reverse polarity protection
(>51V DC for PoE+ output recommended)
Power Consumption: System ON without loading
 DC 48V: 0.96W
 DC 56V: 1.12W
Full loading with PoE
 DC 48V:36.48W(PoE:30W)
 DC 56V:43.12W(PoE 36W)
DIP Switch: Link Fault Passthrough Enable/Disable
Enclosure: IP30 metal case
Installation: DIN-rail kit and wall-mount ear
ESD Protection: 6KV DC
Cables: 10/100/1000BASE-T:
 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters)
 EIA / TIA-568 100-ohm STP (maximum 100 meters)
100BASE-FX/1000BASE-SX/LX:
 Multi-mode: 50/125μm or 62.5/125μm optical fiber
 Single-mode: 9/125μm optical fiber

Power Over Ethernet

PoE Standard: IEEE 802.3at Power over Ethernet Plus
PoE Power Output: 48~56V DC: 36 watts max.
PoE Power Supply Type: End-span
Power Pin Assignment: 1/2(+), 3/6(-)
PoE Power Budget: 36 watts

Standards Conformance

Regulatory Compliance: FCC Part 15 Class A, CE
Protocols and Standards Compliance: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet over Fiber Optic
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Stability Testing: IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)

Environment

Temperature: Operating: -40~75 degrees C
Storage: -40~85 degrees C
Humidity: Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
