ITS-5216-8P4T-WV Planet Gigabit PoE Managed Switches

Features

Physical Port

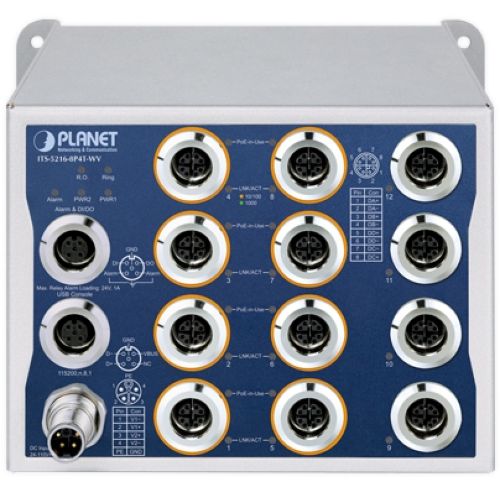

• 12-port 10/100/1000BASE-T vibration-proof and dustproof M12 X-coded female connectors with 8-port IEEE 802.3at Power over Ethernet Plus Injector function
• One M12 A-coded 5-pin male connector for USB data to RS232 console interface for basic management and setup
• One M12 A-coded 5-pin male connector with alarm, digital input and digital output functions
• One M12 K-coded 5-pin male connector with input voltage range of 24 to 110 VDC (Operating voltage: 16.8 to 137.5 VDC)

Industrial Case and Installation

• IP50-rated metal case

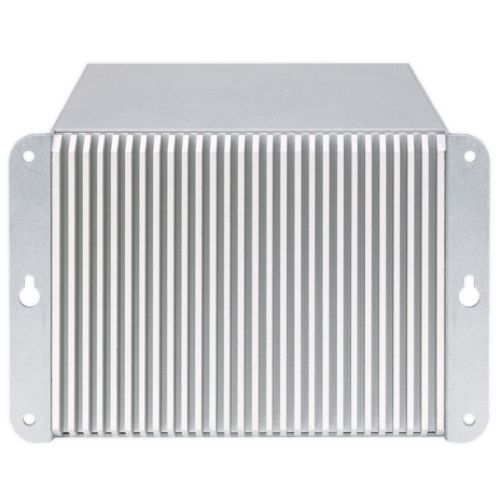

• wall-mount design
• 24~110V DC, redundant power with reverse polarity protection
• Supports 6KV DC Ethernet ESD protection
• -40 to 70 degrees C operating temperature
• Dual power input design
• 24V~110V DC wide power input with reverse polarity protection

Power over Ethernet

• Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
• Up to 8 IEEE 802.3af/802.3at devices powered
• Supports PoE power up to 36 watts for each PoE port
• Up to 100-watt PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters in standard mode and 250m in extend mode
• PoE management features
• PoE admin-mode control
• PoE management mode selection
• PoE Legacy mode selection
• Total PoE Budget setup option
• Per port PoE function enable/disable
• PoE port power feeding priority
• Per PoE port power limit
• PoE Port Status monitoring
• PD classification detection
• Intelligent PoE features
• PD alive check
• PoE extension
• PoE schedule
• PoE PD scheduled reboot

Layer 2 Features

• High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Storm Control support
• Broadcast/Multicast/Unicast
• Supports VLAN
• IEEE 802.1Q tagged VLAN
• Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
• Protocol VLAN
• Voice VLAN
• Private VLAN (Protected port)
• Management VLAN
• GVRP
• Supports Spanning Tree Protocol
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
• BPDU Filtering/BPDU Guard
• Supports Link Aggregation
• IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• Cisco ether-channel (static trunk)
• Provides port mirror (many-to-1)
• Port mirroring to monitor the incoming or outgoing traffic on a particular port
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Link Layer Discovery Protocol (LLDP)

Quality of Service

• Ingress/Egress Rate Limit per port bandwidth control
• Traffic classification
• IEEE 802.1p CoS
• DSCP
• IP precedence of IPv4/IPv6 packets
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Port-based DSCP remarking
• Voice VLAN

Multicast

• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD snooping v1 and v2
• IGMP Querier mode support
• IPv4 IGMP snooping port filtering
• IPv6 MLD snooping port filtering

Security

• Authentication
• IEEE 802.1x port-based network access authentication
• Built-in RADIUS client to co-operate with the RADIUS servers
• RADIUS/TACACS+ users access authentication
• Access Control List
• IPv4/IPv6 IP-based Access Control List (ACL)
• MAC-based Access Control List
• MAC Security
• Static MAC
• MAC filtering
• DHCP Snooping to filter un-trusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IP address access management to prevent unauthorized intruder
• DoS attack prevention

Management

• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
• Web switch management
• Console and Telnet Command Line Interface
• SNMP v1 and v2c switch management
• SSHv2, TLSv1.3 and SNMP v3 secure access
• SNMP Management
• SNMP trap for interface Link Up and Link Down notification
• Four RMON groups (history, statistics, alarms and events)
• User privilege levels control
• Built-in Trivial File Transfer Protocol (TFTP) client
• Static and DHCP for IP address assignment
• System Maintenance
• Firmware upload/download via HTTP/TFTP
• Configuration upload/download through HTTP/TFTP
• Dual images
• DHCP Functions:
• DHCP Relay
• DHCP Option82
• User Privilege levels control
• SNTP Network Time Protocol
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• Network Diagnostic
• ICMPv6/ICMPv4 Remote Ping
• Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
• Syslog remote alarm
• System Log
• PLANET Smart Discovery Utility for deployment management
• PLANET NMS system and CloudNMS for deployment management

Applications

Designed for Industrial and Transportation Applications

Providing up to 16 PoE+ in-line power interfaces, the ITS-5216-8P4T-WV can easily build a power system to centrally control IP phone systems, IP camera systems, or wireless APs in industrial and transportation environments.

High Availability Networking with Excellent Redundancy for Surveillance System

The ITS-5216-8P4T-WV features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) into customer's automation network to enhance system reliability and uptime. The ITS-5216-8P4T-WV is the ideal solution for surveillance system to build redundant connection and establish high bandwidth for public transmission system and railway transmission.
