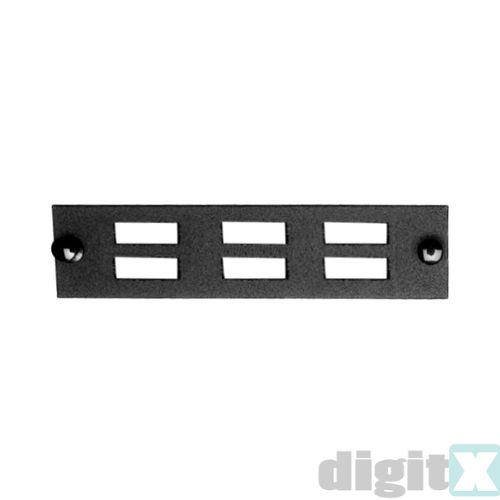

L03XXX00
8-Port Unloaded SC Duplex Plate With Locking Rivets - To suit S13XXX00/LGXCASE
Bisogno di aiuto?
Features
- Suitable for SC, LC, ST, FC & E2000 adaptors
- Interchangeable for a wide range of products
- Easy to install with either fastening pips or screw in
- Ranges from low to high density fibre counts
- Robust steel design
- Supplied with adaptors pre-loaded
Introduction
Our versatile LGX style Adaptor Plate can be used in a wide range of products including wall/tamper resistant boxes and panels. The plates are interchangeable which means that you can use them for different applications depending on the customers’ needs. Having the choice of a wide range of adaptors offers a flexible solution to the user. The LGX adaptor plate can be used in data centres, telecommunication networks, security networks, demarcation point and more.
Specifications
Height: 30mm
Width: 31mm
Length: 129mm
Net weight: 100g
Packed weight: 150g
Packaged dimensions: 60mm (H) X 45mm (W) X 140mm (L)
Material Sheet: Steel
Material Thickness: 1.2mm
Colour: Black RAL9004
Material coating: Electro Static Powder Coating
Operating Temperature: -40°C to + 60°C
Compliant to: RoHS, Reach, SVHC
Designed in accordance with: TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN 297-1
