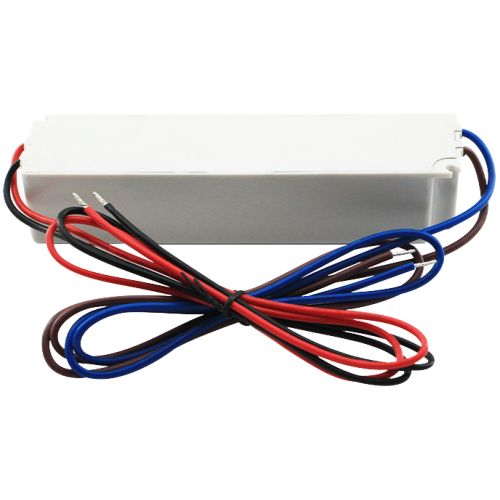

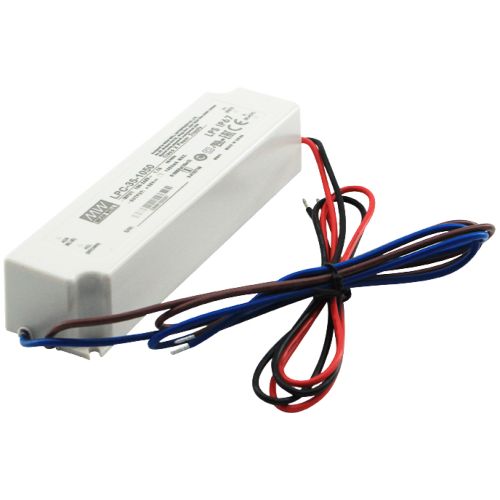

LPC-35-1050, AC/DC Enclosed LED Single output Constant Current (CC) 35W 9-30Vdc 1050mA
LPC-35-1050
AC/DC Enclosed LED Single output Constant Current (CC) 35W 9-30Vdc 1050mA
Bisogno di aiuto?
Features
- Constant current design
- Universal AC input / Full range
- Withstand 300VAC surge input tor 5 seconds
- Protections: Short circuit / Over voltage
- Cooling by free air convection
- Fully encapsulated with IP67 level
- Fully isolated plastic case
- Class II power unit, no FG
- Class 2 power unit
- Pass LPS
- Suitable for LED lighting and moving sign applications
- 100% full load burn-in test
- Low cost, high reliability
- 2 years warranty
Specifications
OUTPUT
RATED CURRENT: 1050mA
DC VOLTAGE RANGE: 9~30V
RATED POWER: 31.5W
RIPPLE & NOISE (max.): 200mVp-p
VOLTAGE TOLERANCE: ±5.0%
CURRENT ACCURACY: ±5.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME: 500ms, 120ms / 230VAC 500ms,120ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 16ms/115VAC at full load
INPUT
VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63HZ
EFFICIENCY (Typ.): 85%
AC CURRENT (Typ.): 1.1A/115VAC 0.7A/230VAC
