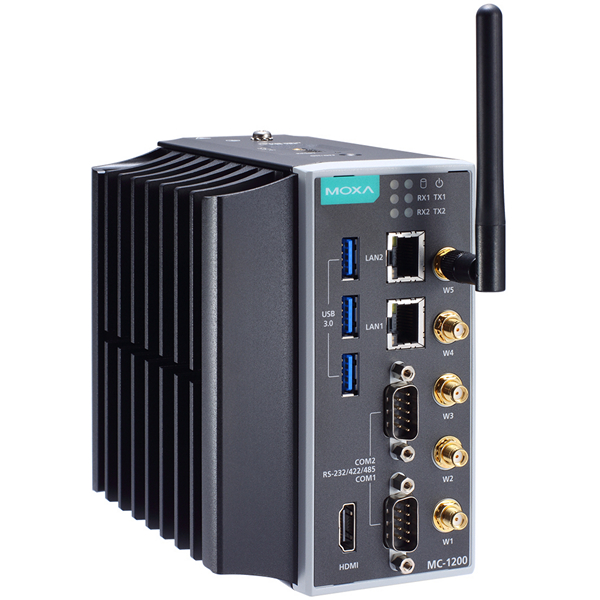

MC-1220-KL7-T-S MOXA Ultra-compact rugged

MC-1220-KL7-T-S MOXA

MC-1220-KL7-T-S

Intel Core i7-7600U, 2C/4T, 2.8 GHz CPU, with 1x HDMI, 2 Gigabit LAN ports, 2 RS/232/422/485 3-in-1 serial port, 3 x mini PCIe expansion slot (1 for mSATA,2 for wireless module), 3 x USB 3.0, TPM2.0, 9-36VDC with 8GB RAM, -40 to 70°C temp.

Clicca per maggiori dettagli

Q.tà':

Articoli Prezzo (IVA esc.)
1+ pz.€ 3.652,67
5+ pz.€ 3.543,09
10+ pz.€ 3.470,04

Prezzo di 1 pz. iva (22%) inclusa: € 4.456,26

Disponibilità: 10 gg lav

  >> I tempi protrebbero essere più lunghi da quelli indicati <<

Brand: MOXA

SKU: 115848

Model: MC-1220-KL7-T-S

  Features and Benefits

  •  3 Mini-PCIe sockets for Wi-Fi, 3G, LTE, GPS, and mSATA expansion modules
  •  7th Gen Intel® Core™ processor (Kaby Lake U)
  •  2 built-in DDR4 memory slots; total capacity up to 32 GB
  •  Built-in TPM 2.0 module
  •  Variety of interfaces: 2 serial ports, 2 Giga LANs, 3 USB 3.0 (type A) ports

Introduction

The MC-1200 Series computers are built around a 7th Gen Intel® Celeron® or Intel® Core™ i3, i5, or i7 processor and come with 1 HDMI display port, 3 USB 3.0 ports, 2 gigabit LAN ports, and 2 3-in-1 RS-232/422/485 serial ports. The MC-1200 is equipped with a 2.5” HDD/SSD slot and a built-in TPM 2.0 module.

Additional value and convenience is provided through a modular design with three independent slots for flexible system integration and expansion. Users have the option to add a variety of different communications modules, including Wi-Fi, 3G, LTE, GPS, and mSATA expansion modules.

With UL Class 1 Division 2 compliance, the MC-1200 is sure to deliver stable and reliable system operation for oil and gas applications. Class 1 Division 2 (C1D2) is a certification issued to products that allow them to be used in potentially hazardous environments. Examples of hazardous work settings include locations where flammable or explosive gasses, certain chemicals, airborne fibers, or vapors could be excessive under abnormal circumstances.

The MC-1200 is designed to operate reliably in extreme conditions, such as continuous exposure to low or high temperatures, humidity, high vibration, and power surges, making them perfect for heavy industry, solar grid, water/wastewater, oil and gas, and transportation applications.

Specifications

Computer

CPU: Intel® Core™ i7-7600U Processor (4M Cache, up to 3.90 GHz)
Storage Slot: mSATA slots x 1, SATA 3.0, internal mini-PCIe socket
System Memory Slot: SODIMM DDR4 slot x 2, up to 32 GB max.
Supported OS:
Linux Debian 9, 64-bit, kernel 4.9 (optional via CTOS)
Windows 10 Enterprise LTSC 1809 64-bit (optional via CTOS)
Graphics Controller: Intel® HD Graphics 620

Computer Interface

Video Input: HDMI x 1, up to 3840 x 2160 resolution at 30 Hz
USB 3.0: USB 3.0 hosts x 3, type-A connectors
Buttons: Reset button

Serial Interface

Connector: DB9 male
Serial Standards: RS-232/422/485 (software selectable)
Serial Ports: 2 x RS-232/422/485
Flow Control: RTS/CTS, XON/XOFF
Baudrate: 50 bps to 115.2 kbps
ESD Protection: 4 kV contact, 8 kV air

Ethernet Interface

Magnetic Isolation Protection: 1.5 kV (built-in)
10/100/1000BaseT(X) Ports (RJ45 connector): 2

LED Indicators

System: Power x 1
Serial: 2 per port (Tx, Rx)

Serial Signals

RS-232: TxD, RxD, RTS, CTS, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Physical Characteristics

Installation: Wall mounting (with optional kit), DIN-rail mounting
Housing: Metal
Dimensions: 134 x 60.4 x 120 mm (5.28 x 2.38 x 4.72 in)
Weight: Product only: 1.40 kg (0.63 lb)

Declaration

Green Product: RoHS, CRoHS, WEEE

Power Parameters

Power Button:
ON/OFF (rear panel)
Reset button

Input Voltage: 9 to 36 VDC
Input Current: 8 A @ 9 VDC, 2 A @ 36 VDC
Power Consumption: 72 W

Environmental Limits

Operating Temperature: -40 to 70°C (-40 to 158°F)
Storage Temperature: -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Shock: IEC 60068-2-27

Standards and Certifications

Safety: UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1
EMC: EN 55032/35, CISPR 32, FCC Part 15B Class A
Hazardous Locations: ATEX Zone 2, IECEx Zone 2, Class I Division 2

Reliability

Alert Tools: Built-in RTC (real-time clock) with lithium battery backup

MTBF

Time: 510,913 hrs
Standards: Telcordia (Bellcore), GB

Warranty

Warranty Period: 3 years
