MC-1610MR
16-slot Managed Media Converter Chassis (AC power)
Bisogno di aiuto?
Highly-flexible and Remotely-manageable Fiber-optic Networking for FTTx Applications

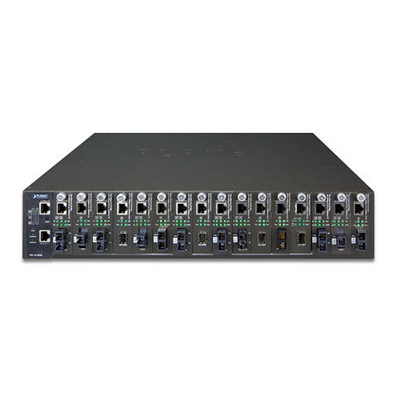

For powerfully advanced fiber-optic function and cost-effective solution, PLANET Managed Media Converter Chassis series, MC-1610MR/MC-1610MR48, provides 16 media converter slots and one management system in a 19-inch rack chassis. The MC-1610MR series is designed for FTTx applications for ISPs, telecoms, campuses and enterprises.
The MC-1610MR series can easily build an FTTx infrastructure that perfectly meets your demands. The 16 slots of PLANET Fast/Gigabit Ethernet Smart Media Converter (FST-80x/GST-80x series) can flexibly deliver an FTTH (Fiber to the Home), FTTB (Fiber to the Building) or FTTC (Fiber to the Curb) network solution for ISPs, enterprises and campuses. The MC-1610MR series is a reliable and efficient solution for network application where distance and installation budget are highly concerned.
Specifications
Hardware Specifications
Hardware Version: 2
Dimensions (W x D x H): 440 x 350 x 88mm, 2U
Slot: 16 open slots (15 x 80 x 26mm, W x D x H)

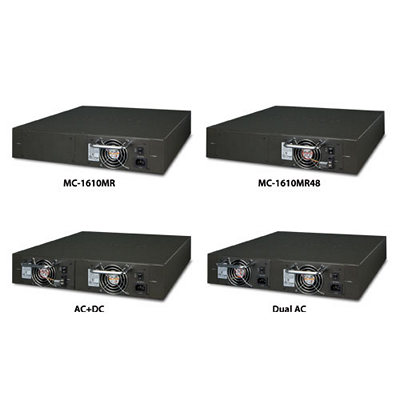

2 power slots (one fixed, one vacant)
Weight: 7kg
Power Requirements: 100-240V AC, 1A, 50-60Hz
Power Output: 5V DC per slot, 2A maximum
Power Consumption:
10 watts/34BTU (1 x power supply; converters not included)
46.9 watts/160 BTU (full loading)
Operating Environment: 0~50 degrees C, 5~90% RH
Storage Environment: -20~70 degrees C, 5~90% RH
Emission: FCC Class A, CE mark
Management Interface
Standards: IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x Flow Control
Fixed Interface: 10/100/1000BASE-T port x 1, RS232 to RJ45 console port x 1, reset button x 1
Speed: Ethernet: 10/20Mbps for half/full-duplex
Fast Ethernet: 100/200Mbps for half-/full-duplex
Gigabit Ethernet: 1000/2000Mbps for full-duplex
LED Indicator: System: MGM, Console, LNK/ACT, PWR ON x 2, PWR FAIL x 2, FAN FAIL x 2
Management: Console, Web, SNMP v1/v2c
SNMP Trap: Cold Start, MC copper link up/down, MC fiber link up/down.
