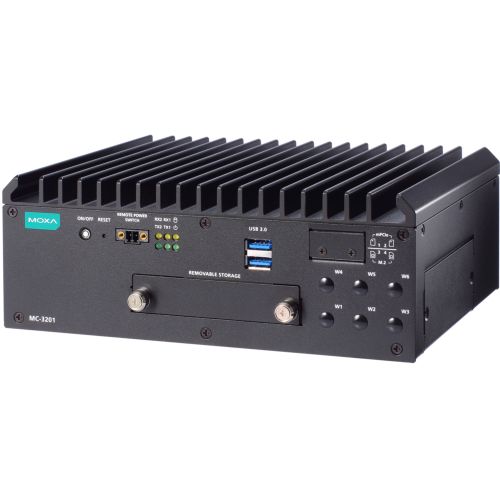

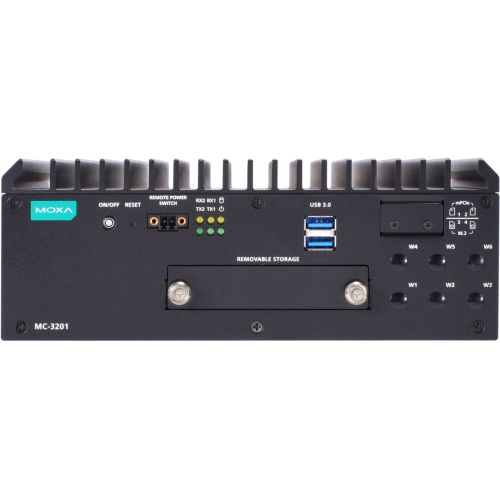

MC-3201-TGL1-S-S, X86 fanless computer with Intel Core Celeron 6305E CPU, 4x GigaLan, 2x RS-232/RS-422/RS-485, 2xDP, 6x USB3.0, M.2 B+E key, 2xSSD, Audio in/out, 9-36 VDC
MC-3201-TGL1-S-S
X86 fanless computer with Intel Core Celeron 6305E CPU, 4x GigaLan, 2x RS-232/RS-422/RS-485, 2xDP, 6x USB3.0, M.2 B+E key, 2xSSD, Audio in/out, 9-36 VDC
SPEDIZIONE GRATUITA
Certificati
Features and Benefits
- 11th Gen Intel® Core™ processor (Tiger Lake U)
- 2 built-in DDR4 memory slots; total capacity up to 32 GB
- M.2 B key socket for 5G, GPS, and M.2 SATA SSD expansion modules
- M.2 E key socket for Wi-Fi and BT expansion modules
- Variety of interfaces: 2 serial ports, 4 Giga LAN ports, 2 USB 3.1 (type A) ports, and 4 USB 2.0 (type A) ports
- Built-in TPM 2.0 module
- Complies with IEC-60945 and IACS E10 standards
Introduction
The MC-3201 Series computers are built around a 11th Gen Intel® Celeron® or Intel® Core™ i3, i5, or i7 processor and come with 2 DisplayPort interfaces, 2 USB 3.1 ports, 4 GbE ports, and 2 3-in-1 RS-232/422/485 serial ports. The computers are also equipped with a 2.5-inch SSD/HDD slot and a built-in TPM 2.0 module.
Additional value and convenience are provided through a modular design with two independent slots for flexible system integration and expansion. Users have the option to add a variety of different communications modules, including Wi-Fi, 5G, LTE, GPS, and M.2 SATA SSD expansion modules.
Compliance with the IEC-60945 and IACS E10 standards ensures the MC-3201 delivers stable and reliable system operations for marine and IIoT applications. These certifications are issued to indicate the suitability of product for use in marine applications.
Specifications
Computer
CPU: Intel® Celeron® 6305E processor (8M Cache, up to 1.8 GHz)
Storage Slot : SSD slot x 1; SATA 3.0, internal mPCIe socket
System Memory Slot : SODIMM DDR4 2133 slot x 2, up to 32 GB max.
Supported OS :
Linux Debian 11, 64-bit, kernel 5.10
Windows 10 Embedded IoT Ent 2019 LTSC 64-bit
(Both optional, available via CTOS)
Graphics Controller: Intel® Iris® Xe Graphics
Computer Interface
Video Output:
DisplayPort x 2
up to 3840 x 2160 resolution at 60 Hz
USB 3.0: USB 3.0 hosts x 2, type-A connectors
USB 2.0: USB 2.0 hosts x 4, type-A connectors
Buttons: Reset butto
Serial Interface
Connector: DB9 male
Serial Standards: RS-232/422/485 (software selectable)
Serial Ports: 2 x RS-232/422/485
Flow Control: RTS/CTS, XON/XOFF
Baudrate: 50 bps to 115.2 kbps
ESD Protection: 4 kV contact, 8 kV air
Ethernet Interface
Magnetic Isolation Protection: 1.5 kV (built-in)
10/100/1000BaseT(X) Ports (RJ45 connector): 4
LED Indicators
System: Power x 1
Serial: 2 per port (Tx, Rx)
Serial Signals
RS-232: TxD, RxD, RTS, CTS, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
Physical Characteristics
Installation: Wall mounting
Housing: Metal
Dimensions: 220 x 80 x 170 mm (8.66 x 3.15 x 6.69 in)
Weight: Product only: 1.40 kg (0.63 lb)
Declaration
Green Product: RoHS, CRoHS, WEEE
Power Parameters
Input Voltage: 9 to 36 VDC
Power Button:
ON/OFF (rear panel)
Reset button
Environmental Limits
Operating Temperature: -20 to 55°C (-4 to 131°F)
Storage Temperature: -30 to 60°C (-22 to 140°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Shock: IEC 60068-2-27
Standards and Certifications
EMC: EN 55032/35, CISPR 32, FCC Part 15B Class A
Hazardous Locations: IECEx Zone 2
Safety: UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1
Reliability
Alert Tools: Built-in RTC (real-time clock) with lithium battery backup
MTBF
Time: 323,270 hrs
Standards: Telcordia (Bellcore) Standard TR/SR
Warranty
Warranty Period: 3 years
