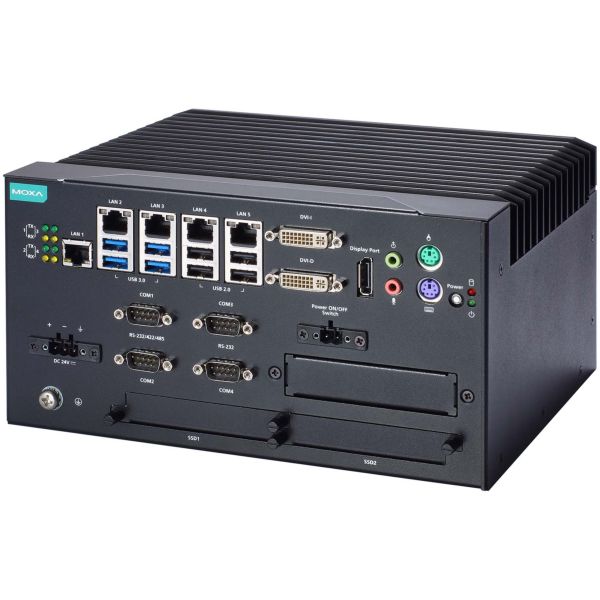

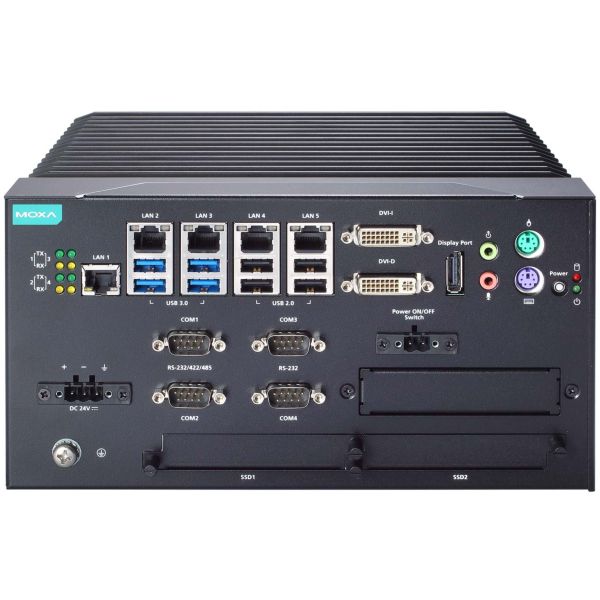

MC-7410-C7-AC MOXA Marine Computer

Features and Benefits

• 6th Gen Intel® Core™ i5/i7 processor
• DDR4 SO-DIMM memory up to 32 GB
• 3 independent displays (1 x DVI-I, 1 x DVI-D, 1 x DisplayPort)
• Various I/O interfaces, including 9 USB ports, 5 LAN ports, and 4 COM ports
• 2 removable 2.5” SSD storage bays
• AC or DC power models available
• Supports Win 10 IoT and Debian 9 operating systems
• Supports Moxa Proactive Monitoring utility for system status monitoring

Introduction

The MC-7400 Series marine computers are powered by the 6th generation Intel® Core™ i5/i7 processor, delivering a full range of I/O connectivity, including NMEA 0183 ports, serial ports, Gigabit Ethernet ports, as well as USB 2.0/3.0 ports and a miniPCI slot for extensions. The MC-7400 is designed to provide outstanding PC performance, bringing a new level of flexibility and control to marine applications.

Specifications

Computer

CPU: Intel® Core™ i7-6822EQ Processor (8M Cache, up to 2.80 GHz)
System Chipset: Intel QM170
Graphics Controller: Intel® HD Graphics 530
System Memory Slot: SODIMM DDR4 slot x 2
Supported OS:
Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA
Linux Debian 9
Note: OS available by CTOS

Storage Slot: 2.5" HDD/SSD slots x 2

Computer Interface

Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 5
Serial Ports: RS-232 ports x 2 (DB9 male)
RS-232/422/485 ports x 2, software selectable (DB9 male)
USB 2.0: USB 2.0 hosts x 5, type-A connectors
USB 3.0: USB 3.0 hosts x 4, type-A connectors
Audio Input/Output: Line in x 1, Line out x 1, 3.5 mm phone jack
Video Input:
DVI-D x 1, 29-pin DVI-D connector (female)
DVI-I x 1, 29-pin DVI-I connector (male)
Video Output: DisplayPort x 1
PS/2: Keyboard PS/2 x 1 + Mouse PS/2 x 1

Relays

Connector: Screw-fastened Euroblock terminal
Contact Current Rating: Resistive load: 2 A @ 30 VDC
Contact Resistance: 50 milli-ohms (max.)
Initial Insulation Resistance: 1000 mega-ohms (min.) @ 500 VDC
Mechanical Endurance: 100,000,000 operations
Minimum Permitted Load: 20 A @ 30 VDC

LED Indicators

System:
Power x 1
Storage x 1
LAN: 2 per port (10/100/1000 Mbps)
Serial: 2 per port (Tx, Rx)

Serial Interface

Baudrate: 50 bps to 115.2 kbps
Connector: DB9 male
Data Bits: 5, 6, 7, 8
Flow Control: ADDC® (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF
Isolation: N/A
Parity: None, Even, Odd, Space, Mark

NMEA Interface:
NMEA 0183: RS-422
Baudrate: 4800 bps
Data Bits: 8
Handshake: None
Optical Isolation Protection: 3 kV
Parity: None
Stop Bits: 1, 1.5, 2

Power Parameters

Power Consumption: 100 W
Power Connector: Terminal block (for DC models)

Reliability

Automatic Reboot Trigger: Built-in WDT

Physical Characteristics

Housing: Metal

Environmental Limits

Operating Temperature: -25 to 55°C (-13 to 131°F)
Storage Temperature (package included): -30 to 60°C (-22 to 140°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

Maritime: IEC 60945
Safety: CE, IEC 62368-1, UL 60950-1
Radio Frequency: FCC
EMC: EN 55032/24
EMI: CISPR 22, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Green Product: RoHS, CRoHS, WEEE

Warranty

Warranty Period: 3 years
