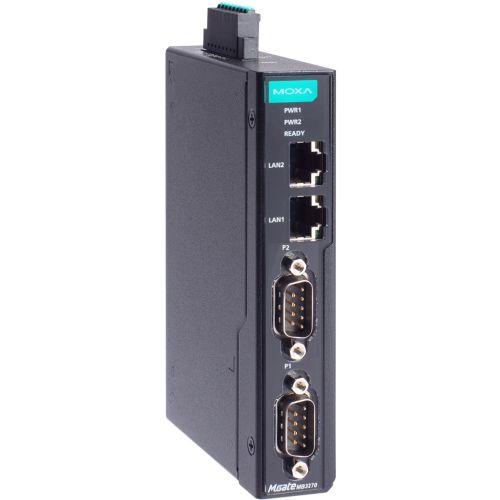

MGate MB3270-G2 MOXA Gateways

MGate MB3270-G2 MOXA

MGate MB3270-G2

Gateway Modbus avanzato con 2 porte seriali (seriale-Ethernet), 2 porte Ethernet RJ45, connettore seriale DB9, temperatura di esercizio -10 ~ 60 °C.

SPEDIZIONE GRATUITA

Quantità':

Prezzo per pezzo

€ 620,31

(IVA esclusa)

€ 756,78 (IVA inclusa)

Brand: MOXA

SKU: 141273

Model: MGate MB3270-G2

MGate MB3270-G2 technical sheet

MGate MB3270-G2 datasheet

MGate MB3270-G2 scheda prodotto

Stampa scheda prodotto

Bisogno di aiuto?

Scrivici
una email

Chiamaci
051 6604005

Scheda Tecnica

Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)	2 (Ethernet cascade or dual subnet configured by software), Auto MDI/MDI-X connection
Magnetic Isolation Protection	1.5 kV (built-in)

Ethernet Software Features
Industrial Protocols	Modbus TCP Client Modbus TCP Server
Configuration Options	Web Console (HTTP/HTTPS) Device Search Utility (DSU) MCC Tool Windows Driver Manager Utility MXview One Software MXconfig Software
Management	ARP, DHCP Client, DNS, HTTPS, ICMP, IPv4/IPv6, SMTP, SMTPS, SNMPv1/v2c/v3, SNTP, TCP/IP, UDP
MIB	MIB-II RFC1213, RFC1317
Time Management	SNTP Client

Security Functions
Authentication	Local database
Encryption	AES-128, AES-256, ECC-256, ECC-384, ECC-521, HMAC, RSA-1024, RSA-2048, RSA-3072, RSA-4096, SHA-256, SHA-384
Security Protocols	SNMPv3, HTTPS (TLS 1.2)

Serial Interface
No. of Ports	2
Connector	1/2/4 x DB9 male
Serial Standards	RS-232/422/485 (software-selectable)
Baudrate	50 bps to 921.6 kbps
Data Bits	7, 8
Parity	None, Even, Odd, Space, Mark
Stop Bits	1, 2
Flow Control	DTR/DSR, RTS Toggle (RS-232 only), RTS/CTS
Pull High/Low Resistor for RS-485	1 kilo-ohm, 150 kilo-ohms (software selectable)
Terminator for RS-485	120 ohms (software selectable)
RS-485 Data Direction Control	ADDC (automatic data direction control)

Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features
Industrial Protocols	Modbus RTU/ASCII Client Modbus RTU/ASCII Server (supported in Agent mode) Proprietary Modbus Serial Client

Modbus (Transparent)
Max. No. of Client Connections	32
Max. No. of Server Connections	32

Modbus RTU/ASCII (Agent)
Mode	Client (Master) Server (Slave) Proprietary Serial (client)
Functions Supported	1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands	128/serial port
No. of Tags	300
Total Tag Size	3072 Bytes

Modbus TCP (Agent)
Mode	Client (Master) Server (Slave)
Max. No. of Client Connections	32
Max. No. of Server Connections	32
Functions Supported	1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands	128
No. of Tags	300
Total Tag Size	3072 Bytes

Power Parameters
Input Voltage	12 to 48 VDC
Input Current	452 mA @ 12 VDC
Power Connector	8-pin terminal block

Relays
Contact Current Rating	Resistive load: 1 A @ 30 VDC

Physical Characteristics
Housing	Metal
IP Rating	IP30
Dimensions (with ears)	25 x 89 x 132 mm (0.98 x 3.50 x 5.19 in)
Dimensions (without DIN-rail mouting kit)	25 x 89 x 129 mm (0.98 x 3.50 x 5.08 in)
Weight	393 g (0.87 lb)

Environmental Limits
Operating Temperature	-10 to 60°C (14 to 140°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications
EMC	EN 61000-6-2/-6-4
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 2 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 2 kV, Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF IEC 61000-4-11
Hazardous Locations	ATEX Class I Division 2 IECEx Note: Certification processes are underway; expected completion by the end of June 2026.
Maritime	DNV Note: Certification process is underway; expected completion by the end of June 2026
Safety	EN 62368-1 UL 62368-1
Vibration	IEC 60068-2-6
Package Drop Test	ISTA 1A

MTBF
Time	2,931,934 hrs
Standards	Telcordia Standard SR-332

Warranty
Warranty Period	5 years
