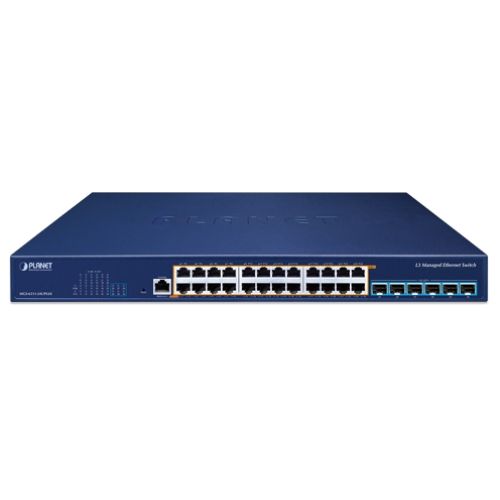

MGS-6311-24UPL6X Planet Managed POE

Features

Physical Ports

• 24 10/100/1000/2500BASE-T ports with IEEE 802.3bt PoE++ injector function (up to 95W per port)
• 6 10GBASE-SR/LR SFP+ slots, backward compatible with 1000/2500BASE-X SFP transceivers
• RJ45 to DB9 console interface for switch basic management and setup

IP Routing Features

• IP routing protocol supports RIPv1/v2, RIPng, OSPFv2/v3, BGP4/BGP6
• IPv4/IPv6 static routing and VRRP (v2/v3) function provide reliable Layer 3 gateway redundancy
• Routing interface provides per VLAN routing mode
• Supports route redistribution

Layer 2 Features

• Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz Gigabit Ethernet standard
• Prevents packet loss flow control
• IEEE 802.3x pause frame flow control in full-duplex mode
• Back pressure flow control in half-duplex mode
• High performance Store-and-Forward architecture, broadcast storm control, port loopback detection
• 32K MAC address table, automatic source address learning and aging
• Supports VLAN
• IEEE 802.1Q tag-based VLAN
• GVRP for dynamic VLAN management
• Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
• Private VLAN Edge (PVE) supported
• GVRP protocol for Management VLAN
• Protocol-based VLAN
• MAC-based VLAN
• IP subnet VLAN
• Supports Link Aggregation
• Maximum 64 trunk groups, up to 8 ports per trunk group
• IEEE 802.3ad LACP (Link Aggregation Control Protocol)
• Cisco ether-channel (static trunk)
• Supports Spanning Tree Protocol
• STP, IEEE 802.1D (Classic Spanning Tree Protocol)
• RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
• MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
• Supports BPDU & root guard, BPDU Filtering and BPDU Forwarding.
• Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
• Provides port mirror (many-to-1)
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)

Quality of Service

• 8 priority queues on all switch ports
• Support for strict priority and WRR (Weighted Round Robin) CoS policies
• Traffic classification
• IEEE 802.1p CoS/ToS
• IPv4/IPv6 DSCP
• Port-based WRR
• Strict priority and WRR CoS policies

Multicast

• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD v1 and v2 snooping
• Querier mode support
• Supports Multicast VLAN Register (MVR)
• IGMP proxy and fast-leave mechanisms are available to optimize multicast forwarding

Security

• IEEE 802.1x port-based network access authentication
• MAC-based network access authentication
• Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
• TACACS+ login users access authentication
• IP-based Access Control List (ACL)
• MAC-based Access Control List
• Supports DHCP snooping
• Supports ARP inspection
• IP Source Guard prevents IP spoofing attacks
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding

Management

• Management IP for IPv4 and IPv6
• Switch Management Interface
• Console/Telnet Command Line Interface
• Web switch management
• SNMP v1, v2c, and v3 switch management
• SSHv2/TLSv1.2 secure access
• BOOTP and DHCP for IP address assignment
• Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
• SNTP (Simple Network Time Protocol) for IPv4 and IPv6
• User privilege levels control
• Syslog server for IPv4 and IPv6
• Supports DDM
• Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
• Supports sFlow
• Supports ULDP
• Supports ULPP (Uplink Protection Protocol)
• Supports ULSM (Uplink State Monitor protocol)
• Supports LLDP/LLDP MED
• Supports DHCP Option82/43/60/61/67
• Supports ping, trace route function for IPv4 and IPv6
• PLANET Smart Discovery Utility for deployment management
• Supports PLANET NMS for centralized deployment and management

Power over Ethernet

• Complies with IEEE 802.3bt Power over Ethernet Plus Plus
• Up to 24 ports of IEEE 802.3bt PoE++ with each offering up to 95 watts (Ports 1-24)
• Supports maximum 720-watt PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters
• PoE management
• Total PoE power budget control
• Per port PoE function enable/disable
• PoE port power feeding priority
• Per PoE port power limitation
• PD classification detection
• PoE schedule
• Intelligent PoE features
• PD alive check
• PoE schedule

Applications

Excellent Solution to Enterprise Security and QoS Switch

The MGS-6311-24UPL6X performs 240 Gigabits per second non-blocking switch fabric, so it can easily provide a local 10Gbps high bandwidth Ethernet network for the backbone of your department. With the six built-in SFP+ ports, the MGS-6311-24UPL6X provides the uplink to the backbone network through the 10G Ethernet LR/SR SFP+ modules. It further improves the network efficiency and protects the network clients by offering the security and QoS features.

ayer 3 VLAN Routing

With the built-in robust Layer 3 traffic routing protocols, the MGS-6311-24UPL6X ensures reliable routing between VLANs and network segments. The routing protocols can be applied via VLAN interface. The MGS-6311-24UPL6X is certainly a cost-effective and ideal solution for enterprises.

High Availability Mesh Networking Solution for Big Data System

Highly flexible, extendable and easy to deploy, the MGS-6311-24UPL6X offers high-throughput optical uplinks with long-distance options up to 120km (module-dependent) and rapid self-recovery (MSTP/ERPS). It is ideal for data centers, service providers and telecoms to build redundant connections and high-bandwidth aggregation for big-data server farms.
