MGS-6320-8HP2X Planet Managed POE

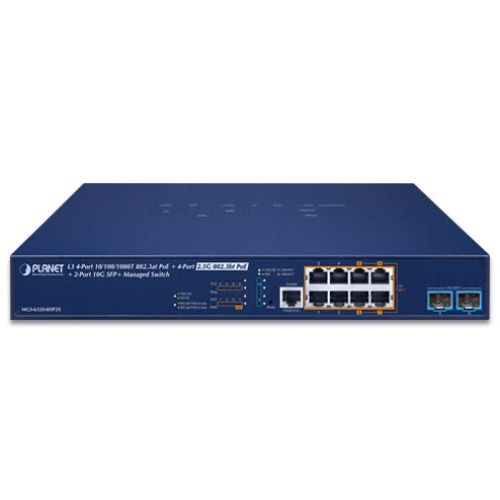

PLANET MGS-6320-8HP2X is a brand-new Layer 3 managed multigigabit switch providing 2.5Gbps data rate and 802.3bt PoE++ over UTP cables, designed for the demand of high-bandwidth required network equipment, such as Wi-Fi 6 802.11ax wireless AP, NAS, workstation and those with 2.5GBASE-T interfaces. It features 4 10/100/1000BASE-T copper ports with 802.3at PoE+ injector function, 4 100/1000/2500BASE-T copper ports with 802.3bt PoE++ injector function, a total PoE power budget of up to 240 watts and 2 extra 1G/2.5G/10GBASE-X SFP+ fiber ports that are flexibly designed to extend the connection distance. With such a favorable data link capability, hardware-based Layer 3 routing performance, Layer 2 and Layer 4 switching engine and user-friendly yet advanced IPv6/IPv4 management interfaces, it helps to accelerate the deployment of the next-generation IoT and wireless network for enterprises and smart cities.



With the built-in robust IPv4/IPv6 Layer 3 traffic routing protocols, the MGS-6320-8HP2X ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 1K routing entries. The MGS-6320-8HP2X is certainly a cost-effective and ideal solution for enterprises.

Providing up to 4 Gigabit PoE+ ports and 4 Gigabit PoE++ ports and in-line power interface, the MGS-6320-8HP2X PoE Managed Switch can easily build a centrally-controlled power network shared by wireless Gigabit AP, IP phone system, or mega-pixel IP camera system group for the enterprises.



The MGS-6320-8HP2X comes with non-blocking design, desktop size and SFP fiber-optic modules, bringing network infrastructure higher flexibility but lower in cost. Providing four 1000BASE-T PoE+ ports in-line power interfaces and four 1000/2500BASE-T PoE++ ports in-line power interfaces and two 10 Gigabit SFP interfaces, the MGS-6320-8HP2X can easily build a Networking Authentication on Wireless LAN Controllers system for the enterprises. For instance, it can work with the Wireless Controller and RADIUS Server to perform comprehensive security for wireless user authentication with powered APs.



4-Port 10/100/1000BASE-T with 36W 802.3at PoE+ injector function (Port-1 to Port-4)

4-Port 10/100/1000/2500BASE-T with 90W 802.3bt PoE++ injector function (Port-5 to Port-8)

2-port 10GBASE-X SFP+, backward compatible with 1000BASE-X and 2500BASE-X SFP transceivers

RJ45 type RS232 console interface for switch basic management



Copper Ports:

4x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X interface with Port-1 to Port-4

4x 10/100/1000/2500BASE-T RJ45 auto-MDI/MDI-X interface with Port-5 to Port-8



SFP/mini-GBIC Slots: 2 x 1G/2.5G/10GBASE-X SFP interfaces with Port-9to Port-10

PoE Injector Port:

4 ports with 802.3at/af PoE injector function with Port-1 to Port-4

4 ports with 802.3bt/at/af PoE injector function with Port-5 to Port-8



Console: 1 x RJ45 serial port (115200, 8, N, 1)

Reset Button:

< 5 sec: System reboot

> 5 sec: Factory default



RAM: 512Mbytes

Flash Memory: 64Mbytes

Dimensions (W x D x H): 330 x 200 x 44.5mm, 1U height

Weight: 2127g

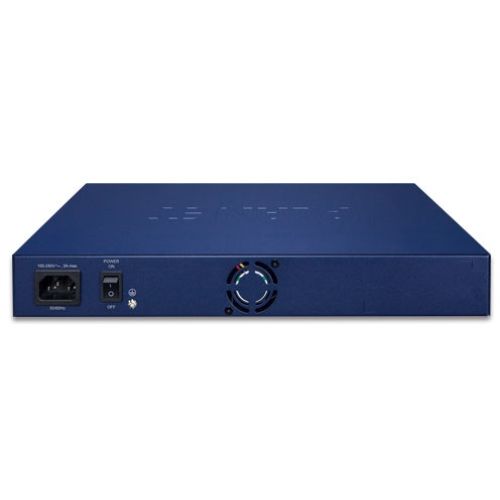

Power Requirements: 100~240V AC, 50/60Hz, 3A max.

Power Consumption: M

ax. 15.48 watts/52.78BTU (Power on without any connection)

Max. 281.6watts/960.25BTU (Full loading with PoE+ function)

ESD Protection: 6KV DC

Surge Protection: 4KV DC

LED:

System:

PWR (Green), SYS (Green), R.O (Green), Ring (Green)

Per 10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 4):

　1000Mbps LNK/ACT (Green)

　10/100Mbps LNK/ACT (Amber)

　802.3at/af PoE-in-Use (Amber)

Per 10/100/1000/2500BASE-T RJ45 Interfaces (Port 5 to Port 8):

　1000/2500Mbps LNK/ACT (Green)

　10/100Mbps LNK/ACT (Amber)

　802.3bt PoE-in-Use (Green)

　802.3at/af PoE-in-Use (Amber)

Per 1G/2.5G/10G Mbps SFP Interfaces (Port 9 to Port 10):

　1G/2.5G LNK/ACT (Green)

　10G LNK/ACT (Amber)
