MGS-6320-8T2X Planet Managed

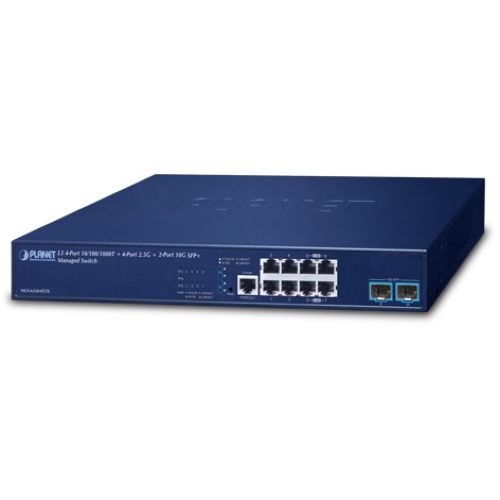

PLANET MGS-6320-8T2X is a fully-managed multigigabit switch designed for the demand of high-bandwidth required network equipment, such as Wi-Fi 6 802.11ax wireless AP, NAS, workstation and those with 2.5GBASE-T interfaces. It features 4 10/100/1000BASE-T copper ports, 4 100/1000/2500BASE-T copper ports and 2 1G/2.5G/10GBASE-X SFP+ fiber ports are flexibly designed to extend the connection distance. With such a favorable data link capability, hardware-based Layer 3 routing performance, Layer 2 and Layer 4 switching engine and user-friendly yet advanced IPv6/IPv4 management interfaces, it helps to accelerate the deployment of the next-generation IoT and wireless network for enterprises and smart cities.



With the built-in robust IPv4/IPv6 Layer 3 traffic routing protocols, the MGS-6320-8T2X ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 1K routing entries. The MGS-6320-8T2X is certainly a cost-effective and ideal solution for enterprises.



The MGS-6320-8T2Xcomes with non-blocking design, desktop size and SFP fiber-optic modules, bringing network infrastructure higher flexibility but lower in cost. Providing four 2500BASE-T ports and two 10 Gigabit SFP+ interfaces, the MGS-6320-8T2X can easily build a Networking Authentication on Wireless LAN Controllers system for the enterprises. For instance, it can work with the Wireless Controller and RADIUS Server to perform comprehensive security for wireless user authentication with powered APs.



4-Port 10/100/1000BASE-T Gigabit Ethernet RJ45 (Port 1 to port 4)

4-Port 10/100/1000/2500BASE-T Gigabit Ethernet RJ45 (Port 5 to port 8)

2-port 10GBASE-X SFP+, backward compatible with 1000BASE-X and 2500BASE-X SFP transceivers (Port 9 to port 10)

RJ45 type RS232 console interface for switch basic management



IP dynamic routing protocol supports RIPv2, OSPFv2 and OSPFv3

IPv4/IPv6 hardware static routing

Routing interface provides per VLAN routing mode

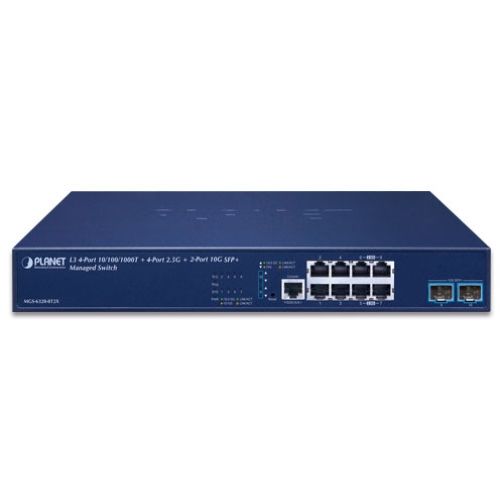

Copper Ports:

4x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X interface with Port-1 to Port-4

4x 10/100/1000/2500BASE-T RJ45 auto-MDI/MDI-X interface with Port-5 to Port-8

SFP+ Slots: 2 x 1G/2.5G/10GBASE-X SFP interfaces with Port-9 to Port-10

Console: 1 x RJ45-to-DB9, RS232 serial port (115200, 8, N, 1)

Reset Button:

< 5 sec: System reboot

> 5 sec: Factory default

RAM: 512Mbytes

Flash Memory: 64Mbytes

Dimensions (W x D x H): 330 x 150 x 44.5mm, 1U height

Weight: 1436g

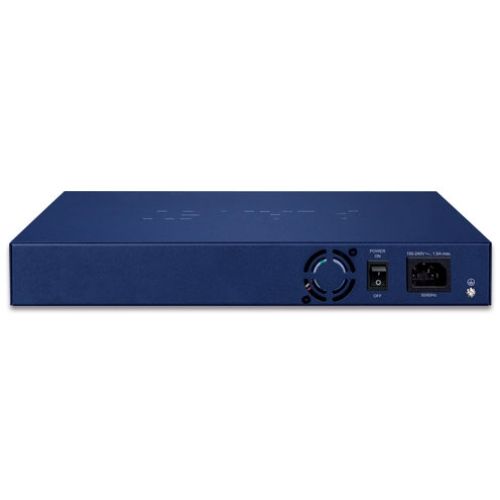

Power Requirements: 100~240V AC, 50/60Hz, 1.5A max.

Power Consumption:

Max. 9.9 watts/33.76BTU (Power on without any connection)

Max. 18.48 watts/63.02BTU (Full loading)

ESD Protection: 6KV DC

Surge Protection: 4KV DC

LED:

System:

　PWR (Green), SYS (Green), R.O (Green), Ring (Green)

Per 10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 4):

　1000 LNK/ACT (Green)

　10/100Mbps LNK/ACT (Amber)

Per 10/100/1000/2500BASE-T RJ45 Interfaces (Port 5 to Port 8):

　1000/2500Mbps LNK/ACT (Green)

　10/100Mbps LNK/ACT (Amber)

Per SFP+ Interfaces (Port 9 to Port 10):

　1G/2.5G LNK/ACT (Green)

　10G LNK/ACT (Amber)

Switching Specifications

Switch Architecture Store-and-Forward

Switch Fabric 68Gbps/non-blocking

Throughput 50.59Mpps@ 64Bytes packet

Address Table 8K entries, automatic source address learning and aging

Shared Data Buffer 4.1Mbits

Flow Control IEEE 802.3x pause frame for full-duplex

Back pressure for half-duplex

Jumbo Frame 10Kbytes
