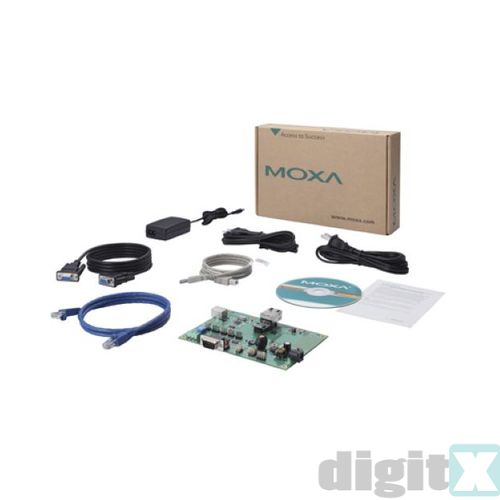

MiiNePort E1-SDK MOXA embedded device servers

MiiNePort E1-SDK

Software Development Kit for MiiNePort E1 Series, with module

SPEDIZIONE GRATUITA

Quantità':

Prezzo per pezzo

€ 309,89

(IVA esclusa)

€ 378,07 (IVA inclusa)

Articoli	Prezzo (IVA esc.)
1+ pz.	€ 309,89
3+ pz.	€ 303,692

Disponibilità: 10 gg lav

Brand: MOXA

SKU: 92574

Model: MiiNePort E1-SDK

MiiNePort E1-SDK datasheet

Stampa scheda prodotto

Bisogno di aiuto?

Scrivici
una email

Chiamaci
051 6604005

Certificati

Scheda Tecnica

Features and Benefits

Eclipse-based integrated software development tool MiiNePort embedded serial device servers
Source level debugger
Various serial-to-Ethernet sample codes
Mass production tool for easy firmware upload
Support Real COM mode operation functions

Introduction

MiiNePort E1-SDK is a powerful and versatile software suite for proprietary firmware development on the MiiNePort E1. To expedite time-to-market, the MiiNePort E1-SDK provides comprehensive tools for development, testing, and mass-production. The software development kit includes:

MiiNePort-IDE - integrated platform for development of serial-to-Ethernet firmware.
PComm Lite - software application for testing serial and TCP/IP communication/transmission.
Search Utility - search-and-update firmware utility for massproduction of modules and serial devices through simultaneous multiple-unit configurations.

Supported Hardware

MiiNePort E1, MiiNePort E1-H, MiiNePort E1-T, MiiNePort E1-H-T

Software

OS: eCos
Software Development Tool: MiiNePort-IDE
Windows Real COM Drivers: Windows 98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64, Embedded CE 5.0/6.0, XP Embedded
Fixed TTY Drivers: SCO Unix, SCO OpenServer, UnixWare 7, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x
Linux Real TTY Drivers: Linux kernel 2.4.x, 2.6.x, 3.x
Operation Modes: Real COM, Ethernet Modem
Wizard: Project/SNMP/CLI(Telnet)/SCM/User Configuration
Serial/Ethernet Test Tool: PComm Lite (Serial/TCP Server/TCP Client)
Search/Upload Firmware Utility: NPort Search Utility
Serial to Ethernet Sample Source Code (Integrated in MiiNePort-IDE):
     TCP Server Echo
     TCP Server to Serial (Single connection)
     TCP Server to Serial (Multi-connection)
     TCP Client Echo
     TCP Client to Serial (Startup)
     TCP Client to Serial (Any character)
     TCP Client to Serial (Designed destination TCP/IP port from serial)
     UDP echo
     UDP to serial

Documents

API Function Helper, User's Manual, Getting Started, Schematic Design Guide, Quick Installation Guide
