MPC-2120-E2-T-W7E

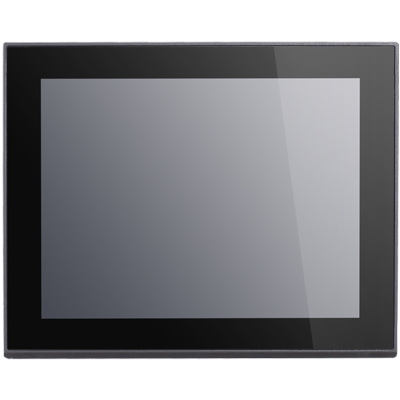

12-inches Industrial Panel Computer, E3826 CPU, 4GB RAM, 32GB CFast, W7E OS, 1000 nits, 16:9 aspect ratio, IP66 in front, touch.
Features and Benefits
- 12-inch panel computer
- Intel® Atom Processor: E3845 1.91 GHz or E3826 1.46 GHz
- -40 to 70°C wide-temperature design, no fan or heater
- 1000-nit sunlight-readable LCD
- Class 1 Division 2, ATEX Zone 2, and IECEx certified
- Wide-range 10 to 36 VDC power input
- DNV GL certified for marine applications
Introduction
The MPC-2120 12-inch panel computers with E3800 Series Intel® Atom™ processor deliver a reliable and durable platform of wide versatility for use in industrial environments. With two software selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-2120 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.
The MPC-2120 Series panel computers are designed with a wide, -40 to 70°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation, making this one of the most reliable industrial platforms available for harsh, hot, outdoor environments like oil and gas fields and drilling platforms. The MPC-2120 also features a 1000-nit LCD panel offering a sunlight-readable, projected-capacitive, multi-touch screen, providing an excellent user experience for outdoor applications.
Specifications
Computer
CPU: Intel Atom® Processor E3826 (1M Cache, 1.46 GHz)
Graphics Controller: Intel® HD Graphics
System Memory Pre-installed: 4 GB DDR3L
System Memory Slot: SODIMM DDR3/DDR3L slot x 1
Pre-installed OS: Windows Embedded Standard 7 (WS7P) 64-bit
Supported OS: Windows 7 Pro for Embedded Systems
Windows Embedded Standard 7 (WS7P) 64-bit
Windows 10 Pro 64-bit
Windows 10 Embedded IOT Ent 2016 LTSB Entry 64-bit
Storage Slot: CFast slot x 1
SD slots x 1, SD 3.0 (SDHC/SDXC) socket
Storage Pre-installed: 32 GB CFast Card
Computer Interface
Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)
USB 2.0: USB 2.0 hosts x 2, type-A connectors
Digital Input: DIs x 4
Digital Output: DOs x 4
LED Indicators
System: Power x 1
LAN: 2 per port (10/100/1000 Mbps)
Display
Active Display Area: 245.76 (H) x 184.32 (V) mm
Aspect Ratio: 4:3
Contrast Ratio: 700:1
Light Intensity (Brightness): 1000 cd/m2
Max. No. of Colors: 16.2M (8-bit/color)
Panel Size: 12-inch viewable image
Panel Type: TN
Pixel Pitch (RGB): 0.240 (H) x 0.240 (V) mm
Pixels: 1024 x 768
Response Time: 5 ms (gray to gray)
Viewing Angles: 160°/140°
Touch Function
Touch Type: Capacitive Touch (PCAP)
Touch Support Points: 4 points
Glove Support: Yes
Serial Interface
Baudrate: 50 bps to 115.2 kbps
Data Bits: 5, 6, 7, 8
Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Parity: None, Even, Odd, Space, Mark
Stop Bits: 1, 1.5, 2
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
Input Voltage: 10 to 36 VDC
Physical Characteristics
Housing: Metal
IP Rating: IP66
Dimensions: 306 x 245 x 64 mm (12 x 9.6 x 2.5 in)
Weight: 2,640 g (5.82 lb)
Environmental Limits
Operating Temperature: -40 to 70°C (-40 to 158°F)
Storage Temperature (package included): -40 to 70°C (-40 to 158°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Environmental Testing: IEC 60068-2-1, DNVGL-CG-0339
IEC 60068-2-2, DNVGL-CG-0339
IEC 60068-2-2, IEC 60945
IEC 60068-2-30, IEC 60945
Hazardous Locations: ATEX, Class I Division 2, IECEx
Maritime: DNV-GL
Mechanical Protection: Rating IEC 60529, IP code
Safety: EN 60950-1, IEC 60950-1, UL 60950-1
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6
IEC 60068-2-6, IEC 60945
IEC 60068-2-64, DNVGL-CG-0339
Declaration
Green Product: RoHS, CRoHS, WEEE
Warranty
Warranty Period: LCD: 1 year
System: 3 years
