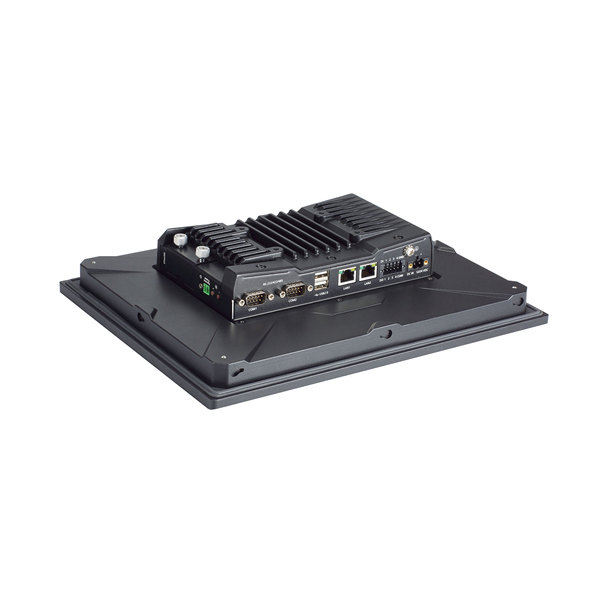

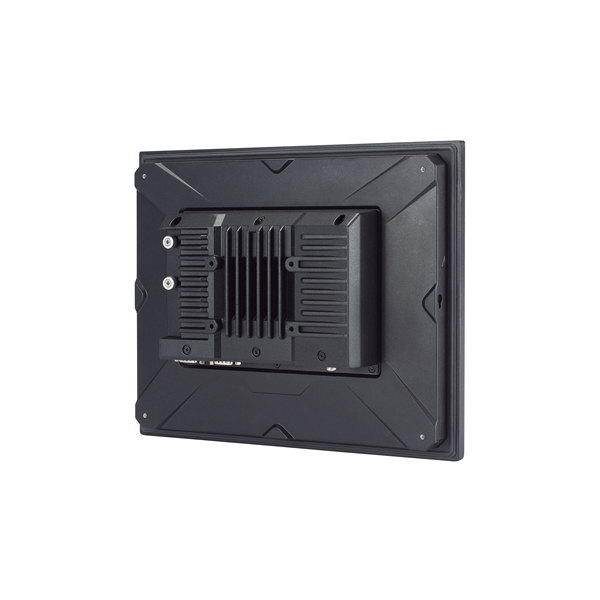

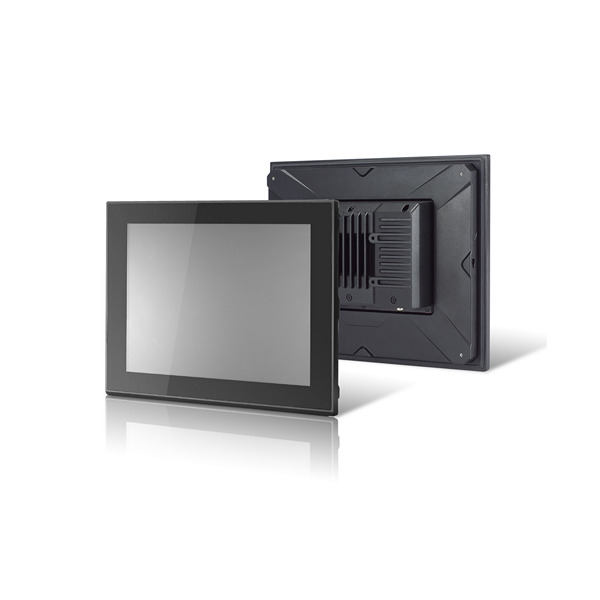

MPC-2120-E4-LB-T MOXA Industrial Panel Computers

MPC-2120-E4-LB-T MOXA

MPC-2120-E4-LB-T

12-inches Industrial Panel Computer,E3845 CPU, 4GB RAM, 500 nits, 16:9 aspect ratio, IP66 in front, touch

Quantità':

Prezzo per pezzo

€ 2.764,77

(IVA esclusa)

€ 3.373,02 (IVA inclusa)

Articoli Prezzo (IVA esc.)
1+ pz.€ 2.764,77
5+ pz. € 2.681,833
10+ pz. € 2.626,535

Prezzo di 1 pz. iva (22%) inclusa: € 3.373,02

Disponibilità: 20 gg lav

Brand: MOXA

SKU: 110386

Model: MPC-2120-E4-LB-T

Bisogno di aiuto?


Features and Benefits

  •  12-inch panel computer
  •  Intel Atom® processor: E3845 1.91 GHz or E3826 1.46 GHz
  •  -40 to 70°C wide-temperature design, no fan or heater
  •  1000-nit sunlight-readable LCD
  •  Class 1 Division 2, ATEX Zone 2, and IECEx certified
  •  Wide-range 10 to 36 VDC power input
  •  DNV GL certified for marine applications

Introduction

The MPC-2120 12-inch panel computers with E3800 Series Intel Atom® processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two software selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-2120 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.

The MPC-2120 Series panel computers are designed with a wide, -40 to 70°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation, making this one of the most reliable industrial platforms available for harsh, hot, outdoor environments like oil and gas fields and drilling platforms. The MPC-2120 also features a 1000-nit LCD panel offering a sunlight-readable, projected-capacitive, multi-touch screen, providing an excellent user experience for outdoor applications.

Specifications

Computer

CPU: Intel Atom® Processor E3845 (2M Cache, 1.91 GHz)
Graphics Controller: Intel® HD Graphics
System Memory Pre-installed: 4 GB DDR3L
System Memory Slot: SODIMM DDR3/DDR3L slot x 1
Pre-installed OS: OS is not pre-installed
Supported OS:
Windows 10 Pro 64-bit
Windows 10 Embedded IoT Ent 2016 LTSB Entry 64-bit
Windows 7 Pro for Embedded Systems
Windows Embedded Standard 7 (WS7P) 64-bit
Linux Debian 9

Storage Slot:
CFast slot x 1
SD slots x 1, SD 3.0 (SDHC/SDXC) socket

Computer Interface

Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)
USB 2.0: USB 2.0 hosts x 2, type-A connectors
Digital Input: DIs x 4
Digital Output: DOs x 4

LED Indicators

System: Power x 1
LAN: 2 per port (10/100/1000 Mbps)

Display

Light Intensity (Brightness): 500 cd/m2
Active Display Area: 245.76 (H) x 184.32 (V) mm
Aspect Ratio: 4:3
Contrast Ratio: 700:1
Max. No. of Colors: 16.2M (8-bit/color)
Panel Size: 12-inch viewable image
Panel Type: TN
Pixel Pitch (RGB): 0.240 (H) x 0.240 (V) mm
Pixels: 1024 x 768
Response Time: 5 ms (gray to gray)
Viewing Angles: 160°/140°

Touch Function

Touch Type: Capacitive Touch (PCAP)
Touch Support Points: 4 points
Glove Support: Yes

Serial Interface

Baudrate: 50 bps to 115.2 kbps
Data Bits: 5, 6, 7, 8
Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Parity: None, Even, Odd, Space, Mark
Stop Bits: 1, 1.5, 2

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Power Parameters

Input Voltage: 10 to 36 VDC
Power Consumption: 40 W (max.)

Physical Characteristics

Housing: Metal
IP Rating:
IP66, front
IP20, rear

Dimensions: 306 x 245 x 64 mm (12 x 9.6 x 2.5 in)
Weight: 2,640 g (5.82 lb)

Environmental Limits

Operating Temperature: -40 to 70°C (-40 to 158°F)
Storage Temperature (package included): -40 to 70°C (-40 to 158°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Environmental Testing:
IEC 60068-2-1, DNVGL-CG-0339
IEC 60068-2-2, DNVGL-CG-0339
IEC 60068-2-2, IEC 60945
IEC 60068-2-30, IEC 60945

Hazardous Locations: ATEX, Class I Division 2, IECEx
Maritime: DNV-GL
Mechanical Protection Rating: IEC 60529, IP code
Safety: EN 60950-1, IEC 60950-1, UL 60950-1
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6, IEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNVGL-CG-0339

Declaration

Green Product: RoHS, CRoHS, WEEE

Warranty

Warranty Period:
LCD: 1 year
System: 3 years

Disclaimer
