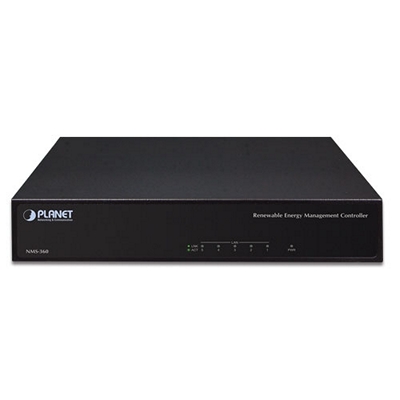

NMS-360 Planet Network Management Controller

NMS-360 Planet

NMS-360

Renewable Energy Management Controller

Quantità':

Prezzo per pezzo

€ 819,72

(IVA esclusa)

€ 1.000,06 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 1.000,06

Disponibilità: 10 gg lav

Brand: PLANET

SKU: 116068

Model: NMS-360

Bisogno di aiuto?


 Intelligent Renewable Energy Management Controller

PLANET NMS-360 Renewable Energy Management Controller can automatically detect up to 512 remote devices powered by PLANET BSP-360 Industrial Renewable Power Unit in ways that solar PV, battery and PoE port usage are recorded. Besides, traffic logs that are compliant with SNMP, MQTT Protocol and PLANET Smart Discovery utility are managed. It thus enables administrator to centrally manage a network of up to 512 nodes from a central office, greatly boosting network and power management efficiency.  Moreover, the NMS-360 can support up to 2,048 PLANET IP cameras to do snapshots through the ONVIF Protocol.

Applications

Economical Central Energy Management Solution for SMBs

PLANET NMS-360 Renewable Energy Management Controller allows users to remotely monitor the statuses of the BSP-360-powered devices in real time, including green power status, average power usage, instant PoE usage, and so on. Through the remote web management, the administrator at the headquarters is able to monitor and control those remote powered devices powered by the BSP-360.
The BSP-360’s built-in four 802.3at/802.3af PoE ports allow the administrator to flexibly install PoE wireless APs in remote areas, without worrying about locating extra electric outlets. When functioning with a pair of the wireless transmission units, the BSP-360 Renewable Energy PoE Switch/Router can be efficiently managed from a remote control center.

Features and Benefits

  • Industrial-grade Physical Hardware
  • 5 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
  • RJ45 type console interface for basic management
  • 2 USB 3.0 ports for configuration backup and restoration
  • Desktop design for easy placement

Network Management Characteristics

  • Built-in DHCP Server
  • SSL secure access
  • Web-based GUI management interface
  • SNMP v1, v2c, and v3 management
  • Supports PLANET DDNS/Easy DDNS

Specifications

Physical Specifications

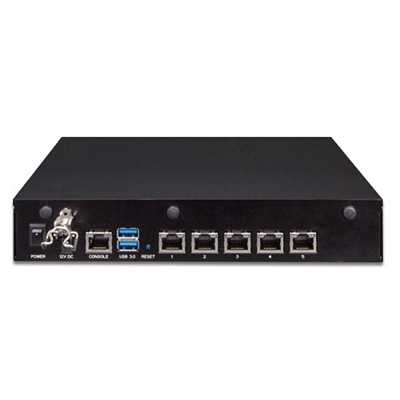

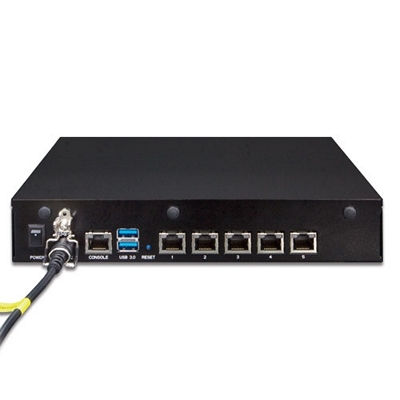

I/O Interface Storage: Five 10/100/1000BASE-T RJ45 ports with auto-MDI/MDI-X
2 USB 3.0 ports (They cannot be used at the same time.)
1 RS232-to-RJ45 console port (115200, 8, N, 1)
1 DC jack power input
1 power switch
1 reset button
8GB EMMC5.1, 15nm/2 eMLC
Dimensions (W x D x H): 232 x 153 x 44 mm
Weight: 1.15 kg
Enclosure: Metal
Power Requirements: 60W adapter 12V 5A with DC jack
AC 100~240V, 3~1.5A, 60~50Hz.

Environment & Certification

Temperature: Operating: 0 ~ 40 degrees C
Storage: -20 ~ 75 degrees C
Humidity: 10 ~ 85% relative humidity (non-condensing)
MTBF (Hours): 120

Network Management

Number of Managed Devices: 512
Number of IP cameras: 2,05
Dashboard: Providing the at-a-glance view of system, power, traffic, and device event statuses
Setup Wizard: Easy-to-use step-by-step guidance
Node Discovery: Management is carried out once a BSP-360-powered device is detected.
App-like Device Viewing: App-like devices that are compliant with SNMP, MQTT, and Smart Discovery
Event Table: The status of system can be reported via event alarm
Alarm System: E-mail alerts for the administrator via the SMTP server
Device Provisioning: Enabling BSP-360 to be configured and upgraded at the same time
Site Map: Real-time site map of BSP-360 and IP cams on the user-defined map to optimize
energy deployment
Remote PoE Control: Real-time remote PoE on/off to reboot connected devices
User Control: Allowing on-demand account creation and user-defined access policy
Scalability: Free system upgrade and BSP-360 firmware bulk upgrade capability
Maximum Scalability: 1 site map, 512 nodes, 2048 managed IP cameras.
Backup/Restoration/Read: Provides system and profile backup/restoration/read raw data from USB
User Account Management: Supports on-demand account creation per user-defined access
policy

Network Services

Network: DDNS
Supports PLANET DDNS/Easy DDNS

DHCP
Built-in DHCP Server for auto IP assignment to APs

Management
SSL; Web browser (Chrome is recommended);
SNMP v1, v2c, v3

Discovery
Supports SNMP, ONVIF and PLANET Smart Discovery
Maintenance: Backup
System backup and restore to local or USB HDD

Reboot
Provides system reboot manually or automatically per power schedule

Diagnostic
Provides IPv4/IPv6 ping and trace route

Standards Conformance

Regulatory Compliance: CE, FCC
Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow control and back pressure
IEEE 802.3z Flow control with Rx thresholds and Tx pause frames
IEEE 1588 protocol and IEEE 802.1AS implementation
IEEE 802.3az (EEE)
