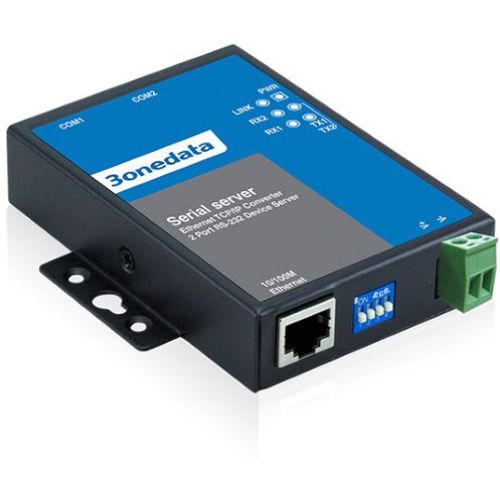

NP302T-2D(RS-485), Serial Device Server, 2 ports RS485/422+1 port 10/100Base-T(X), single power supply 12-48VDC, wall-mounting
NP302T-2D(RS-485)
Serial Device Server, 2 ports RS485/422+1 port 10/100Base-T(X), single power supply 12-48VDC, wall-mounting
SPEDIZIONE GRATUITA
Introduction
NP302T series are the serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This series include 2 types of products and provide 2 isolated RS-232 or RS-485/422 to 1 100M Ethernet copper port. It adopts wall mounting to meet the requirements of different application scenes.
Serial device server supports multiple network protocols, such as TCP, UDP, TELNET, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast operating modes and TELNET, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
DIP switch can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.
Features
- Support 10/100Base-T(X) self-adaptive Ethernet interface
- Support 300bps-115200bps line speed and non-blocking communication
- Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes
- Support across gateway and routing communication
- Support multiple hosts polling mode, which allows multiple hosts to access the same serial port
- Support delimiter matching communication, achieving various demands for serial port packaging
- Support FIFO, compatible with various old type terminal devices
- Support IP address and MAC address filtering, which can easily achieve accurate access control
- Support classification of user management to realize humanized permission management
- Support serial port status and parameters monitoring, ensuring the communication status be clear at a glance
- Support RTS/CTS, DTR/DSR and XON/XOFF flow control
- Compatible with various virtual serial port management software
- Support virtual serial port drive access mode and automatic connection recovery after network interruption
- Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation
- Support standard TCP/IP SOCKET application access
- TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously
- UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously
- Support Windows configuration tool, TELNET, WEB and other configuration forms
Specifications
Ethernet
Standard: 10Base-T, 100Base-TX
Protocol: TCP, UDP, ARP, HTTP, TELNET, ICMP, DHCP, DNS
Rate: 10/100M automatic flow control, MDI/MDI-X autotunning
Interface quantity: 1
Interface form: RJ45
Duplex mode: full/half duplex mode self-adaption
Operating mode: 4 sessions, support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang and UDP Multicast operating modes
Serial Port
Standard: RS-485, RS-422
Quantity of serial port: 2 RS-485/422 serial port
RS-232 signal: RXD, TXD, DTR, GND, DSR, RTS, CTS, DCD
RS-485 signal: D+, D-, GND
RS-422 signal: T+, T-, GND, R+, R-
Baud rate: 300-115200bps
Data bit: 5bit, 6bit, 7bit, 8bit
Parity bit: None, Even, Odd, Space, Mark
Stop bit: 1bit, 2bit
Interface form: isolated RS-485/422, adopt 10 pins 5.08mm pitch terminal blocks
Flow control: RTS/CTS, DTR/DSR, XON/XOFF
Load capacity: RS-485/422 end supports 32 points polling (customizable 128 points)
Pull high/low resistor for RS-485: 4.7kΩ
Configuration
WEB configuration management, TELNET configuration, Windows configuration tool
Security
Classification of User Permissions, IP address filtering, MAC address filtering
Indicator
Power supply indicator, Ethernet port indicator, serial port indicator
Power Requirement
9~48VDC, 2 pins 5.08mm pitch terminal blocks
Power Consumption
No-load (@24VDC): 1.01W
Full-load (@24VDC): 1.03W
Environmental Limit
Operating temperature range: -40~75℃
Storage temperature range: -40~85℃
Relative humidity: 5%～95%（no condensation）
Physical Characteristic
Housing: IP40 protection, metal
Installation: wall mounting
Dimension (W x H x D): 69mm×22mm×100mm
Weight: ≤240g
Industrial Standard
IEC 61000-4-2 (ESD, Electro-static Discharge) ，Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS
Warranty
3 years
