NP318T-8D(3IN1) 3ONEDATA External Device Servers

NP318T-8D(3IN1) 3ONEDATA

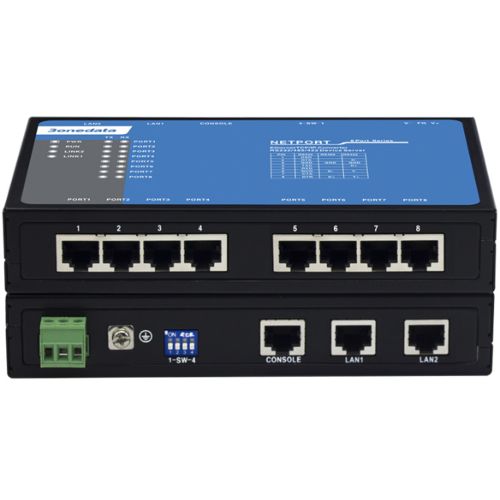

NP318T-8D(3IN1)

Ethernet Converter with 8 port RS232/485/422(RJ-45)+2 port 10/100Base-T(X)(dual IPs and MACs), single power supply 12-48VDC, wall-mounting

Clicca per maggiori dettagli

Q.tà':

Articoli Prezzo (IVA esc.)
1+ pz.€ 323,67

Prezzo di 1 pz. iva (22%) inclusa: € 394,88

Disponibilità: 20 gg lav

Brand: 3ONEDATA

SKU: 119586

Model: NP318T-8D(3IN1)

 Introduction

NP318T series are the serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This series include 2 types of products and provide 8 RS-485/422 or 3IN1 serial port to 2 100M Ethernet copper port. Thereinto, RS-485/422 supports electromagnetic isolation of serial port. It adopts wall/desktop mounting to meet the requirements of different application scenes.


Features and Benefits

  • Support 2 10/100Base-T(X) self-adaptive Ethernet interfaces, which provide double IP and MAC addresses to meet the requirements of network management or backup
  • Support 300bps-115200bps line speed and non-blocking communication
  • Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes
  • Support across gateway and routing communication
  • Support multiple hosts polling mode, which allows multiple hosts to access the same serial port
  • Support delimiter matching communication, achieving various demands for serial port packaging
  • Support FIFO, compatible with various old type terminal devices
  • Support IP address and MAC address filtering, which can easily achieve accurate access control
  • Support classification of user management to realize humanized permission management
  • Support serial port status and parameters monitoring, ensuring the communication status be clear at a glance
  • Support RTS/CTS, DTR/DSR and XON/XOFF flow control
  • Support SNMP network management
  • Compatible with various virtual serial port management software
  • Support virtual serial port drive access mode and automatic connection recovery after network interruption
  • Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation
  • Support standard TCP/IP SOCKET application access
  • TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously
  • UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously
  • Support Windows configuration tool, TELNET, WEB and other configuration forms


Specifications

Ethernet

Standard: 10Base-T, 100Base-TX
Protocol: TCP, UDP, ARP, HTTP, TELNET, SNMP, ICMP, DHCP, DNS
Rate: 10/100M automatic flow control, MDI/MDI-X autotunning
Interface quantity: 2
Interface form: RJ45
Duplex mode: full/half duplex mode self-adaption
Operating mode: 4 sessions, support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang and UDP Multicast operating modes


Serial Port

Standard: EIA RS-232C, RS-485, RS-422
Quantity of serial port: 8 RS-485/422 or 3IN1 serial port
RS-232 signal: DSR, RTS, GND, TXD, RXD, DCD, CTS, DTR
RS-485 signal: D+, D-, GND
RS-422 signal: T+, T-, GND, R+, RBaud rate: 300-115200bps
Data bit: 5bit, 6bit, 7bit, 8bit
Parity bit: None, Even, Odd, Space, Mark
Stop bit: 1bit, 2bit
Interface form: RS-485/422 serial port with isolation, adopt 5 pins 5.08mm pitch terminal blocks
 3IN1 serial port, adopt RJ45
Flow control: RTS/CTS, DTR/DSR, XON/XOFF
Direction control: RS-485 direction adopts data flow automatic control technology
Load capacity: RS-485/422 end supports 32 points polling (customizable 128 points)
Pull high/low resistor for RS-485: 4.7kΩ
Electromagnetic isolation strength: RS-485/422 serial port (terminal block), 3KVDC/2KVrms


Configuration

WEB configuration management, TELNET configuration, Windows configuration tool


Security

Classification of User Permissions, IP address filtering, MAC address filtering, WEB console, TELNET console


Indicator

Power supply indicator, running indicator, Ethernet port indicator, serial port indicator


Power Requirement

12~48VDC, 3-pin 5.08mm pitch terminal blocks Power supply nonpolarity
