NPort 5150AI-M12-CT MOXA External Device Servers

NPort 5150AI-M12-CT MOXA

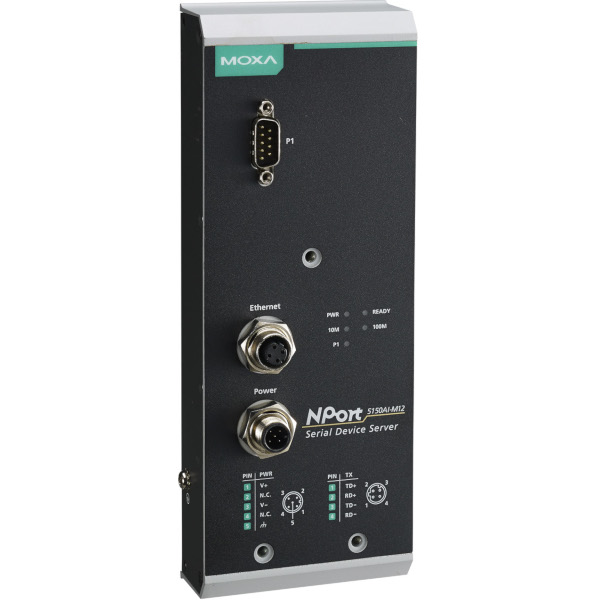

NPort 5150AI-M12-CT

1-port 3 in 1 Device Server w/ M12 Connector (Ethernet, power input), -25° to 55° - Conformal Coating

Clicca per maggiori dettagli

Q.tà':

Articoli Prezzo (IVA esc.)
1+ pz.€ 864,90

Prezzo di 1 pz. iva (22%) inclusa: € 1.055,18

Disponibilità: 10 gg lav

  >> I tempi protrebbero essere piĆ¹ lunghi da quelli indicati <<

Brand: MOXA

SKU: 92581

Model: NPort 5150AI-M12-CT

Prodotti Correlati

MOXA

mini DB9 Female to Terminal Block

1+ pezzi:  € 9,52

MOXA

License expansion of MXview industrial ...

1+ pezzi:  € 216,78

Features and Benefits

  • Speedy 3-step web-based configuration
  • COM port grouping and UDP multicast applications
  • Real COM/TTY drivers for Windows and Linux
  • Standard TCP/IP interface and versatile TCP and UDP operation modes
  • Compliant with EN 50121-4 and essential sections of EN 50155
  • M12 connector and IP40 metal housing
  • 2 kV isolation for serial signals

Introduction

The NPort 5000AI-M12 serial device servers are designed to make serial devices network-ready in an instant, and provides direct access to serial devices from anywhere on the network. Moreover, the NPort 5000AI-M12 is compliant with EN 50121-4 and essential sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration,  making them suitable for rolling stock and wayside applications where high levels of vibration exist in the operating environment. The NPort 5000AI-M12’s 3-step web-based configuration tool is straightforward and user-friendly. The NPort 5000AI-M12’s web console guides users through 3 simple configuration steps that are necessary to activate the serial-to-Ethernet application. With this speedy 3-step web-based configuration, a user only needs to spend an average of 30 seconds to complete the NPort settings and enable the application, saving a great amount of time and effort. NPort 5000AI-M12 device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP manager, an e-mail alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a password change.

Ethernet Interface

Number of Ports: 1
Speed: 10/100 Mbps, auto MDI/MDIX
Connector: M12

Serial Interface

Number of Ports: 1, 2, 4
Serial Standards: RS-232/422/485
Connector: DB9 male
Serial Line Protection: 15 kV ESD protection for all signals
RS-485 Data Direction Control: ADDC® (automatic data direction control)

Serial Communication Parameters

Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
Baudrate: 50 bps to 921.6 kbps

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Software

Network Protocols: ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2, LLDP
Configuration Options: Web Console (with new Quick Setup), Telnet Console, Windows Utility
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers: SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x, 3.x

Physical Characteristics

Housing: Metal, IP40 protection
Weight: 686 g
Dimensions: 80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in)

Environmental Limits

Operating Temperature:
     Standard Models: -25 to 55°C (-13 to 131°F)
     Wide Temp. Models: -40 to 75°C (-40 to 167°F)
     Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 2000 m

Power Requirements

Input Voltage: 12 to 48 VDC
Note: Compliant with EN 50155 on 24/48 VDC
Power Consumption:
     NPort 5150AI-M12: 310mA @12V
     NPort 5150AI-M12-CT: 310mA @12V
     NPort 5150AI-M12-T: 310mA @12V
     NPort 5250AI-M12: 360mA @12V
     NPort 5250AI-M12-CT: 360mA @12V
     NPort 5250AI-M12-T: 360mA @12V
     NPort 5450AI-M12: 440mA @12V
     NPort 5450AI-M12-CT: 44
Connector: M12

Standards and Certifications

Safety: UL 60950-1, EN 60950-1
EMC: CE, FCC
EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS: EN 55024
Rail Traffic: EN 50155, EN 50121-4
Vibration: IEC 60068-2-6

Reliability

Alert Tools: Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger: Built-in WDT (watchdog timer)
MTBF (mean time between failures):
     NPort 5150AI-M12: 789,341 hrs
     NPort 5250AI-M12: 639,622 hrs
     NPort 5450AI-M12: 467,777 hrs

Warranty

Warranty Period: 5 years
