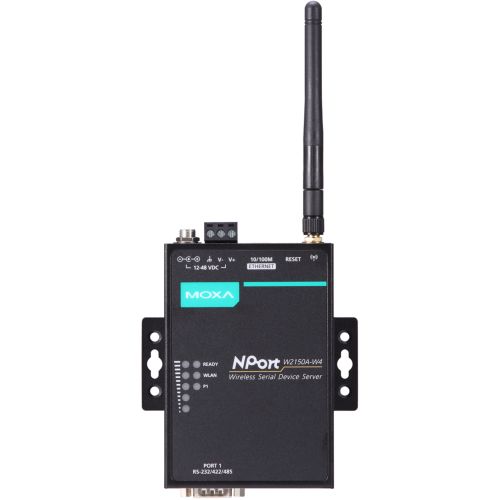

NPort W2150A-W4-EU MOXA wireless device servers

NPort W2150A-W4-EU MOXA

NPort W2150A-W4-EU

1-port RS-232/422/485 wireless device server with 802.11a/b/g/n WLAN EU band, EU plug, 12 to 48 VDC, 0 to 55°C operating temperature


Prezzo per pezzo

€ 339,93

(IVA esclusa)

€ 414,71 (IVA inclusa)

Articoli Prezzo (IVA esc.)
1+ pz.€ 339,93
5+ pz. € 322,935
10+ pz. € 312,748

Prezzo di 1 pz. iva (22%) inclusa: € 414,71

Disponibilità: 10 gg lav

Brand: MOXA

SKU: 130370

Model: NPort W2150A-W4-EU

Bisogno di aiuto?


CE Certificato
FCC Certificato
UL Certificato
EAC Certificato
RoHS Certificato


The NPort® W2150A-W4 and W2250A-W4 are the ideal choice for connecting your serial and Ethernet devices, such as PLCs, meters, and sensors, to a wireless LAN. Your communications software will be able to access the serial devices from anywhere over a wireless LAN. Moreover, the wireless device servers require fewer cables and are ideal for applications that involve difficult wiring situations. In Infrastructure Mode, the NPort® W2150A-W4 and NPort® W2250A-W4 can connect to Wi-Fi networks at offices and factories to allow users to move, or roam, between several APs (access points), and offer an excellent solution for devices that are frequently moved from place to place.

Features and Benefits

  •  Links serial and Ethernet devices to an IEEE 802.11a/b/g/n network
  •  Web-based configuration using built-in Ethernet or WLAN
  •  Secure Boot that only allows Moxa-authorized firmware to run on devices
  •  Remote configuration with HTTPS, SSH
  •  Secure data access with WEP, WPA, WPA2
  •  Fast roaming for quick automatic switching between access points
  •  Offline port buffering and serial data log
  •  Enhanced surge protection for serial, LAN, and power
  •  Dual power inputs (1 screw-type power jack, 1 terminal block)


Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector):
Magnetic Isolation Protection:
1.5 kV (built-in)
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
Ethernet Software Features
Configuration Options:
Web Console (HTTP/HTTPS)
Windows Utility
DHCP Option 82
Web Console
Windows Real COM Drivers:
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/ x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows XP Embedded
Linux Real TTY Drivers:
Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers:
SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API:
Android 3.1.x and later
Device Settings MIB
RFC1213, RFC1317


User Authentication Management: local database, RADIUS
Secure Protocols: HTTPS (TLSv1.2), SSH, SNMPv3
Cryptography: HMAC, SHA-1, SHA-256, SHA-384, RSA-1024, AES-128, AES-256
Time Management:
NTP Client
SNTP Client

WLAN Interface

WLAN Standards:
Receiver Sensitivity for 802.11a (measured at 5.680 GHz):
Typ. -91 @ 6 Mbps
Typ. -74 @ 54 Mbps
Receiver Sensitivity for 802.11b (measured at 2.437 GHz):
Typ. -92 dBm @ 1 Mbps
Typ. -84 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz):
Typ. -91 dBm @ 6 Mbps
Typ. -73 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz):
Typ. -89 dBm @ 6.5 Mbps (20 MHz)
Typ. -71 dBm @ 72.2 Mbps (20 MHz)
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz):
Typ. -89 dBm @ 6.5 Mbps (20 MHz)
Typ. -71 dBm @ 72.2 Mbps (20 MHz)
Typ. -85 dBm @ 13.5 Mbps (40 MHz)
Typ. -67 dBm @ 150 Mbps (40 MHz)
Modulation Type:
Transmission Distance:
Up to 100 meters (in open areas)
Transmission Rate:
802.11a/g: 54 Mbps
802.11b: 11 Mbps
802.11n: 6.5 to 150 Mbps
Transmitter Power for 802.11b:
16±1.5 dBm @ 1 Mbps
16±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g:
16±1.5 dBm @ 6 Mbps
14±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11a:
15±1.5 dBm @ 6 Mbps
14±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz):
16 dBm @ 1.5 Mbps (6.5 MHz)
12 dBm @ 1.5 Mbps (72.2 MHz)
Transmitter Power for 802.11n (5 GHz):
15 dBm @ 1.5 Mbps (6.5 MHz)
12 dBm @ 1.5 Mbps (150 MHz)
Frequency Band for EU (20 MHz operating channels):
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
Wireless Security:
WEP encryption (64-bit and 128-bit)
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WLAN Modes:
Infrastructure mode
