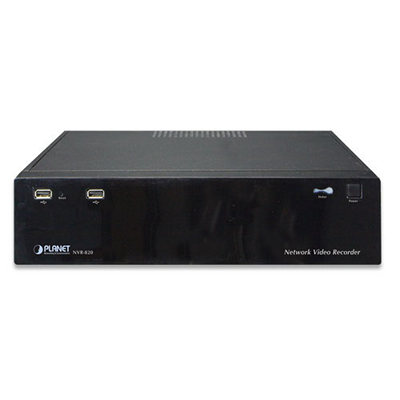

NVR-820 Planet Video Recorder

 Efficient SMB Surveillance Solution

PLANET NVR-820, a high-definition IP surveillance solution, is suitable for upgrading your CCTV system to IP system without re-cabling. It is the 8-channel Linux-embedded NVR with HDMI local display, bringing a stable and efficient system operation under a wide range of recording, network management and system settings. The NVR-820 can be used as a control center to control and monitor up to 8 connected network cameras (ONVIF supported) locally or remotely, perfectly designed for intelligent IP surveillance system. Users can just turn on the cameras and the NVR-820 to easily protect their lives and properties under the IP networks. It also supports image storage for evidentiary recording and data backup of up to 2 SATA hard disks. The recorded video files can be saved in the NVR without the need for an additional PC for file storage, thus bringing users a secure surveillance system at a lower total cost. It is fully compatible with iOS, Android and Internet Explorer on Windows operating system for multi-platform remote access.

Specifications

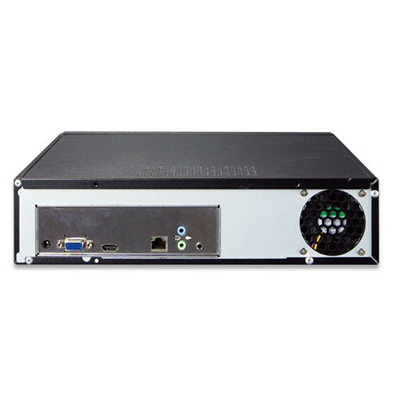

Hardware
Ethernet: 1 x RJ45, 10/100/1000BASE-T
USB Interface: 2 x USB 2.0 for backup device and firmware upgrade
Video Interface: VGA/HDMI video interface
Audio Interface: Mic-in, line-in and line-out
Storage Device: 2 x 3.5" SATA II hard disk connectors
LED: Power, Status
Button: Power, Reset
Camera:
Max. Channels: 8-channel IP cameras
Additional Camera: Manual / Smart Camera Search / Auto setup
Video:
Compression: H.264 / MPEG-4 / M-JPEG
Resolution: 5MP / 3MP / 1080p / 720p / FD1 / CIF / QCIF
Max. Live Video Frame Rate (Local Display): 240fps@720p (8-ch)
120fps@1080p (4-ch)
80fps@3MP (2-ch)

*Supports 5MP and Full HD 1080p@60fps
Max. Recording Frame Rate (Local Display): 240fps@1080p (8-ch), 4Mbps per channel, total of 8 channels
120fps@3MP, 6Mbps per channel, total of 8 channels

*Real performance may vary in different environments.
Audio:
Audio Type: 2-way
Audio Format: G.711, G.726 (Camera dependent)
Live view:
Display Mode: Live View / Playback / Full Screen / Sequence View / Saved views
Split Screen: 01/04/09
Full Screen: 01/04/09
Sequence Mode: Sequence all/manually selected cameras in 1/4 split view with configurable timer
Snapshot: Video snapshot in JPEG format
PTZ Support: Digital PTZ / Auto Pan / Preset Point / Sequence view
Playback:
Split Screen: 01/04/20
Play Method: Play / Pause / Stop / Forward / Reverse/Speed Adjust/Frame by Frame
Search by time or event only
Bookmark: Intuitive timeline interface with bookmark function for easy file export
Monitor:
Dual Monitor: Main UI + Full screen live view / sequence view
Monitor Resolutions: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Network and Configuration:
Network Service: TCP / HTTP / SMTP / DHCP / DNS / ARP / P2P / NTP / UPnP / FTP
Streaming Protocols: Depending on the supported cameras
Triggers and Event:
Event Type: System Events –
System Start/Shutdown
System Settings modified
Camera Settings modified
Start Recycle
Disk Full

Camera Events –
Motion/Sensor Detection
Event Action: Display red window on video of event channel
Buzzer alarm
Disable/enable event action
Duration of event action
Recording
Mail/FTP notification
E-map notification
Management:
Number of Groups: 7 (Administrator/Guest/User Define * 5)
Privileges: Live View / Playback / System Configurations / Camera Configurations / Recording Configuration / Event Configuration / Maintenance
User Interface: Graphic local user interface (Operated by mouse, keyboard)
Web Browser (Internet Explorer 7 or above)
CMS Utility
Log Type: Alert/Event/User Access
Software Utility: Search utility/media player for exporting recorded files
Environment:
Power: 19V DC, 4.74A
Consumption: 60W
Operating Temperature: 5~40 degrees C
Storage Temperature: -40~70 degrees C
Humidity: 10~90% (non-condensing)
Weight: 2.4kg
Dimensions (W x D x H): 315 x 225 x 75 mm
