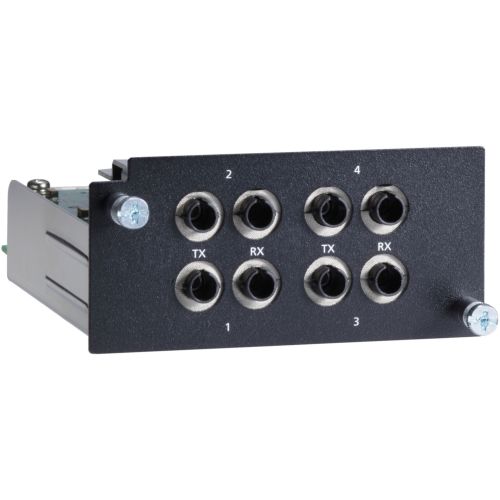

PM-7500-4MST MOXA Modular Ethernet Switches

Interface

RJ45 Ports: 10/100/1000BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Fiber Ports: 100/1000BaseFX ports (SC/ST or SFP LC connector)

Optical Fiber

Table:
     100BaseFX:
          Multi-mode:
               Wavelength: 1300 nm
               Max. TX: -10 dBm
               Min. TX: -20 dBm
               RX Sensitivity: -32 dBm
               Link Budget: 12 dB

               Typical Distance:
                    5 km
                    4 km

               Saturation: -6 dBm

          Single-mode:
               Wavelength: 1310 nm
               Max. TX: 0 dBm
               Min. TX: -5 dBm
               RX Sensitivity: -34 dBm
               Link Budget: 29 dB
               Typical Distance: 40 km
               Saturation: -3 dBm

          Single-mode, 80 km:
               Wavelength: 1550 nm
               Max. TX: 0 dBm
               Min. TX: -5 dBm
               RX Sensitivity: -34 dBm
               Link Budget: 29 dB
               Typical Distance: 80 km
               Saturation: -3 dBm

     10BaseFX:
          Multi-mode:
               Wavelength: 1300 nm
               Max. TX: -10 dBm
               Min. TX: -20 dBm
               RX Sensitivity: -32 dBm
               Link Budget: 12 dB

               Typical Distance:
                    5 km
                    4 km

               Saturation: -6 dBm
