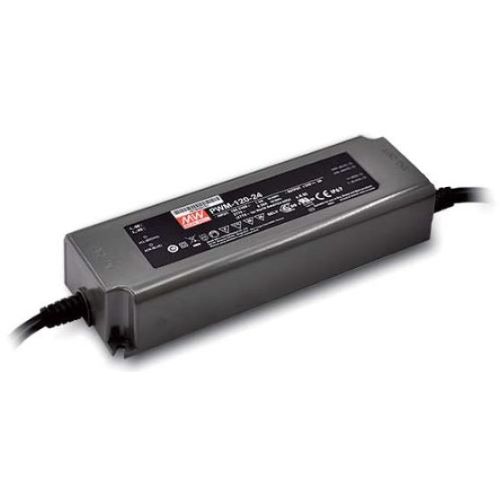

PWM-120-24BLE Mean Well AC DC Driver Led

Features

• Constant voltage PWM style output with frequency up to 4KHz compliant EEE1789-2015 no risk
• Bluetooth Mesh Dimming Function
• Plastic housing with class II design
• Built-in active PFC function
• Typical lifetime>50000 hours
• 5 years warranty

Applications

• LED strip lighting
• Indoor LED lighting
• LED decorative lighting
• LED architecture lighting
• Intelligent lighting control

Description

PWM-120 IoT series is a bluetooth ready 120W AC/DC LED driver featuring the constant voltage mode
with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of
LED strips and constant voltage LED bulbs. PWM-120 loT operates from 90~305VAC and offers models
with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90%, with
the fanless design, the entire series is able to operate for -20°C ~+90°C case temperature under free air
convection. PWM-120 loT can provide minimal dimming level low to 0.4% suitable for low light level
applications e.g cinema.The output frequency is up to 4KHz which compliant to IEEE1789-2015
requirement for no risk providing a great solution for health concern clue to light flickering.

Specifications

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 5A
RATED POWER: 120W
PWM FREQUENCY (Typ.): up to 4kHz
SETUP, RISE TIME:  1000ms,80ms/115VAC or 230VAC
UP TIME (Typ.): 16ms/230VAC or 115VAC

INPUT

VOLTAGE RANGE: 90 ~ 305VAC    127 ~ 431VDC
FREQUENCY RANGE: 47 ~63HZ
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.3A/115VAC    0.65A/ 230VAC    0.55A/ 277VAC
