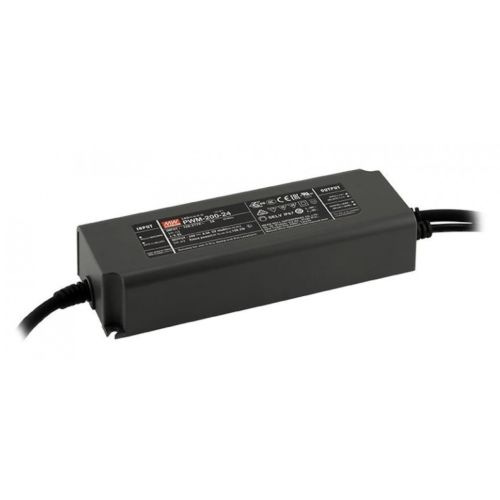

PWM-200-12DA2 Mean Well AC DC Driver Led

 Features

• Constant voltage PWM style output
• with frequency up to 4kHz compliant IEEE1789-2015
• Plastic housing with class II and PFC design
• Emergency lighting application is available according to IEC61347-2-13
• Standby power consumption <O.5W
• Fully encapsulated with IP67 level
• Function options; 3 in 1 dimming (dim-to-off and Isolated Design)/DALI-2
• Minimum dimming level 0.2% for DA2 type
• Typical lifetime >50000 hrs and 5 years warranty

Applications

• LED strip lighting
• Indoor LED lighting
• LED decorative lighting
• LED architecture lighting
• COVE lighting
• Type "HL" for use in class I, division 2 hazardous (classified) location.

Description

PWM-200 series is a 200W AC/DC LED driver featuring the constant voltage mode with PWM style output,
which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of
LED strips. PWM-200 operates from 100~305VAC and offers models with different rated voltage ranging
between 12V and 48V. Thanks to the high efficiency up to 94% with the fanless design, the entire series
is able to operate for -40°C ~ +85°C case temperature under free air convection. The entire series is rated
with IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM-200 is equipped
with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips
applications.

Specifications

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 15A
RATED POWER: 180W
DIMMING RANGE: 0 ~ 100%
SETUP, RISE TIME: 500ms, 80mS/230VAC or 115VAC
HOLD UP TIME (Typ.): 10ms/230VAC or 115VAC

INPUT

VOLTAGE RANGE: 100 ~ 305VAC         142 ~ 431VDC
FREQUENCY RANGE: 47 ~63Hz
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 2.2A/115VAC     1.1A/ 230VAC     0.9A/ 277VAC
