RKS-G4028-PL-L3-PoE-12XGS-T MOXA Rackmount Ethernet Switches

RKS-G4028-PL-L3-PoE-12XGS-T MOXA

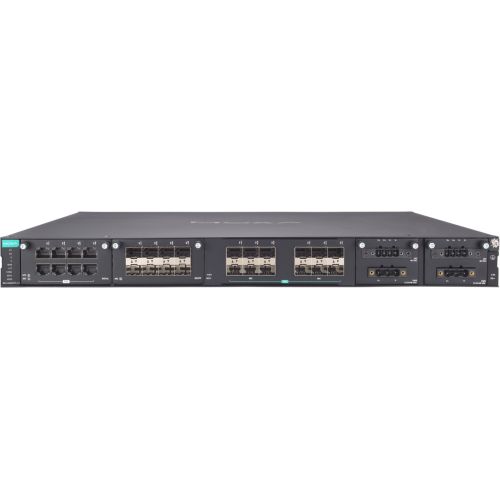

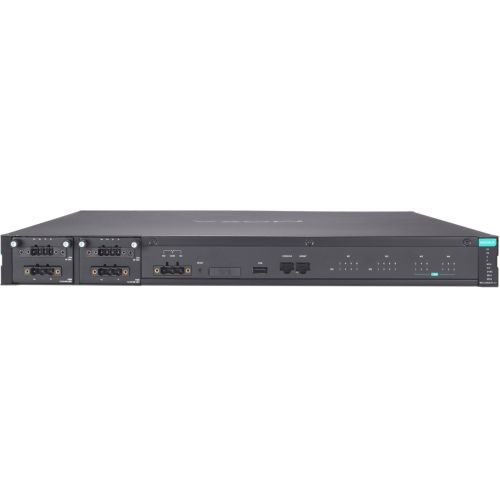

RKS-G4028-PL-L3-PoE-12XGS-T

Layer 3 modular managed Ethernet switch with 12 fixed 10GbE SFP+, 2 slots for Ethernet modules, PoE Ethernet module support, 2 slots for isolated power modules , -40 to 75°C operating temperature

Quantità':

Prezzo per pezzo

€ 12.171,80

(IVA esclusa)

€ 14.849,60 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 14.849,60

Brand: MOXA

SKU: 141724

Model: RKS-G4028-PL-L3-PoE-12XGS-T

RKS-G4028-PL-L3-PoE-12XGS-T technical sheet

RKS-G4028-PL-L3-PoE-12XGS-T datasheet

RKS-G4028-PL-L3-PoE-12XGS-T scheda prodotto

Stampa scheda prodotto

Bisogno di aiuto?

Scrivici
una email

Chiamaci
051 6604005
Condividi
Input Specifications HTML

Introduction

The RKS-G4028-PL-L3 Series is purpose-built to deliver exceptional reliability and performance for mission-critical industrial and business applications, including power substation automation, railway operations, and intelligent transportation systems
With its high-density 10GbE backbone (up to 12 fixed 10G SFP+ ports), modular LAN expansion (up to 16 additional Gigabit ports), and dual isolated redundant power supply options (12/24/48 VDC, 110/220 VAC/VDC, or 48V EPS), the RKS-G4028-PL-L3 Series ensures robust communication while reducing wiring and maintenance costs
Even better, the dual-sided power installation design (front or rear) maximizes installation convenience for diverse cabinet layouts

Features and Benefits

  • Scalable design supporting up to 28 ports, from Fast Ethernet to 10GbE industrial networks
  • Modular interfaces with LAN modules and power modules for flexible expansion
  • IEEE 802.3bt PoE with up to 90 W per port and 720 W total budget for high-power devices
  • High EMC immunity compliant with IEC 61850-3 and IEEE 1613
  • Hardware-based IEEE 1588 PTP for high-precision time synchronization
  • Intelligent chassis monitoring with built-in temperature detection
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) If the port link speed is 1 Gigabit or higher, the recovery time is < 50 ms. , and STP/RSTP/MSTP for network redundancy
  • Supports MXView One series for easy, visualized industrial network management
  • GOOSE Check for easy troubleshooting
  • Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
  • IEC 62443-4-2 Security Level 2 certified
  • -40 to 75°C operating temperature range
Ethernet Interface
Out-of-band Management (OOBM) 1 x 8-pin RJ45 1GbE Ethernet port (MGMT)
Expansion Module Slots 2
Standards IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3ae for 10 Gigabit Ethernet
IEEE 802.3bz for 2.5GBaseX
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Note All Ethernet ports on the RKS-G4028-PL series operate in full-duplex mode exclusively. Half-duplex transmission is not supported.
Ethernet Software Features
Management ARP
Back Pressure Flow Control
DHCP Relay Agent (Option 82)
Fiber check
Flow control
HTTP
HTTPS
IPv4
Linkup Delay
LLDP
Port Mirroring (SPAN, RSPAN)
Private MIB
RARP
RMON
SFTP
SMTP
SNMP Inform
SNMP Trap
SNMPv1/v2c/v3
Syslog
Telnet
TFTP
Filter GMRP
GVRP
GARP
802.1Q
IGMP Snooping v1/v2/v3
IGMP Querier
Redundancy Protocols Link Aggregation
MRP
MRP Interconnection
MSTP
Multiple Dual Homing
Multiple Network Coupling
Network Loop Protection
Ring Coupling
RSTP
STP
Tracking
Turbo Chain
Turbo Ring v2
Routing Redundancy VRRP
Security Access control list
Broadcast storm protection
DHCP Snooping
Dynamic ARP Inspection
HTTPS/SSL
IEEE 802.1AE MAC security
IP Source Guard
Login and password policy
MAC authentication bypass
RADIUS
Rate Limit
Secure boot
SSH
Static port lock
Sticky MAC
TACACS+
Trust access control
Time Management IEEE 1588v2 PTP (hardware-based)
NTP Authentication
NTP Server/Client
SNTP
Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
Protocols 802.1X
ARP
DNS
HTTP
HTTPS
ICMP
IPv4
NTP Client
QoS
RARP
RMON
SMTP
SNMPv1/v2c/v3
Syslog
TCP/IP
Telnet
TFTP
UDP
VLAN Assignment
Industrial Protocols EtherNet/IP
Modbus TCP
PROFINET
Unicast Routing OSPF
Static Route
Multicast Routing PIM-DM
PIM-SM
Multicast Local Route
MIB IEEE8021-PAE-MIB
IEEE8021-SPANNING-TREE-MIB
IEEE8023-LAG-MIB
LLDP-EXT-DOT1-MIB
LLDP-EXT-DOT3-MIB
P-BRIDGE MIB
Q-BRIDGE-MIB
RMON MIB Groups 1, 2, 3, 9
SNMPv2-MIB
Power Substation 1588 PTP Power Profile IEC 61850-9-3
1588 PTP Power Profile C37.238-2017

GOOSE Check
MMS
Switch Properties
IGMP Groups 2048
Jumbo Frame Size 9.216 KB
MAC Table Size 32 K
Max. No. of VLANs 512
Packet Buffer Size 8 MB
Priority Queues 8
VLAN ID Range VID 1 to 4094
USB Interface
Storage Port USB Type A
MicroSD Interface
Storage Port microSD card
LED Interface
LED Indicators PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC, EPS1, EPS2
Serial Interface
Console Port RS-232 (RJ45)
Input/Output Interface
Alarm Contact Channels 1 relay output with current carrying capacity of 2 A @ 30 VDC, 0.5A @ 125VAC
Buttons Reset button
Power Parameters
Total PoE Power Budget 720 W
Max. PoE Power Output per Port IEEE 802.3af: 15.4 W
IEEE 802.3at: 30 W
IEEE 802.3bt: 90 W
Input Voltage Isolated Power Module
PWR-310-HV: 110/220 VDC, 110/220 VAC
PWR-310-HVA: 110/220 VAC
PWR-310-LV: 12/24/48 VDC

Isolated Power Module with PoE EPS
PWR-310-HV-P: 110/220 VAC, 110/220 VDC, EPS Input: 48–57 VDC
PWR-310-LV-P: 12/24/48 VDC, EPS Input: 48–57 VDC
(For PoE+ applications, a minimum of 53 VDC is recommended)
Operating Voltage 46 to 57 VDC (for the PoE system)
Overload Current Protection Supported
Reverse Polarity Protection Supported
Input Current EPS (PoE models only):
Max. 12 A @ 48 to 57 VDC
Power Consumption (Max.) RKS-G4028-PL-L3 with PWR-310 LV and LV-P Modules:
Max. 96.06 W @ 12 VDC
Max. 81.4 W @ 24 VDC
Max. 80.3 W @ 48 VDC

RKS-G4028-PL-L3 with PWR-310 HV and HV-P Modules:
Max. 80.96 W @ 110 VDC
Max. 80.3 W @ 220 VDC
Max. 79.86 W @ 110 VAC
Max. 78.76 W @ 220 VAC

RKS-G4028-PL-L3 with PWR-310 HVA Modules:
Max.79.86 W @ 110 VAC
Max.78.76 W @ 220 VAC
Physical Characteristics
IP Rating IP40
Dimensions 440 x 44 x 387 mm (17.32 x 1.72 x 15.24 in)
Weight RKS-G4028-PL-L3-PoE-12XGS-T: 5410 g (11.93 lb)
RKS-G4028-PL-12XGS-T: 5450 g (12.02 lb)

RM-G4000-PL LAN Port Module:
RM-G4000-PL-8GSFP: 505 g (1.11 lb)
RM-G4000-PL-8GTX: 438 g (0.97 lb)
RM-G4000-PL-8GPoE: 596 g (1.31 lb)

PWR-310 Power Module:
PWR-310-LV: 854 g (1.88 lb)
PWR-310-HV: 854 g (1.88 lb)
PWR-310-HVA: 861g (1.90 lb)
PWR-310-LV-P: 830 g (1.83 lb)
PWR-310-HV-P: 845 g (1.86 lb)
5410 g (11.93 lb)
5450 g (12.02 lb)
Installation Rack mounting
Environmental Limits
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications
EMC EN 55032/35
EN 61000-6-2/-6-4
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
IEC 61000-4-11 AC Voltage Dips and Interruptions
IEC 61000-4-29 DC Voltage Dips and Interruptions
Cybersecurity IEC 62443-4-2 Security Level 2
Safety EN IEC 62368-1
IEC 62368-1
UL 61010-1
UL 61010-2-201
UL 62368-1
Power Substation IEC 61850-3 Edition 2.0
IEC 61850-90-4
IEEE 1613 Class 2 (EMC)
Railway EN 50121-4
Traffic Control NEMA TS2
Shock IEC 60068-2-27
Vibration IEC 60068-2-6
MTBF
Time 1,326,867 hrs
Standards Telcordia (Bellcore), GB
Warranty
Warranty Period 5 years
