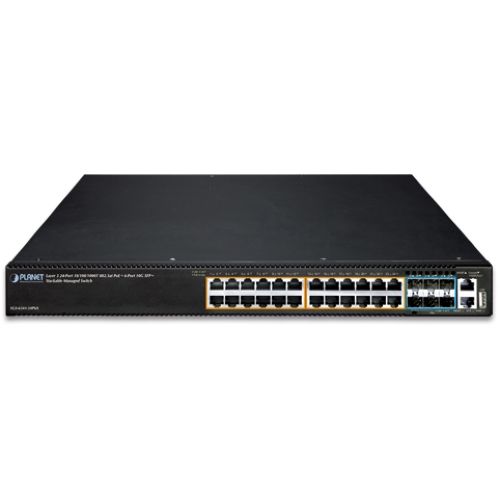

SGS-6341-24P6X Planet Managed POE

Features

Physical Ports

• 24 10/100/1000BASE-T RJ45 copper ports
• 6 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
• RJ45 to DB9 console interface (115200,N,8,1) for switch basic management and setup
• MGMT port for HTTP server access
• USB port

Stacking Features

IP Stacking

• Connects with stack member via Gigabit TP, SFP and 10G SFP+ interfaces
• Single IP address management, supporting up to 8 IP units stacked together

Hardware Stacking

• Virtualized multiple SGS-6341 series stacked into one logical facility
• Connects with stack members via assigned 10G SFP+ interfaces
• Single IP address stack management, supporting up to 8 hardware units stacked together
• Stacking architecture supports redundant Ring mode

Power over Ethernet

• Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 24 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE power up to 32 watts for each PoE port
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters
• PoE management
• Total PoE power budget control
• Per port PoE function enable/disable
• PoE port power feeding priority
• Per PoE port power limitation
• PD classification detection
• PoE schedule

IPv4 Features

• Static Routing, RIP v1/v2, OSPF and BGP
• Policy Routing
• BFD for OSPF and BGP

IPv6 Features

• ICMPv6, DHCPv6, ACLv6, IPv6 Telnet
• IPv6 Neighbor Discovery
• Path MTU Discovery
• MLD and MLD Snooping
• IPv6 Static Routing, RIPng, OSPFv3 and BGP4+
• Manual Tunnel, ISATAP Tunnel and 6-to-4 Tunnel

Multicast Routing Features

• Supports Multicast Routing Protocols:
• PIM-DM (Protocol Independent Multicast - Dense Mode)
• PIM-SM (Protocol Independent Multicast - Sparse Mode)
• PIM-SSM (Protocol Independent Multicast - Source-Specific Multicast Mode)
• Supports IGMP v1/v2/v3

Layer 2 Features

• Auto-MDI/MDI-X detection on each RJ45 port
• Prevents packet loss flow control
• IEEE 802.3x pause frame flow control in full-duplex mode
• Back-pressure flow control in half-duplex mode
• High performance Store-and-Forward architecture, broadcast storm control, port loopback detects
• 32K MAC address table, automatic source address learning and aging
• Supports VLAN
• IEEE 802.1Q tag-based VLAN
• GVRP for dynamic VLAN management
• Up to 4094 active VLANs
• Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
• Private VLAN Edge (PVE) supported
• GVRP protocol for Management VLAN
• Protocol-based VLAN
• MAC-based VLAN
• Supports Link Aggregation
• Maximum 32 trunk groups with up to 8 ports per trunk group
• IEEE 802.3ad LACP (Link Aggregation Control Protocol)
• Cisco ether-channel (static trunk)
• Supports Spanning Tree Protocol
• STP, IEEE 802.1D (Classic Spanning Tree Protocol)
• RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
• MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
• BPDU & root guard
• Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
• Provides port mirror (many-to-1)
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)

Quality of Service

• 8 priority queues on all switch ports
• Supports strict priority and WRR (Weighted Round Robin) CoS policies
• Traffic classification
• IEEE 802.1p CoS/ToS
• IPv4/IPv6 DSCP
• Port-based WRR
• Strict priority and WRR CoS policies

Multicast

• Supports IPv4 IGMP snooping v1, v2 and v3; and IPv6 MLD v1 and v2 snooping
• Querier mode supports
• Supports Multicast VLAN Register (MVR)

Security

• Authentication
• IEEE 802.1x port-based network access authentication
• Built-in RADIUS client to cooperate with the RADIUS servers
• RADIUS/TACACS+ users access authentication
• Change of Authorization (COA)
• Access Control List
• IP-based Access Control List (ACL)
• MAC-based Access Control List (ACL)
• Port-based Access Control List (ACL)
• Time-based ACL
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks

Management

• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
• Console and Telnet Command Line Interface
• HTTP web switch management
• SNMP v1 and v2c switch management
• SSHv2, SSLv3, TLSv1.3 and SNMP v3 secure access
• SNMP Management
• Four RMON groups (history, statistics, alarms, and events)
• SNMP trap for interface Link Up and Link Down notification
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
• Firmware upload/download via HTTP
• Reset button for system reboot or reset to factory default
• Dual images
• DHCP Functions:
• DHCP Relay
• DHCP Option 82
• DHCP Server
• User Privilege levels control
• Network Time Protocol (NTP)
• Network Diagnostic
• SFP-DDM (Digital Diagnostic Monitor)
• ICMP remote IP ping
• Syslog remote alarm
• System Log
• Supports ping, trace route function for IPv4 and IPv6

Applications

Excellent Solution to Enterprise PoE and Security Switch

Providing 24 PoE in-line power interfaces, the SGS-6341 series can easily build a power that can centrally control IP phone system, IP camera system and wireless AP group for enterprises. The SGS-6341 series delivers full ports of 802.3at/af compliant Gigabit Ethernet network connectivity with high-performance and cost-effective advantages for the increasing number of PoE IP telephones, PoE IP cameras, PoE wireless access points and other devices applied at the edge of the small or medium enterprise network. With the six built-in SFP+ ports, the SGS-6341 series provides the uplink to the backbone network through the 10G Ethernet LR/SR SFP+ modules. It further improves network efficiency and protects the network clients by offering security and QoS features.

Layer 3 VLAN Routing

With the built-in robust Layer 3 traffic routing protocols, the SGS-6341 series ensures reliable routing between VLANs and network segments. The routing protocols can be applied via VLAN interface. The SGS-6341 series is certainly a cost-effective and ideal solution for enterprises.
