Mini panel antenna, Very compact directional dual-band base station antenna for indoor or outdoor use conceived for LTE and W-LAN systems working on 2.3-2.7 GHz and 3.3-3.8 Ghz
Bisogno di aiuto?
Description

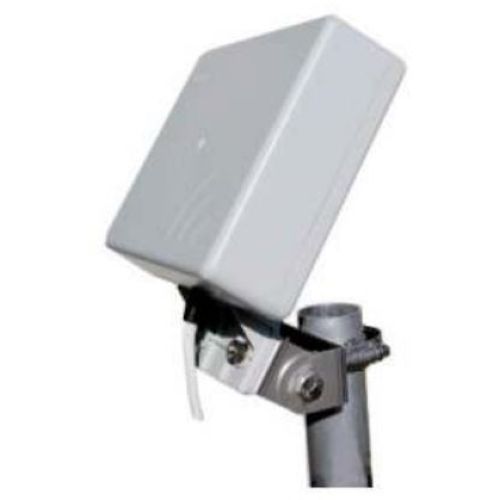

Very compact directional dual-band base station antenna for indoor or outdoor use conceived for LTE and W-LAN systems working on 2.3-2.7 GHz and 3.3-3.8 GHz The radiant element is made on a PCB and it is protected by a thermoplastic UV-stabilized radome to get the best performance for long life. It is suitable for an easy and quick installation on the mast or on the wall.
Specifications
Electrical Data
Type: Mini panel antenna
Frequency Range: 2.3 - 2.7 GHz & 3.3 - 3.8 GHz @ SWR ≤ 1.8
Impedance: 50 Ω
Half Power Beam Width: see Typical Radiation Patterns
Polarization: Linear Vertical
gain:
10 dBi @ 2.3-2.7 GHz
13 dBi @ 3.3-3.8 GHz
Front to back ratio:
≥ 15 dB @ 2.3-2.7 GHz
≥ 20 dB @ 3.3-3.8 GHz
Max Power @ 30°C: 6 Watts (CW) @ 30°C ambient
Cable Type / Length: White Low Loss / 30 cm
Connector: SMA-male (other type on request, acc min q.ty)
Mechanical Data
Materials: RAL 7035 Light Grey thermoplastic UV stabilized, galvanized steel
Wind Load @15O km/h: 40 N
Wind Resistance: 180 Km/h
Wind Surface: 0.02 m2
Operating temperature: -20°c to + 80°C
Dimensions (approx): 154 x 134 x 46 mm without bracket
Weight (approx): 420 gr
installation Type:
Mast: 25-42 mm with U-bolt (included)
Wall: mounting screw (not included)
