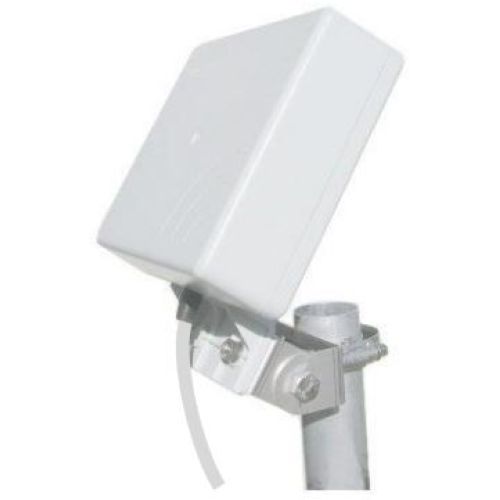

SMP 4G LTE Directional mini panel wideband antenna, Frequency Range 790-960 MHz and 1710-2700 Mhz
Bisogno di aiuto?
Features
- Very compact directional panel antenna
- Suitable for indoor and outdoor use
- Working on 4G LTE
- Easy and quick installation on the mast or on the wall
- Fully designed & Manufactured in Italy
Specifications
Electrical Data
Type: Directional mini panel wideband
Frequency Range: 790-960 MHz & 1710-2700 MHz @ SWR ≤ 2
Impedance: 50 Ω
Half Power Beam Width: see Typical Radiation Patterns
Polarization: Linear Vertical
gain:
LTE 800 & GSM 6÷7 dBi @ 790-960 MHz;
DCS 9 dBi @ 1710-1880 MHz;
UMTS 9 dBi @ 1920-2170 MHz
LTE & WLAN 8÷9 dBi @ 2300-2700 MHz
Front to back ratio (each element):
LTE 800 & GSM ≥ 12 dB @ 790-960 MHZ
DCS ≥ 16 dB @ 1710-1880 MHz
UMTS ≥ 20 dB @ 1920-2170 MHz
LTE & WLAN ≥ 10 dB @ 2300-2700 MHz
Max Power @ 30°C:
LTE 800 & GSM 30 Watts (CW) @ 790-960 MHZ
DCS 15 Watts (CW) @ 1710-1880 MHz
UMTS 10 Watts (CW) @ 1920-2170 MHz
LTE & WLAN 10 Watts (CW) @ 2300-2700 MHz
Cable Type / Length: 50 Ω LOW LOSS / 30 cm (other length on request)
Connector: SMA-male (other type on request)
Mechanical Data
Materials: RAL 7035 Light Grey thermoplastic UV stabilized, galvanized steel
Wind Load @15O km/h: 4ON
Wind Resistance: I80 Km/h
Wind Surface: 0.02 m2
Operating temperature: -40°c to + 80°C
Dimensions (approx): 154 x 134 x 46 mm without bracket
Weight (approx): 500 gr
installation Type:
Mast: 25-42 mm with U-bolt (included)
Wall: mounting screw (not included)
