SW485WA, Port-powered RS232 to RS485 Converter, 1500W surge protection, 15KV ESD protection, -40~80°C

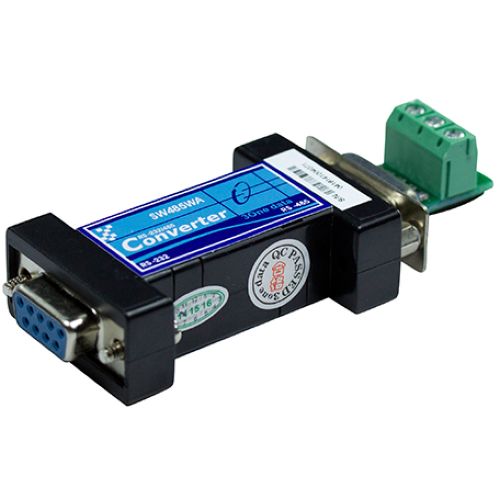

SW485WA
Port-powered RS232 to RS485 Converter, 1500W surge protection, 15KV ESD protection, -40~80°C
Bisogno di aiuto?
Introduction
SW485WA is an industrial-grade pocket RS-232 to RS-485 interface converter, which can implement bidirectional data conversion between serial port RS-232 and RS-485, and provide 1500V photoelectric isolation protection without the need of external power supply. It provides a RS-232 serial port and a RS-485 serial port equipped with 600W surge protection and 15kV electrostatic protection, which can effectively prevent device from being damaged.
The RS-232 port of SW485WA adopts hole-type DB9 interface, which could connect to PC directly and obtain power from PC serial port via TXD, RTS and DTR signal lines. RS-232/485 bidirectional conversion could be implemented, even though it’s only powered by TXD signal. Regardless of whether the signal is high or low, SW485WA can obtain enough power from those data/handshake signals.
The design of SW485WA complies with the requirements of industrial standard. It could be wildly used in electric power system, industrial automation control and IC card charging system.
Features
- Support bidirectional data conversion between 1 RS-232 serial port and 1 RS-485 serial port
- Support 1500V photoelectric isolation
- Unique port-power technology, no need for external power supply
- The rate is up to 38400bps, support 128 nodes
- Automatic serial port signal rate detection, zero-delay automatic forwarding
- Support -40～80℃ wide operating temperature range
- Compact size, easy installation
Specifications
Serial Port
Standard: EIA RS-232C, RS-485
Serial port quantity: 1 RS-232 serial port, 1 RS-485 serial port
RS-232 signal: TXD, RXD, GND
RS-485 signal: D+, D-, GND
Interface type: RS-232 serial port, adopts DB9, Female；
RS-485 serial port, adopt 3-pin terminal blocks
Transmission distance: RS-232 serial port, 15m；
RS-485 serial port, 1200m
Direction control: RS-485 adopts automatic data flow control technology which can detect and control data transmission direction automatically
Load capacity: RS-485 supports 128-point polling environment
Interface protection: 600W surge protection, 15kV electrostatic protection
Photoelectric isolation: 1500V
Power Requirement
No need for external power supply；
Device obtains power from TXD, RTS, DTR signals of RS-232 serial port
Power Consumption
Static power consumption: ≤20mA
Dynamic power consumption(mean): ≤50mA
Environmental Limit
Operating temperature: -40~80℃
Storage temperature: -40~85℃
Relative humidity: 5%～95%(no condensation)
Physical Characteristic
Housing: plastic
Dimension (W x H x D): 82mm×33mm×16.5mm
Weight: 50g
Certification
CE, FCC, RoHS
Warranty
3 years
