TNS5800-4GT-8T

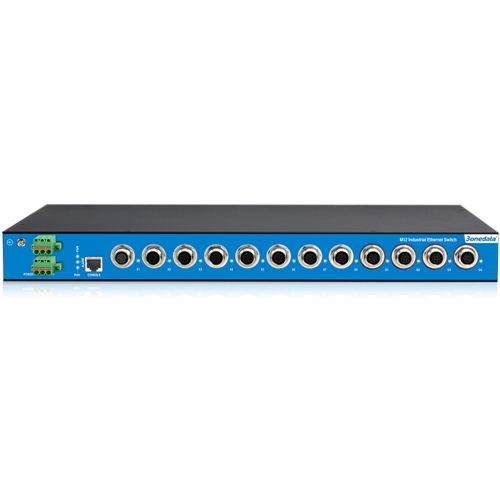

8 port 10/100Base-T(X) M12 + 4 port 10/100/1000Base-T(X) M12, EN50155 Layer 3 M12 Managed Industrial Ethernet Switch, 100-240VAC/DC, 19” 1U rackmount.

Quantità':

Prezzo per pezzo

€ 1.361,73

(IVA esclusa)

€ 1.661,31 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 1.661,31

Disponibilità: 25 gg lav

Brand: 3ONEDATA

SKU: 119467

Model: TNS5800-4GT-8T

Bisogno di aiuto?


 Introduction

TNS5800 series are 12-port 100M/Gigabit layer 3 managed industrial Ethernet switches designed for rail transit. This series of products conform to EN50155 and EN50121 industrial standards. Ethernet interface adopts reliable M12, which can be used in scenes with strenuous vibration and shock. This series include two types of products and provide Gigabit M12 and 100M M12 interfaces. It adopts 1U rack-mounted or wall mounting to meet the requirements of different application scenes.


Features and Benefits

  • SNMPv1/v2c/v3 is used for network management of various levels
  • RMON can be used for efficient and flexible network monitoring
  • Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
  • QoS supports real-time traffic classification and priority setting.
  • LLDP can achieve automatic topology discovery, which is convenient for visual management
  • DHCP server and client can be used for distributing IP address
  • File management is convenient for the device rapid configuration and online upgrading
  • Log management has recorded booting, operation and connection information
  • Port statistics can be used for the port real-time traffic statistics
  • ARP and Static ND can be used for MAC address resolution
  • User password can conduct user hierarchical management, improving the device management security


Specifications

Standard & Protocol

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1X for 802.1X Authentication
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP


Management

SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Client, File Management, Log Management, Port Statistics, Static ARP, Static ND


Security

Classification of User Permissions, Anti-attack Control, ACL, 802.1X Authentication, Radius Server Authentication, Port Alarm, E-mail Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration, HTTPS Configuration


Switch Function

802.1Q Vlan, Static/Dynamic Port Aggregation, Bandwidth Management, Flow Control, Port Isolation


Unicast / Multicast

Static Multicast, GMRP, IGMP-Snooping


Redundancy Protocol

SW-Ring, STP/RSTP/MSTP


Troubleshooting

Ping, Traceroute, Port Loopback


Route

VRRP, RIP, OSPF, BGP


Time Management

SNTP


Interface

100M M12: 10/100Base-T(X), M12 (Female), 4-Pin D-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
Gigabit M12: 10/100/1000Base-T(X), M12 (Female), 8-Pin A-Coded, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning
Console port: CLI command line management port (RS-232), RJ45 (rack-mounted) or M12 (wall mounting)
Alarm port: 3-pin 5.08mm pitch terminal blocks (rack-mounted) or M12 (wall mounting), support 1 relay alarm output, current carrying capacity 5A@30VDC or 10A@125VAC
