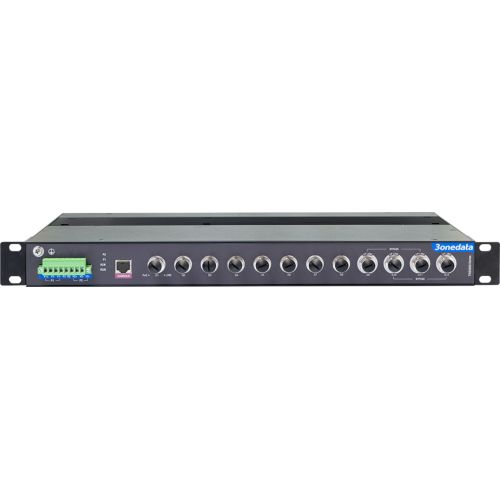

TNS5800-8P4GT-2P110 3ONEDATA EN 50155 Managed Switches

TNS5800-8P4GT-2P110 3ONEDATA


8 port 10/100 Base-T(X) M12 PoE + 4 port 10/100/1000Base-T(X) M12, EN50155. Layer 3 Managed Industrial Ethernet Switch, dual 100-240VAC/DC, 19” 1U rackmount.


Prezzo per pezzo

€ 1.544,38

(IVA esclusa)

€ 1.884,14 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 1.884,14

Disponibilità: 25 gg lav


SKU: 119470

Model: TNS5800-8P4GT-2P110

Bisogno di aiuto?


TNS5800 series is layer 3 industrial Ethernet switch designed for rail transit. The product
conforms to the requirements of industrial standard EN50155 and EN50121. Ethernet
interfaces use firm and reliable M12 connectors which can adapt to usage scenario with
vibration and shock. PoE power supply conforms to IEEE802.3af/at protocol standard,
and it can power device over Ethernet, thus decreasing the cable connection of powered
devices. This series has 4 products. They provide 110VDC power supply input and adopt
rack-mounted installation, which can meet the needs of different application sites.

Features and Benefits

  • SNMPv1/v2c/v3 is used for network management of various levels
  • RMON can be used for efficient and flexible network monitoring
  • Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
  • QoS supports real-time traffic classification and priority setting
  • LLDP can achieve automatic topology discovery, which is convenient for visual management
  • DHCP server can be used for distributing IP address with different strategies
  • File management is convenient for the device rapid configuration and online upgrading
  • Port statistics can be used for the port real time traffic statistics
  • ARP could be used for MAC address resolution
  • User password can conduct user hierarchical management to improve the device management security
  • Access control, ACL and 802.1X authentication can enhance the flexibility and security of the network
  • Storm suppression can restrain broadcast, unknown multicast and unicast
  • SSHD configuration could encrypt transmitted data, prevent DNS and IP spoofing
  • TELNET configuration and SSH configuration guarantee secure access to data
  • VLAN can be set to simplify network planning
  • Port Trunking can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
  • Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status
  • Port isolation could achieve port isolation in the same VLAN and save VLAN resources
  • PIM-DM/PIM-SM, IGMP Snooping and static multicast can be used to filter multicast
  • data to save network bandwidth
  • Ring, ERPS, STP/RSTP/MSTP can achieve network redundancy, preventing network storm
  • Ping, Traceroute, Port Loopback could achieve network diagnosis and troubleshooting
  • VRRP, RIP, OSPF could implement dynamic router configuration
  • Bypass function can prevent communication breakdown caused by power supply failure
  • NAT maps private IP address to the legal IP address of external network, which can slow the consumption of IP address space
  • PoE could power device via Ethernet, which has greatly saved the cost of device power supply
  • Loop detection could efficiently eliminate the influence caused by port loopback by detecting the existence of loopback


Standard & Protocol

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1X for 802.1X Authentication
IEEE 802.1AB for LLDP
IEEE 802.3af for PoE
IEEE 802.3at for PoE+
ITU-T G.8032 for ERPS


SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Port Statistics, Log Information, Static ARP, PoE Management


Classification of User Permissions, ACL, NAT, 802.1X Authentication, Radius Server Authentication, Port Alarm, Power Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration, Loop Detection, Aggregation Protection, Link Flapping Protection, DHCP Snooping

Switch Function

802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation

Unicast / Multicast

Static Multicast, IGMP-Snooping, PIM-SM, PIM-SM

Redundancy Technology



Ping, Traceroute, Port Loopback

Routing Technique


Time Management
