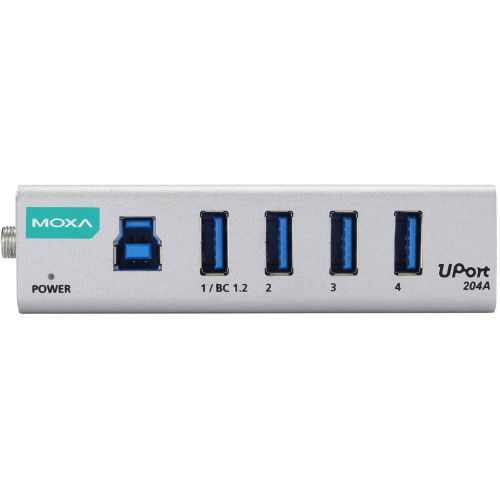

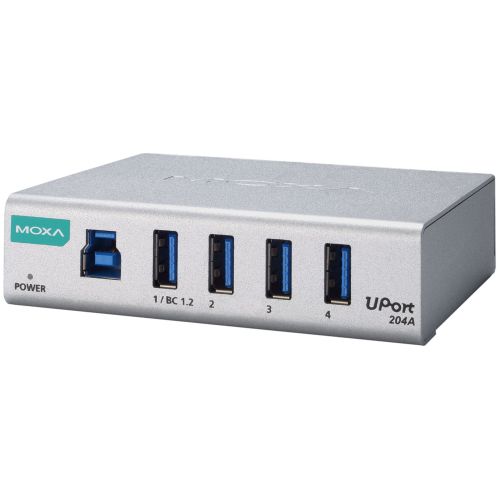

UPort 204A, 4-port general purpose USB 3.2 hubs, adaptor included, 0 to 60°C operating temperature
UPort 204A
4-port general purpose USB 3.2 hubs, adaptor included, 0 to 60°C operating temperature
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Certificati
Introduction
The UPort® 200A Series general-purpose USB 3.2 hubs can expand an USB port into 4 or 7 USB ports. The hubs are designed to provide true USB 3.2 Gen 1 SuperSpeed 5 Gbps data transmission rates through each port. The hubs are fully compliant with the USB plug-and-play spec and provide full 900 mA power per port, ensuring that your USB devices function properly. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.
Features and Benefits
- USB-IF certification
- USB 3.2 SuperSpeed capability
- IP30 aluminum housing
- DIN-rail housing and wall-mountable housing
- 5-year warranty
Specifications
USB Interface
USB Standards: USB 1.1/2.0 compliant, USB 3.2 Gen 1
Speed: 5 Gbps
USB Connector: UFP: type B, DFP: type A
No. of USB Ports: 5 (UFP: 1, DFP 4)
Power Parameters
Input Voltage: No. of power inputs: 1, 12 VDC
Power Connector: Power jack
Power Consumption: 2.65 A @ 12 VDC
Reverse Polarity Protection: Supported
Output Power Rating: Port 1: 900 / 1500 mA @ 5 VDC (BC 1.2 compatible), Rest of ports: 900 mA @ 5 VDC
Physical Characteristics
Housing: Metal
Dimensions: 85 x 27 x 100 mm (3.35 x 1.06 x 3.94 in)
Weight: 208 g (0.46 lb)
Installation: DIN-rail mounting (with optional kit), Wall mounting (with optional kit)
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
IEC 61000-4-8 PFMF
Safety: EN 62368-1, UL 62368-1, KC
Environmental Testing: IEC 60068-2-1
Freefall: IEC 60068-2-34
Declaration
Green Product: RoHS, CRoHS, WEEE
MTBF
Standards: Telcordia (Bellcore), GB
Time: 2,678,801 hours
