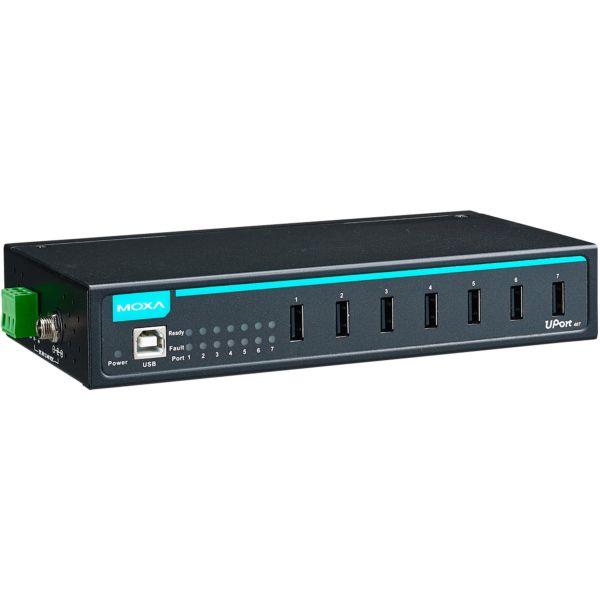

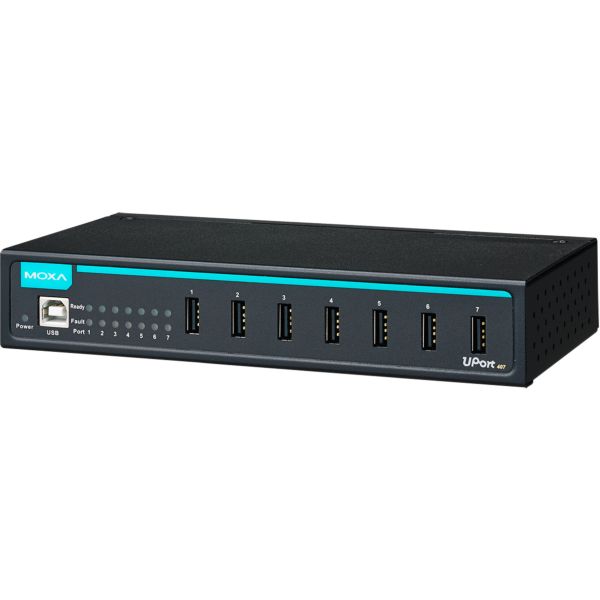

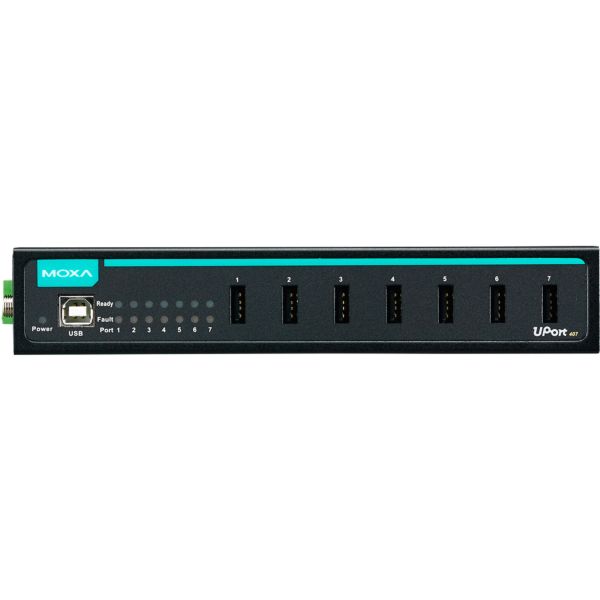

UPort 407-T w/o Adapter MOXA industrial usb hubs

Features and Benefits

• Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
• USB-IF certification
• Dual power inputs (power jack and terminal block)
• 15 KV ESD Level 4 protection for all USB ports
• Rugged metal housing
• DIN-Rail and wall mountable
• Comprehensive diagnostic LEDs
• Choose bus power or external power (UPort™ 404)

Introduction

Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices. The UPort™ 404 and UPort™ 407 are industrial-grade USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission through each port, even for heavy-load applications. USB-IF certified and fully compliant with the USB Plug & Play specification, the UPort™ 404 and UPort™ 407 provide a full 500 mA of power per port to ensure that your USB devices will function properly. Support for 12-40 VDC power also makes these hubs ideal for mobile applications. The  UPort™ 404 and UPort™ 407 industrial-grade USB 2.0 hubs have passed USB-IF (USB Implementers Forum) certification. USB-IF verifies a number of strict electrical requirements for high-speed hubs designed for the USB 2.0 specification. This means that the UPort™ 404 and UPort™ 407 support up to 480 Mbps USB 2.0 transmission, are fully compliant with interoperability requirements, have enough power for devices to function, and provide a successful transition back to high-speed operation from suspend mode. Electrostatic discharge (ESD) can be as severe as having more than one thousand volts of ESD with a high rise time (dv/dt) break through the junction layer of protective devices. To guard against serious damage, Moxa's UPort™ 404/407 USB hubs provide ESD level 4 (contact 8 KV, air 15 KV) protection, which increases the quality and value of the user’s end-product.

USB Interface

Compliance: USB 1.1/2.0 compliant
Upstream: 1 USB port, Type B connector
Downstream: UPort 404: 4 USB ports, Type A connectors
UPort 407: 7 USB ports, Type A connectors
Speed: 480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)
Supply Current: 500 mA max. per channel

Physical Characteristics

Housing: Aluminum
Weight:
     UPort 404: 850 g (1.87 lb)
     UPort 407: 950 g (2.1 lb)
Dimensions:
     UPort 404: 80 x 35 x 130 mm (3.15 x 1.38 x 5.12 in)
     UPort 407: 100 x 35 x 192 mm (3.94 x 1.38 x 7.55 in)

Environmental Limits

Operating Temperature:
     Standard Models: 0 to 60°C (32 to 140°F)
     Wide Temperature Models: -40 to 85°C (-40 to 185°F)
Storage Temperature:
     Standard Models: -20 to 75°C (-4 to 167°F)
     Wide Temperature Models: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 2000 m

Standards and Certifications

Safety: UL 508, LVD
EMC: CE, FCC
EMI: EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Green Product: RoHS, CRoHS, WEEE

Power Requirements

Input Voltage: 12 to 40 VDC external power
Power Consumption:
     UPort 404: 1300 mA @ 12 VDC, 690 mA @ 24 VDC, 470 mA @ 36 VDC
     UPort 407: 2300 mA @ 12 VDC, 1130 mA @ 24 VDC, 790 mA @ 36 VDC

MTBF (mean time between failures)

Time:
     UPort 404: 1,490,340 hrs
     UPort 407: 1,111,361 hrs
Database: Telcordia (Bellcore), GB

Warranty

Warranty Period: 5 years
