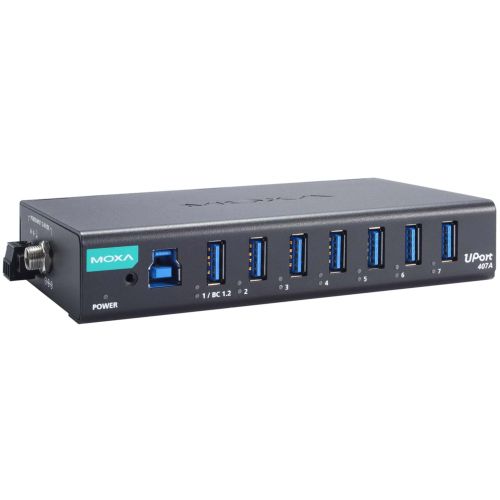

UPort 407A, 7-port industrial-grade USB 3.2 hubs, adaptor included, 0 to 60°C operating temperature
UPort 407A
7-port industrial-grade USB 3.2 hubs, adaptor included, 0 to 60°C operating temperature
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Certificati
Introduction
The UPort® 400A Series industrial-grade USB 3.2 hubs can expand an USB port into 4 or 7 USB ports. The hubs are designed to provide true USB 3.2 Gen 1 SuperSpeed 5 Gbps data transmission rates through each port, even for heavy-load applications. The UPort® 400A has been awarded the USB-IF SuperSpeed certification, which is an indication that the product is a reliable high-quality USB 3.2 hub. In addition, the hubs are fully compliant with the USB plug-and-play spec and provide full 900 mA power per port, ensuring that your USB devices function properly. The UPort® 400A hubs support a 12 to 48 VDC power range, which make them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.
Features and Benefits
- USB-IF certification
- USB 3.2 SuperSpeed capability
- Latching USB cable design for firmer connection
- Comprehensive diagnostic LEDs
- Dual power inputs (power jack and terminal block)
- DIN-rail housing and wall-mountable housing
- Rugged metal housing
Specifications
USB Interface
USB Standards: USB 3.2 Gen 1, USB 1.1/2.0 compliant
Speed: 5 Gbps
USB Connector: UFP: type B, DFP: type A
No. of USB Ports: 8 (UFP: 1, DFP 7)
Power Parameters
Input Voltage: 12 to 48 VDC, No. of power inputs: 2
Power Connector: Power jack, 3-pin terminal block
Reverse Polarity Protection: Supported
Input Current: 4.75A @ 12 VDC
Output Power Rating: Port 1: 900 mA / 1500 mA @ 5 VDC, BC 1.2 compliant, Rest of ports: 900 mA @ 5 VDC
Physical Characteristics
Housing: Metal
Dimensions: 80 x 27 x 140 mm (3.15 x 1.06 x 5.51 in)
Weight: 350 g (0.77 lb)
Installation: Wall mounting (with optional kit), DIN-rail mounting (with optional kit)
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
IEC 61000-4-8 PFMF
Safety: EN 62368-1, UL 62368-1, KC
Environmental Testing: IEC 60068-2-1
Freefall: IEC 60068-2-34
Declaration
Green Product: RoHS, CRoHS, WEEE
MTBF
Standards: Telcordia (Bellcore), GB
Time: 1,467,922 hours (minimum)
