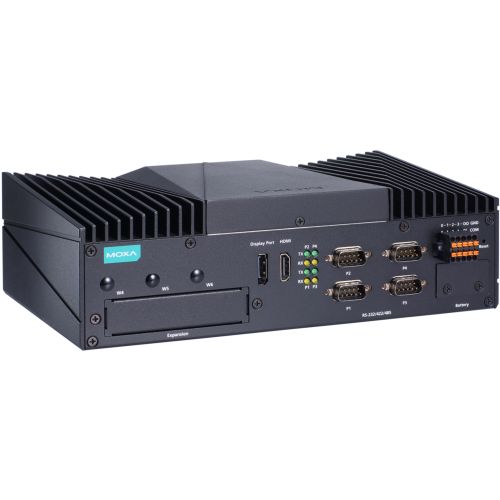

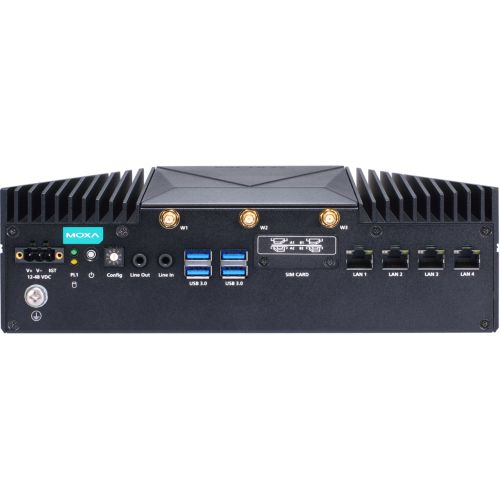

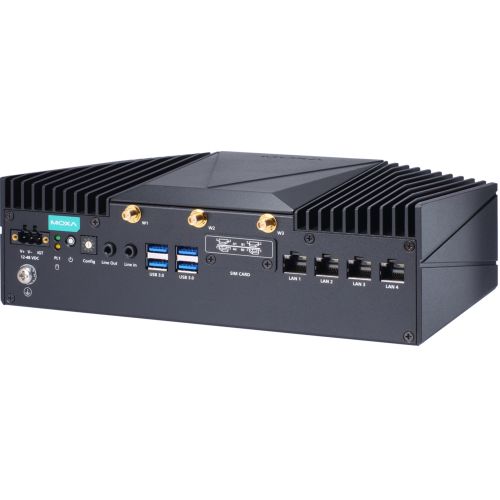

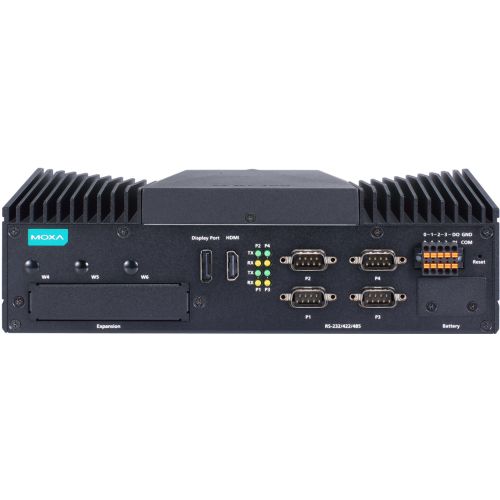

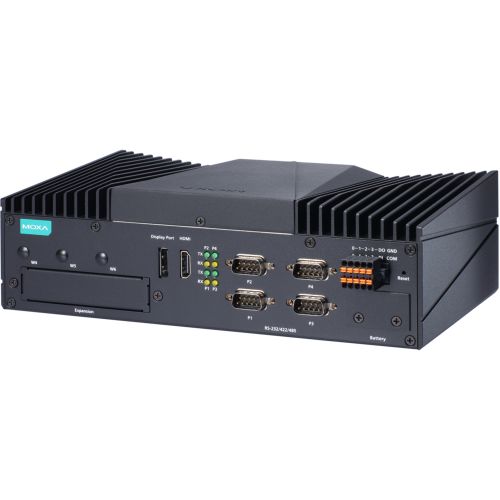

V2403C-KL3-T MOXA Box Computers

V2403C-KL3-T MOXA

V2403C-KL3-T

x86 Computers. Intel 7th Celeron i3-7100U 2.4GHz. 4GbE, 4COM, 4DI/4DO, HDMI/DP, mSATA, Dual 2.5 SSD/HDD slots, 2mPCIe, 4USB. SMA conn. 12-48VDC. -40 to 70

Clicca per maggiori dettagli

Q.tà':

Articoli Prezzo (IVA esc.)
1+ pz.€ 3.081,89
5+ pz.€ 2.927,80
10+ pz.€ 2.835,34

Prezzo di 1 pz. iva (22%) inclusa: € 3.759,91

Disponibilità: 10 gg lav

  >> I tempi protrebbero essere piĆ¹ lunghi da quelli indicati <<

Brand: MOXA

SKU: 118255

Model: V2403C-KL3-T

Features and Benefits

 Intel® Celeron®/Intel® Core™ i3/i5/i7 high performance network video recorder for rolling stock applications
 Multiple interfaces: Dual display (HDMI, DP), 4 serial ports, 4 GbE ports, 4 DIs, 4 DOs, 4 USB, and 2 Mini PCIe slots for wireless
 Power management with Ignition on/off delay (external rotate switch)
 E1 Mark, ISO 7637-2, and MIL-STD-810G compliant
 Compliant with EN 50121-4

 Introduction

The V2403C Series embedded computers are built around an Intel® Core™ i7/i5/i3 or Intel® Celeron® high-performance processor and come with up to 32 GB RAM, one mSATA slot, and two HDD/SSD for storage expansion. The computers are compliant with EN 50121-4, E1 mark, and ISO- 7637-2 standards making them ideal for rail-wayside and in-vehicle applications.

V2403C computers are equipped with a rich set of interfaces including 4 gigabit Ethernet ports, 4 RS-232/422/485 serial ports, 4 DIs, 4 DOs, and 4 USB 3.0 ports. In addition, they are also provided with 1 DisplayPort output and 1 HDMI output with 4K resolution.

Reliable connections and good power management are key to in-vehicle applications. The computers are provided with 2 mPCIe wireless expansion slots and 4 SIM-card slots to establish redundant LTE/Wi-Fi connectivity. In terms of power management, startup and shutdown delay mechanisms help in avoiding system malfunction and damage.

Specifications

Computer

CPU: Intel® Core™ i3-7100U processor (3M Cache, 2.4 GHz)
Storage Slot:
        2.5-inch HDD/SSD slots x 2
        mSATA slots x 1
Supported OS:
        Linux Debian 9
        Windows 10 Embedded IoT Ent 2019 LTSC 64-bit
System Memory Slot: SODIMM DDR4 slot x 2
DRAM: 32 GB max
Graphics Controller: Intel HD Graphics 620

Computer Interface

Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
Serial Ports: RS-232/422/485 ports x 4, software selectable (DB9 male)
Digital Output: DOs x 4
Digital Input: DIs x 4
USB 3.0: USB 3.0 hosts x 4, type-A connectors
Audio Input/Output: Line in x 1, Line out x 1, 3.5 mm phone jack
Video Output:
        HDMI x 1, HDMI connector (standard)
        DP x 1, DisplayPort connector (standard)

Wi-Fi Antenna Connector: RP-SMA x 3
Cellular Antenna Connector: SMA x 2, (optional)
GPS Antenna Connector: SMA x 1, (optional)
Expansion Slots: mPCIe slot x 2
SIM Format: Micro
Number of SIMs: 4

Digital Inputs

Connector: Screw-fastened Euroblock terminal
I/O Mode: DI
Isolation: 3k VDC
Sensor Type:
        Wet contact (NPN or PNP)
        Dry contact

Dry Contact:
        Logic 0: Short to GND
        Logic 1: Open

Wet Contact (DI to COM):
        Logic 0: 0 to 3 VDC
        Logic 1: 10 to 30 VDC

Digital Outputs
Connector: Screw-fastened Euroblock terminal
Current Rating: 200 mA per channel
I/O Type: Sink
Voltage: 0 to 30 VDC
Isolation: 3k VDC

LED Indicators

System:
        Power x 1
        Storage x 1
LAN: 2 per port (10/100/1000 Mbps)
Serial: 2 per port (Tx, Rx)

Serial Interface
Baudrate: 50 bps to 115.2 kbps
Connector: DB9 male
ESD: Contact: 6 kV; Air: 8 kV (level 3)
Isolation: 2 kV
Data Bits: 5, 6, 7, 8
Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Parity: None, Even, Odd, Space, Mark
Stop Bits: 1, 1.5, 2

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Power Parameters

Input Voltage: 12 to 48 VDC
Power Connector: Terminal block
Power Consumption (Max.): 70 W (max.)

Physical Characteristics

Housing: Aluminum
IP Rating: IP20
Dimensions (without ears): 250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in)
Weight: 2,500 g (5.51 lb)
Installation: Wall mounting (standard)

Environmental Limits

Operating Temperature: -40 to 70°C (-40 to 158°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

EMI:CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

EMC: EN 55032/35

Safety: EN 62368-1, IEC 62368-1, UL 62368-1
Railway: EN 50121-4
Shock: IEC 60068-2-27, IEC 61373, MIL-STD-810G
Vibration: IEC 60068-2-64, IEC 61373, MIL-STD-810G

Declaration

Green Product: RoHS, CRoHS, WEEE

MTBF

Time: 464,506 hrs
Standards: Telcordia (Bellcore), GB

Warranty

Warranty Period: 3 years
