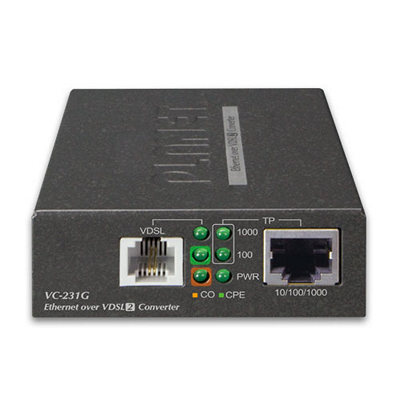

VC-231G Planet DSL Extender

 150/150Mbps Downstream/Upstream, High Performance Gigabit Ethernet over Phone Wire Solution

PLANET VC-231G, a new-generation and high-performance Gigabit Ethernet-over-VDSL2 Converter, works well with a pervasive telephone line network with a symmetric data rate of up to 150/150Mbps (G.INP, Sym, 8dB) over a distance of 300m and 22/10Mbps over a long distance of 1.4km. It is based on the two-core networking technology, Gigabit Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely the fastest data transmission speed over the existing copper telephone lines without the need of rewiring.

Specifications

Hardware Specifications

LAN Ports: 1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
VDSL Port: 1 VDSL2 RJ11 female phone jack
Twisted-pair telephone wires (AWG-24 or better) up to 1.4km
Phone Port: Additional splitter for POTS connection
Dimensions (W x D x H): 97 x 70 x 26 mm
Weight: 184g
Power Requirements: DC 5V, 2A external power
LED Indicators: 1 power: Green
1 1000BASE-T LNK/ACT: Green
1 100BASE-TX LNK/ACK: Green
1 VDSL:Green
1 CO: Green
1 CPE: Green
Housing: Metal

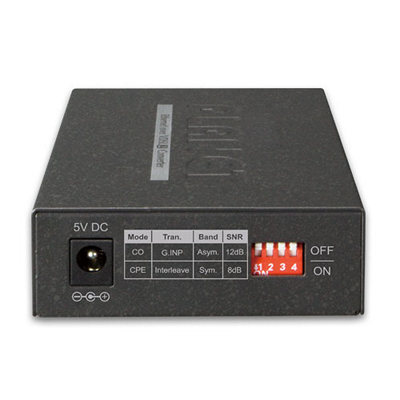

DIP Switch & Functionality: 4-position DIP switch
CO or CPE mode selectable
Selectable G.INP and interleaved mode
Selectable target Band plan
Selectable target SNR mode

Switch Specifications

Switch Processing Scheme: Store-and-Forward
Address Table: 2K entries
Flow Control: Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Maximum Packet Size: 1522bytes

System Specifications

VDSL Compliance: VDSL-DMT:
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a support)
ITU-T G.993.5 G.vectoring
ITU-T G.998
G.INP
ADSL Compliance: Capable of ADSL2/2+ standard:
ITU G.992.3 G.dmt.bis

ITU G.992.5 G.dmt.bisplus


Data Rate: Up to 24Mbp
Performance*(Downstream/Upstream): CO, Interleave, Asym, 8dB

　200M -> 190Mbps/87Mbps
　400M -> 161Mbps/60Mbps
　600M -> 118Mbps/36Mbps
　800M -> 59Mbps/24Mbps
　1000M -> 47Mbps/7Mbps
　1200M -> 39Mbps/4Mbps
　1400M -> 25Mbps/4Mbps

CO, Interleave, Sym, 8dB

　200M -> 147Mbps/139Mbps
　400M -> 112Mbps/110Mbps
　600M -> 75Mbps/73Mbps
　800M -> 44Mbps/44Mbps
　1000M -> 26Mbps/25Mbps
　1200M -> 24Mbps/13Mbps
　1400M -> 20Mbps/9Mbps

G.INP, ASym, 8dB

　200M -> 197Mbps/101Mbps
　400M -> 168Mbps/65Mbps
　600M -> 109Mbps/34Mbps
　800M -> 65Mbps/20Mbps
　1000M -> 53Mbps/7Mbps
　1200M -> 44Mbps/4Mbps
　1400M -> 28Mbps/4Mbps

G.INP, sym, 8dB

　200M -> 150Mbps/150Mbps
　400M -> 117Mbps/117Mbps
　600M -> 77Mbps/77Mbps
　800M -> 43Mbps/43Mbps
　1000M -> 29Mbps/28Mbps
　1200M -> 27Mbps/15Mbps
　1400M -> 22Mbps/10Mbps

CO, Interleave, Asym, 12dB

　200M -> 178Mbps/84Mbps
　400M -> 143Mbps/53Mbps
　600M -> 99Mbps/32Mbps　
　800M -> 48Mbps/22Mbps
　1000M -> 41Mbps/5Mbps
　1200M -> 33Mbps/3Mbps
　1400M -> 23Mbps/3Mbps

CO, Interleave, Sym, 12dB

　200M -> 135Mbps/127Mbps
　400M -> 96Mbps/96Mbps
　600M -> 61Mbps/59Mbps
　800M -> 40Mbps/40Mbps
　1000M -> 23Mbps/18Mbps
　1200M -> 22Mbps/9Mbps
　1400M -> 16Mbps/7Mbps

G.INP, Asym, 12dB

　200M -> 185Mbps/89Mbps
　400M -> 148Mbps/54Mbps
　600M -> 95Mbps/32Mbps
　800M -> 58Mbps/14Mbps
　1000M -> 46Mbps/6Mbps
　1200M -> 37Mbps/3Mbps
　1400M -> 25Mbps/3Mbps

G.INP, Sym, 12dB

　200M -> 140Mbps/140Mbps
　400M -> 97Mbps/97Mbps
　600M -> 60Mbps/60Mbps
　800M -> 35Mbps/35Mbps
　1000M -> 26Mbps/21Mbps
　1200M -> 25Mbps/11Mbps
　1400M -> 18Mbps/8Mbps

Standards Conformance

Standards Compliance: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-duplex flow control
IEEE 802.1p Class of Service
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a support)
ITU-T G.993.5 G.Vectoring & G.INP
ITU-T G.998
