VCG-2406WP-NR Planet Cellular Gateways

IP50 Industrial/Vehicle 5G NR Cellular Wireless Gateway with M12 PoE+(Sub-6 5G NR Global Band, compatible with 4G LTE, 2 SIM Card Slots, 802.11ax 1800Mbps, 2.4GHz and 5GHz Dual-band concurrent, 4 10/100/1000T M12 X-coded port with 2-port 802.3at PoE+, 1 DPlanet

VCG-2406WP-NR

IP50 Industrial/Vehicle 5G NR Cellular Wireless Gateway with M12 PoE+(Sub-6 5G NR Global Band, compatible with 4G LTE, 2 SIM Card Slots, 802.11ax 1800Mbps, 2.4GHz and 5GHz Dual-band concurrent, 4 10/100/1000T M12 X-coded port with 2-port 802.3at PoE+, 1 D

SPEDIZIONE GRATUITA

Quantità':

Prezzo per pezzo

€ 1.600,33

(IVA esclusa)

€ 1.952,40 (IVA inclusa)

Brand: PLANET

SKU: 141640

Model: VCG-2406WP-NR

VCG-2406WP-NR datasheet

Stampa scheda prodotto

Bisogno di aiuto?

Scrivici
una email

Chiamaci
051 6604005

Specifiche tecniche
Caratteristiche principali

Features

Highlights

Dual-WAN failover and Dual-WAN load balancing
Compliant with the IEEE 802.3at PoE+ with PD alive check/schedule management
1 x DI/DO and fault alarm
SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
Stateful packet inspection (SPI) firewall and content filtering
Blocks DoS/DDoS attack, port range forwarding
High Availability, AP Controller, Captive Portal and RADIUS
Planet NMS controller system and CloudNMS platform supported
-40 to 75 degrees C operating temperature; fanless designs

Hardware

3 x 10/100/1000BASE-T M12 X-coded LAN ports with 2-port IEEE 802.3at PoE+ injector function
1 x 10/100/1000BASE-T M12 X-coded WAN/LAN port, auto-negotiation, auto MDI/MDI-X
One M12 A-coded 5-pin male connector with alarm, digital input and digital output functions
One M12 K-coded 5-pin male connector with input voltage range of 9 to 54 VDC
1 x reset button

Cellular Interface

Supports multi-band connectivity with 5G NR (NSA/SA), LTE-FDD, LTE-TDD, and WCDMA
Built-in SIM and broadband backup for network redundancy

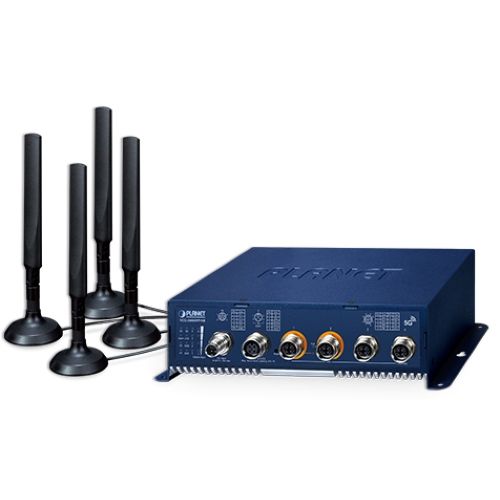

Four detachable antennas for 5G NR connection
LED indicators for signal strength and connection status

RF Interface Characteristics

Features 2.4GHz (802.11b/g/n/ax) and 5GHz (802.11a/n/ac/ax) dual band for carrying high load traffic
2T2R MIMO technology for enhanced throughput and coverage
Provides multiple adjustable transmit power control
High speed up to 1.8Gbps (600Mbps for 2.4GHz or 1200Mbps for 5GHz) wireless data rate

Power over Ethernet

Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
Backward compatible with IEEE 802.3af/at Power over Ethernet
Up to 2 ports of IEEE 802.3af / 802.3at devices powered
Supports PoE power up to 36 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
PoE management
Total PoE power budget control
Per port PoE function enable/disable
PoE port power feeding priority
Per PoE port power limitation
PD classification detection
PD alive check

IP Routing Feature

Static Route
Dynamic Route
OSPF

Firewall Security

Cybersecurity
Stateful Packet Inspection (SPI) firewall
Blocks DoS/DDoS attack
Content Filtering
MAC Filtering and IP Filtering
NAT ALGs (Application Layer Gateway)
Blocks SYN/ICMP Flooding

VPN Features

IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
Max. Connection Tunnel Entries: 60 VPN tunnels,
Encryption methods: DES, 3DES, AES, AES-128/192/256
Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512

Networking

Outbound load balancing for Ethernet WANs
Auto-failover between Ethernet WANs network
High Availability
Captive Portal
RADIUS Server
Static IP/PPPoE/DHCP client for WAN
DHCP server/NTP client for LAN
Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1, v2c, v3
MAC address clone
DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP

Others

Setup wizard
Dashboard for real-time system overview
Support for HTTP or HTTPS
Auto reboot
PLANET NMS System and Smart Discovery Utility for deployment management
PLANET CloudNMS for real-time monitoring

Applications

5G NR Cellular Communication Solution for Smart Transportation

PLANET VCG-2406WP-NR adopts advanced 5G NR cellular technology to enable high-speed and reliable connectivity for intelligent public transportation systems such as buses and metro/light rail. By breaking the traditional 100-meter limitation of wired RJ45 transmission, the VCG-2406WP-NR ensures seamless data communication between moving vehicles, station platforms, and the control center. To guarantee continuous service, it provides dual SIM card slots with failover protection, while supporting VLAN, VPN, Modbus, and centralized network management. With these capabilities, the VCG-2406WP-NR delivers stable, secure, and efficient wireless networking for vehicle-to-infrastructure and passenger information applications.

Hardware Specifications

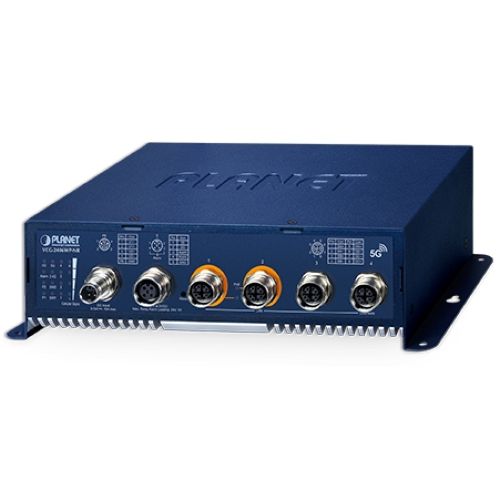

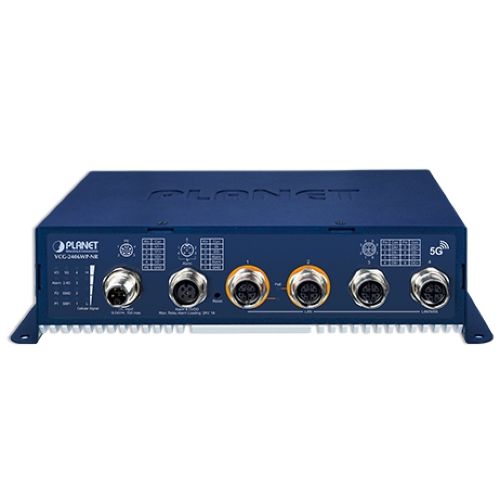

Copper Ports	Total: 4 × 10/100/1000BASE-T Ethernet ports, M12 8-pin X-coded female connectors Port assignments: Ports 1-2: LAN ports with IEEE 802.3at PoE (PSE) Port 3: Dedicated LAN port Port 4: Configurable LAN/WAN port

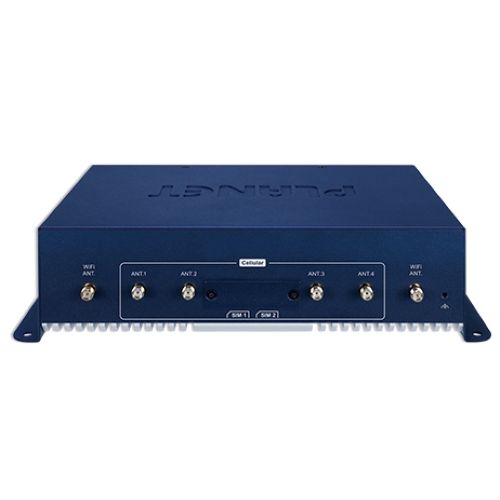

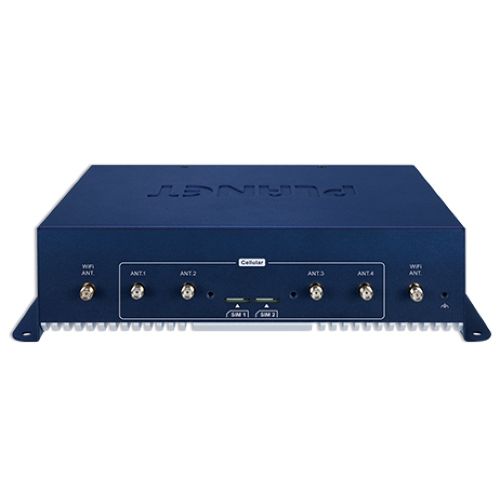

SIM Interface	2 SIM card slots supporting Nano-SIM
Cellular Antenna	4 × 5 dBi gain external antennas, SMA-type connectors, for 5G NR
Wireless Antenna	2 × 2.4GHz and 5GHz dual-band external antennas with RP-SMA female connectors for Wi-Fi peak gain: 4.33 dBi @2.4GHz, 4.47 dBi @5GHz
DI & DO Interfaces	1 x M12 A-coded 5-pin male connector for DI/DO and alarm interface Pin 1 for DI and Pin 2 for DO Pin 3/4 for Alarm Pin 5 for GND
Alarm	One relay output for port breakdown and power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input (DI)	One digital input (DI) Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input load to 24V DC, 10mA max.
Digital Output (DO)	One digital output (DO) Open collector to 24V DC, 100mA max.
Power Connector	Connector type: M12 K-coded, 5-pin female Pin assignment: Pin 1: V1- Pin 2: V1+ Pin 3: V2+ Pin 4: V2− Pin PE: GND
Number of Power Input	2
Power Requirements	Input voltage: 9-54 V DC
Power Consumption	Max.10.2 watts/34.8BTU (Power on without any connection) Max. 81 watts/276.38 BTU (Full loading)
Enclosure	IP50 aluminum case
Reset Button	Press < 5 seconds: System reboot Press > 5 seconds: Restore factory default settings

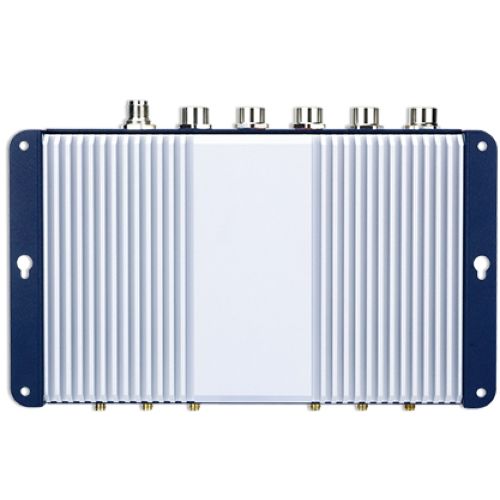

Installation	Desktop Wall-mount
Weight	1725g
Dimensions	245 × 140.5 × 60 mm (W × D × H)
LED Indicators	System P1 (Green): Power 1 status P2 (Green): Power 2 status Alarm (Red): System alarm indicator I/O (Red): Digital input/output status Ethernet Interfaces (Ports 1-4) 10/100/1000 LNK/ACT (Green): Link/activity at 10/100/1000 Mbps PoE PoE (Amber): Link/activity Wi-Fi 2.4G (Green): 2.4 GHz Wi-Fi status 5G (Green): 5 GHz Wi-Fi status Cellular SIM SIM1 (Green): SIM card 1 status SIM2 (Green): SIM card 2 status Cellular Signal Strength 4 levels (Green): Indicates signal strength (1-4 LEDs lit)

Multi Band Supports
5G	NSA: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 SA: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
LTE	LTE-FDD: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 LTE-TDD: B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 LAA: B46
UMTS/WCDMA	B1/ 2/ 4/ 5/ 8/ 19
GNSS	GPS/ GLONASS/ BDS/ Galileo/ QZSS
Data Transmission Throughput	5G SA Sub-6 data rate Max. 2.4 Gbps (DL) / Max. 900 Mbps (UL) 5G NSA Sub-6 data rate Max. 3.4 Gbps (DL) / Max. 550 Mbps (UL) LTE data rate Max. 1.6 Gbps (DL) / Max. 200 Mbps (UL) WCDMA data rate Max. 42 Mbps (DL) / Max. 5.76 Mbps (UL)

Power over Ethernet
PoE Standard	IEEE 802.3af / 802.3at PoE+ PSE
PoE Power Supply Type	End-span
PoE Power Output	Per port 54V DC, 36 watts (max.)
Power Pin Assignment	1/2 (+), 3/6 (-)
PoE Power Budget	60 watts (max.)
Max. Number of Class 4 PDs	2
PoE Management	PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring

Wireless
Standard	IEEE 802.11a/n/ac/ax (5 GHz) IEEE 802.11g/b/n/ax (2.4 GHz)
Band Mode	2.4 GHz and 5 GHz concurrent mode
Frequency Range	2.4GHz FCC: 2.412~2.462GHz ETSI: 2.412GHz~2.472GHz 5GHz FCC: 5.150 - 5.850 GHz ETSI: 5.150 - 5.725 GHz
Operating Channels	2.4GHz FCC: Channels 1-11 ETSI: Channels 1-13 5GHz FCC Non-DFS: 36, 40, 44, 48, 149, 153, 157, 161, 165 DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140 ETSI Non-DFS: 36, 40, 44, 48 DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 Note: 5 GHz channel availability may vary by country according to local regulations.
Modulation Type	802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM) 802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK)
Channel Width	20 MHz, 40 MHz, 80 MHz
Data Transmission Rates	Transmit: 600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz Receive: 600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz *The estimated transmission distance is based on the theory. The actual distance will vary in different environments.
Transmission Power	11b?23 dBm ±1.5 dBm @11Mbps 11g?20 dbm ±1.5 dBm @54Mbps 11g/n?20 dBm ±1.5 dBm @MCS7, HT20 17 dBm@MCS7,HT40 11a?19.5 dBm ±1.5 dBm @54Mbps 11a/n?19.5 dBm ±1.5 dBm @MCS7, HT20 17dBm@MCS7, HT40 11ac HT20: 20 dBm ±1.5 dBm @MCS8 11ac HT40: 17 dBm ±1.5 dBm @MCS9 11ac HT80: 14.5 dBm ±1.5 dBm @MCS9 11ax HT20: 20 dBm ±1.5 dBm @MCS9 11ax HT40: 17 dBm ±1.5 dBm @MCS9 11ax HT80: 14.5 dBm ±1.5 dBm @MCS11
Encryption Security	WEP: 64/128-bit encryption WPA / WPA2: TKIP / AES encryption WPA-PSK / WPA2-PSK: TKIP / AES encryption WPA3-PSK (SAE): AES encryption only 802.1X Authenticator
Wireless Advanced	Wi-Fi Multimedia (WMM) Auto channel selection Wireless output power management MAC address filtering

Wireless AP Management
Maximum Managed APs	128
Maximum AP Groups	10
Maximum APs per AP Group	128
Wireless Encryption/Security	WEP encryption security WPA Personal / Enterprise (TKIP / AES) WPA2 Personal / Enterprise (TKIP / AES) WPA3 Personal Enterprise Class 802.1x
AP Auto Discovery	Supports AP auto discovery
SSID/RF Profile	Allows multiple wireless profiles creation and maintenance
Cluster Management	Allows AP grouping for bulk provisioning and batch upgrading
Bulk AP Provisioning	Supports bulk AP provisioning with user-defined profiles
Bulk AP Firmware Upgrade	Supports bulk AP firmware upgrade
Coverage Heat Map	Enables real signal coverage of managed AP reflecting on the uploaded zone maps
Status Monitoring	Real-time traffic statistics reporting of AP and activated clients
Graphical Statistics	Real-time and historical visibility of traffic flow [2]
Profile Backup/Restoration	Provides SSID, radio profile backup/restoration
SSIDs-to-VLANs Mapping	Allows to configure SSIDs-to-VLANs mapping in supported APs

Supported Access Point Models [1]
Indoor AP	IAP-1800AX IAP-2400AX IAP-3600BE [2] IAP-3600BE-4PF [2] WDAP-3600BE WDAP-W3600BE WDAP-C5100BE WDAP-W3000AX WDAP-C3000AX WDAP-C7210E(V2) WDAP-C1800AX(V2) WDAP-W1800AXU WDAP-C7210E WDAP-W1200E WDAP-C7200E WDAP-W750E WNAP-C3220E WNAP-W2200UE
Outdoor AP	WDAP-3000AX WDAP-1800AX WDAP-850AC WDAP-802AC WBS-512AC WBS-502N WBS-202N WAP-552N WAP-252N WDAP-702AC WBS-502AC WBS-500N WBS-200N WAP-500N WAP-200N
Remarks	[1] The supported AP models may be changed after a firmware upgrade. [2] Planned via future firmware update.

Security Service
Firewall Security	Cybersecurity Stateful Packet Inspection (SPI) Blocks DoS/DDoS attack
ALG (Application Layer Gateway)	SIP, RTSP, FTP, H.323, TFTP
NAT	Port forwarding DMZ Host UPnP
Content Filtering	MAC filtering IP filtering Web filtering
Bandwidth Management	Outbound load balancing Failover for dual-WAN QoS (Quality of Service)

Networking
Routing Protocol	Routing: Static routing Dynamic routing: RIP, OSPF
VLAN	802.1q Tag-based, Port-based, Multi-VLAN
Multicast	IGMP Proxy
NAT Throughput	Up to 900 Mbps (test conditions TBA)
Outbound Load Balancing	Supported algorithms: Weight
Protocol	IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3,
Key Features	HA (High Availability) Captive Portal RADIUS Server/Client AP Control

Advanced Functions
VPN	IPSec / Remote Server: Net-to-Net, Host-to-Net modes GRE (Generic Routing Encapsulation) PPTP Server L2TP Server SSL VPN Server / Client (OpenVPN)
VPN Tunnels	Up to 60 (test conditions TBA)
VPN Throughput	Up to 108 Mbps (test conditions TBA)
Encryption Methods	DES 3DES AES (AES-128 / AES-192 / AES-256)
Authentication Methods	MD5 SHA-1 SHA-256 SHA-384 SHA-512

Management
Basic Management Interfaces	Web browser SNMP v1, v2c PLANET Smart Discovery utility NMS controller supported
Secure Management Interfaces	SSHv2 TLS v1.2 SNMP v3
System Log	System event log
Others	Setup wizard Dashboard System status / service monitoring Statistics Connection status Auto reboot Diagnostics

Standards Conformance
Regulatory Compliance	CE, FCC, E-Mark Vehicle Compliance Ready
Stability	IEC60068-2-32(Free fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration)

Environment
Operating	Temperature: -40 ~ 75 degrees C Relative humidity: 5 ~ 90% (non-condensing)
Storage	Temperature: -40 ~ 85 degrees C Relative humidity: 5 ~ 90% (non-condensing)
