VF-106G-KIT

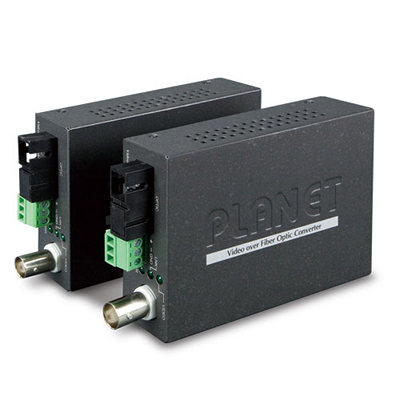

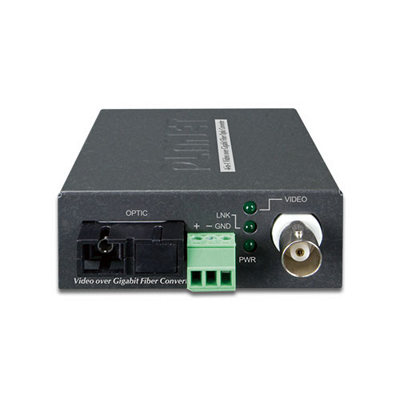

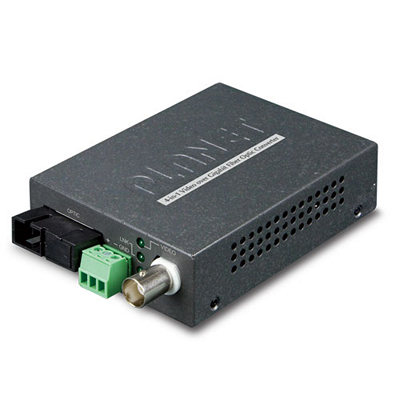

1-Channel 4-in-1 Video over Gigabit Fiber Bundle Kit (VF-106G-T + VF-106G-R)
Bisogno di aiuto?
Long Distance Analog Surveillance Transmission System
To deploy AHD/CVI/TVI/CVBS analog camera in a remote place efficiently and provide high video quality and reliable signal, PLANET has developed the video over Gigabit fiber media converter kit, VF-101G/102G/106G-KIT, which is ideal for extending the distance and signal conversion by transmitting the AHD/CVI/TVI/CVBS video and data over the fiber-optic cable. Adopting the intelligent encoding/decoding technology and with the compact box, the VF-101G/102G/106G-KIT video over fiber media converter enables videos to be delivered in high quality over a distance of up to 20km long.
Features and Benefits
- Compliant with hybrid video (AHD/TVI/CVI/CVBS)
- Long-distance data transmission of 20km
- Status indication for power supply, optical signal and video
- High-speed synchronous digital transmission technology
- Guarantees safe transmission under poor electromagnetic environment
- Video and data transmission over Gigabit fiber optic cable
- PAL, NTSC, SECAM compatible
- Data type: RS485
- 8-/10-bit digital Video Signal sampling
- Standalone or work with PLANET MC-700/1500/1500R media converter chassis
- Compact size, wall-mount design, easy installation
Specifications
Video Characteristics
Video Channel: 1 channel bi-direction
Signal Mode: NTSC/PAL/SECAM
Video Connector: BNC
Video Bandwidth: 60MHz
Video Input/Output Voltage: 1.0 Vpp/typical peak-to-peak value
Video Input/Output Impedance: 75ohm/unbalanced interface
Supported Video Type: 1080p: AHD/TVI/CVI
480p: CVBS
Video Digital Bit Width: 8/10 bit
Differential Gain (DG): < 1.3% (typical value)
Differential Phase (DP): < 1.3° (typical value)
SNR Weighted: > 67dB (typical value)
Data Interface:
Data Channel: 1 channel
Physical Protocol: RS485
Operation Mode: Simplex
Data Connector: 3-pin terminal block with screw clamps
Data Rate: DC-115.2Kbps
Bit Error Rate (BER): < 10ns
Optical Interface
Optical Connector: WDM-SC
Distance: 20km for single mode
Optical Wavelength: TX: 1310nm
RX: 1550nm
Launch Power (dBm): Max.: 0, Min.: -9
Receive Sensitivity (dBm): -26
Max. Input Power (dBm): -3
Cable: 9/125μm single mode cable
Hardware Specifications
LED Indicators: Power
Video
Link (fiber optic)
Dimensions (W x D x H): 94 x 70 x 26 mm
Weight: 200g
Power Requirement: 5V DC, 2A
Power Consumption: 4.8 watts (maximum)
Mechanical: Metal
Installation: Wall-mountable, DIN-rail (with optional kit), chassis installation (with optional chassis)
Compatible Converter Chassis: MC-700/MC-1500/MC-1500R
Standards Conformance
Regulatory Compliance: FCC, CE
Environment
Operating: Temperature: -25 ~ 70 degrees C
Relative Humidity: 0 ~ 95% (non-condensing)
Storage: Temperature: -30 ~ 80 degrees C
Relative Humidity: 0 ~ 95% (non-condensing)
