VIP-1260PT
High Definition Color POE Gigabit IP Phone: (2.8-inch Color LCD, Opus & G.722 HD Voice, 6 SIP Lines, Dual Gigabit LAN, 802.3at/af POE, Multi-Language, 3-way Conferencing, Caller ID, DND, TLS, PoE, QoS, VPN, VLAN, STUN, IPv6, Auto Provision, TR069)
Bisogno di aiuto?
Intuitive Design Brings Quality Communication
PLANET VIP-1260PT is a new six-line SIP enterprise Gigabit IP phone with 2.8" LCD display that brings lifelike richness and voice quality to phone calls. The VIP-1260PT is a reliable communication device as it features ease of use, versatility, high-quality design and superb audio performance. Besides, its full duplex speakerphone system with HD voice can definitely make communication between two or more business parties crystal-clear with no noise interference in the background as it supports the G.722 wideband and Opus codec.
Applications
Enhanced, Full-Featured SIP IP Phone
The VIP-1260PT is optimized for executive use for administrative assistants and those working with bandwidth-intensive application on collocated PCs. Four programmable extension keys could be configured as IP PBX features like BLF, MWI, DND, Call Forward, Call Park and many others.
Enterprise IP Telephony Deployment of VIP-1260PT
Help your teams move faster with exceptional audio quality and built-in flexibility. The VIP-1260PT is much easier to install and configure than the traditional phone system. Its low cost and high-definition voice quality give you value for money. Based on standard SIP 2.0, it is compatible with all the standard SIP-based servers.
Features and Benefits
Highlights
- IETE SIP compliant with Transport Layer Security
- Wideband G.722 HD and Opus audio
- 2.8-inch 320 x 240 color LCD monitor
- 6 identities/accounts with 2-line color LED key
- Dual Gigabit and IEEE 802.3af/at PoE compliant
- Multi-language support via the web UI and LCD
- IPv6, VPN, VLAN, QoS, TR069 and auto-provisioning
Hardware Specifications
Lines (Direct Numbers): 6 SIP Lines

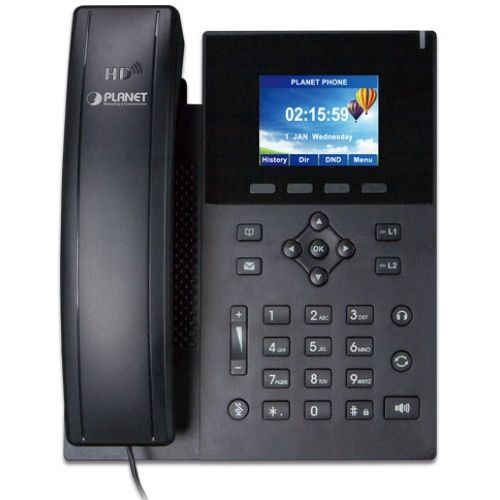

Display: LCD x 1: 2.8 inch (320 x 240) color-screen LCD
Feature Keys:
Keypad: 31 keys, including
4 Soft-keys
6 Function keys
5 Navigation keys
12 Standard Phone Digits keys
3 Volume Control keys, Up/Down/Mute (Microphone)
1 Hands-free key

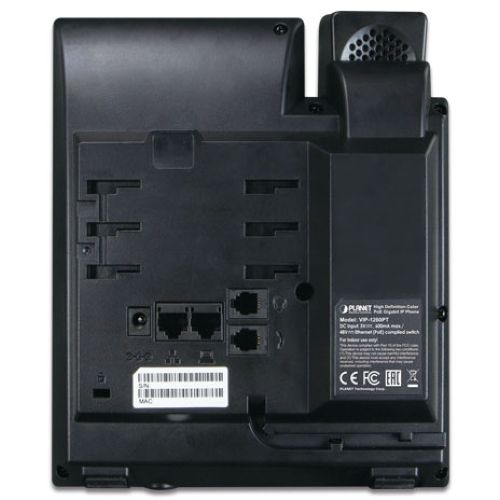

Network Interfaces:
RJ45 10/100/1000 Mbps Ethernet jacket x 2:
Network x 1 (802.3af PoE Class 2 enabled)
PC x 1 (Bridged Network)
Connectors:
HD hands-free speaker (0 ~ 7KHz) x 1
HD hands-free microphone (0 ~ 7KHz) x 1
HD handset (RJ9) x 1
Power Requirements: IEEE 802.3af
5V (Optional External Power Supply)
Power Consumption: Idle – ~ 1.7W, Peak – ~5.7W
Weight: 700g
Dimensions (W x D x H): 180 x 210 x 80 mm
