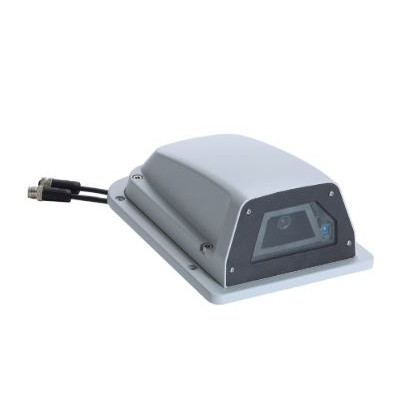

VPort 06EC-2V80M-T
EN50155,FHD,H.264/MJPEG external IP camera,M12 connector, PoE,8.0mm Lens,-40 to70°C
Features
› IP67-rated dustproof and waterproof protection
› 1920 x 1080 resolution at up to 60 fps
› Built-in front glass heater to remove snow and frost
› iCapTrue image enhancement technology
› DynaStream™ maximizes network efficiency
› CBR Pro™ provides high-quality images under limited-bandwidth
conditions
› ONVIF Profile S supported for interoperability
› Complies with all EN 50155 mandatory test items
Introduction
The VPort 06EC-2V outdoor IP cameras support 1080P 1920 x 1080
resolution video images at up to 60 frames per second. iCapTrue’s
new image enhancement technology uses an advanced AE and AWB
algorithm to produce better image quality in a variety of environments.
The chassis design is IP67 rated, and has been shown to provide
ample dust and rain protection, and with a built-in front glass
heater and a tough outer cover, the cameras have the versatility
and ruggedness needed for outdoor mobile IP video surveillance
applications. In addition, models supporting a wide -40 to 70°C
operating temperature range are available.
Camera
Sensor: 1/3” HD progressive scan CMOS
Lens:
• 3.6 mm, F1.6: Diagonal 99°, Horizontal 70°, Vertical 39°
• 4.2 mm, F1.6: Diagonal 82°, Horizontal 62°, Vertical 34°
• 6.0 mm, F1.8: Diagonal 62°, Horizontal 43°, Vertical 24°
• 8.0 mm, F1.6: Diagonal 42°, Horizontal 33°, Vertical 17°
Illumination (low light sensitvity):
• Color: 0.2 Lux @ F1.6
• Black/White: 0.05 Lux
Camera Angle: Pan ±5°, Tilt +10/-5° (controlled manually)
ICR Control (for day & night): Auto
Synchronization: Internal
White Balance: ATW/AWB/Custom settings, with 4 preset color
temperatures
Electronic Shutter: Auto, Fixed (1/30 to 1/25000 sec)
DNR: Built-in
WDR: On/Off, up to 100 dB
AGC (auto gain control): 2X, 4X, 8X, 16X
Flickerless Control: Automatic, 50 Hz, 60 Hz
Auto Exposure: Level ±5
Image Rotation: Flip, Mirror, 90°, 180°, 270° rotation
Image Setting: Manual tuning with saturation, sharpness, and contrast
Black Level Control: High/Medium/Low
Video
Video Compression: H.264 (ISO/IEC 14496-10) or MJPEG
Video Output: via Ethernet
Video Streams: 4
Video Viewing:
• CBR Pro™ for good image quality in limited bandwidth transmissions
• DynaStream™ support for automatic frame rate adjustment
• 3 configurable privacy mask areas
• Adjustable image size and quality
• Timestamp and text overlay
• OSD (On Screen Display) position adjustable
• Maximum of 5 simultaneous unicast connections
• Digital PTZ
Video Resolution and fps (frames per second):
QCIF:
NTSC:
Size: 176x112
Max. FPS: 60
PAL:
Size: 176x144
Max. FPS: 50
CIF:
NTSC:
Size: 352x240
Max. FPS: 60
PAL:
Size: 352x288
Max. FPS: 50
VGA:
NTSC:
Size: 640x480
Max. FPS: 60
PAL:
Size: 640x480
Max. FPS: 50
4CIF:
NTSC:
Size: 704x480
Max. FPS: 60
PAL:
Size: 704x576
Max. FPS: 50
FULL D1:
NTSC:
Size: 720x480
Max. FPS: 60
PAL:
Size: 720x576
Max. FPS: 50
SVGA:
NTSC:
Size: 800x600
Max. FPS: 60
PAL:
Size: 800x600
Max. FPS: 50
HD:
NTSC:
Size: 1280x720
Max. FPS: 60
PAL:
Size: 1280x720
Max. FPS: 50
WXGA:
NTSC:
Size: 1280x800
Max. FPS: 60
PAL:
Size: 1280x800
Max. FPS: 50
1080p:
NTSC:
Size: 1920x1080
Max. FPS: 60
PAL:
Size: 1920x1080
Max. FPS: 50
Network
Protocols: TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP, UPnP, RTP,
RTSP, ICMP, QoS, IGMPv3, SNMPv1/v2c/v3, DDNS, TFTP, ARP,
DHCP, OPT66/67, IPv6, IEC 61375-2-3
Ethernet: 1 10/100BaseT(X) isolated Ethernet port, 4-pin M12 Dcode
female connector, with 20 cm cable
Local Storage
SD Socket: Micro SD socket
Interface: SDXC (can support up to 1 TB)
GPIO
Digital Outputs: 1, 5-pin M12 male connector with 20 cm cable, 24
VDC / 1 A
Power Requirements
Camera: Power over Ethernet (IEEE 802.3af)
Heater Input: 24 VDC (for defrosting)
Physical Characteristics
Housing: Metal housing with IP67 rain and dust protection
Dimensions: 83 x 168 x 223 mm (3.27 x 6.61 x 8.78 in)
Weight: 1.63 kg (3.59 lb)
Alarms
Intelligent Video: Camera tamper
Video Motion Detection: 3 independently configurable areas
Shock: G sensor for shock detection
Humidity: Detects camera’s internal humidity
Scheduling: Daily repeat timing schedule
Imaging: JPEG snapshots for pre/trigger/post alarm images
Custom Alarms: HTTP event servers for setting customized alarm
actions
Email/FTP Messaging: Automatic transfer of stored images via email
or FTP as event-triggered actions
Pre-alarm Buffer: 50 MB video buffer for JPEG snapshot images
Security
Password: User-level password protection
Filtering: By IP address
Encryption: HTTPS, SSH
Environmental Limits
Operating Temperature:
Standard models: -25 to 55°C (-13 to 131°F)
Wide Temp. models: -40 to 70°C (-40 to 158°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 2000 m
Standards and Certifications
Safety: UL 60950-1
Rail Traffic: EN 50155, EN 50121-3-2:2015
EMI: FCC Part 15, CISPR (EN 55032) Class A
EMS:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
Shock: IEC 61373
Freefall: IEC 60068-2-32
Vibration: IEC 61373
Salt Spray Test: ASTM B368 (CASS) 125 hours
MTBF (mean time between failures)
Time: 480,269 hrs
Standard: Telcordia TR/SR
Warranty
Warranty Period: 5 years
Minimum Viewing System Requirements
CPU: Pentium 4, 2.4 GHz
Memory: 512 MB of memory
OS: Windows XP with SP3 or above, Windows 7
Browser: Internet Explorer 8.x or above
Multimedia: DirectX 9.0c or above
Software Development
VPort SDK PLUS: Includes CGI commands, ActiveX Control, and API
library for customized applications or system integration for third-party
developers
Standard: ONVIF Profile S
