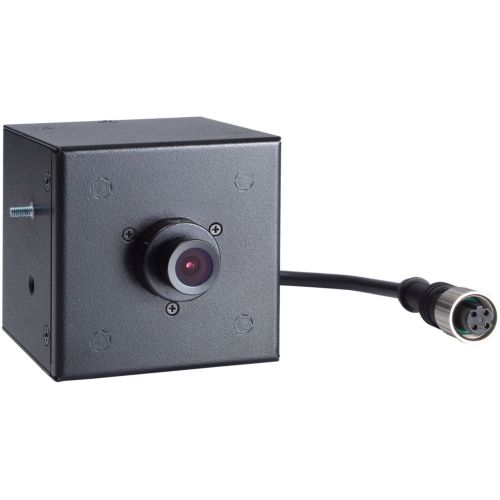

VPort P06HC-1V42M
EN 50155, HD image, cubic IP camera, M12 connector, PoE, 4.2 mm lens, -40 to 55
Features and Benefits
- 1/2.7” progressive scan camera with maximum 1280 x 800 resolution at up to 30 fps
- High quality video imaging with DNR and WDR
- Up to 3 H.264 or MJPEG independent video streams
- DynaStream™ for optimized network efficiency
- CBR Pro™ for high image quality in limited bandwidth transmissions
- Supports DHCP options 66 and 67 for auto-configuration
- ONVIF support for standardization and interoperability
Introduction
The VPort P06HC-1V Series cubic IP cameras provide an HD (720P, 1280 x 720) video image, and feature 3 H.264 video streams, giving them the versatility and ruggedness to excel in many different installations and environments for IP video surveillance applications. In addition, the cameras comply with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for a variety of industrial applications. The cameras feature a -40 to 55°C operating temperature, a rugged M12 Ethernet port, PoE power inputs, and a selectable lens.
Specifications
Ethernet Interface
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 1
Ethernet Software Features
Protocols: TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS
Security Functions
Password: User-level password protection
Filter: IP address
Encryption: HTTPS
Power Parameters
No. of Power Inputs: 1
Source of Input Power: PoE (IEEE 802.3af)
Input Current: 0.17 A @ 48 VDC
Camera Characteristics
Sensor: 1/2.7-in HD progressive scan CMOS
Lens: f=4.2 mm, F1.8, Diagonal 87°, Horizontal 80°, Vertical 43°
Minimum Illumination: Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
Synchronization: Internal
White Balance: ATW/AWB
Electronic Shutter: Auto (1/30 to 1/25000 sec)
S/N Ratio: Maximum 50 dB (AGC off; DNR on)
DNR (digital noise reduction): Built-in DNR
WDR (wide dynamic range): 110 dB
Flickerless Control: Automatic, 50 Hz, 60 Hz modes
Image Rotation: Flip, Mirror, and 180° rotation
Image Setting: Manual tuning with saturation, sharpness, and contrast
AGC (auto gain control): 2X, 4X, 8X, 16X, 32X, 64X
BLC (back light compensation): High/Medium/Low
Physical Characteristics
Housing:Metal
Dimensions:60 x 60 x 74.6 mm (2.36 x 2.36 x 2.94 in)
Weight:300 g (0.66 lb)
Installation:Flush mounting
