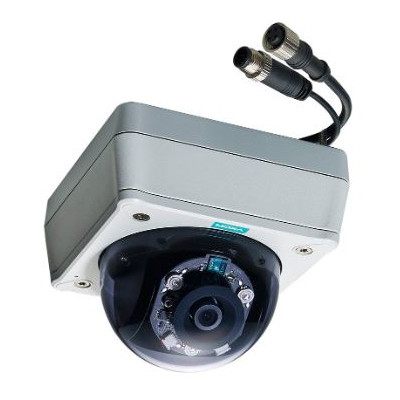

VPort P16-1MP-M12-IR-CAM80
EN50155, HD image, fixed-dome IP camera, PoE, M12 connector, IR, MIC, 1DI, 8.0mm lens, -25 to 55°C
Features and Benefits
- Complies with all EN 50155 mandatory test items* (T1 temperatures: -25 to 55°C; TX temperatures: -40 to 70°C)
- Maximum 1280 x 800 resolution at up to 30 frames/second
- Built-in IR illuminator and ICR (Infrared Cutfilter Removal) for day & night images
- Up to 3 H.264 or MJPEG independent video streams
- DynaStream™ support for maximum network efficiency
- CBR Pro™ support for high image quality in limited bandwidth transmissions
Introduction
The rugged VPort P16-1MP-M12-IR cameras produce HD (720P, 1280 x 720) video images and feature an H.264/MJPEG IP dome, giving them the versatility and ruggedness needed for mobile IP video surveillance applications in a variety of different installations and environments. In addition, the cameras feature EN 50155 compliance, vandal-proofing (EN 62262 IK10), a -25 to 55°C or -40 to 70°C (T models) operating temperature, a rugged M12 Ethernet port, PoE power input, a built-in microphone, a digital input, IP66 rain and dust protection, and an IR illuminator for day & night image capability.
Camera
Sensor: 1/2.7” HD progressive scan CMOS
Lens: 3.6, 8 mm fixed focal length
Angle of View:
• 3.6 mm, F1.6: Diagonal 120°, Horizontal 96°, Vertical 56°
• 8.0 mm, F1.8: Diagonal 48°, Horizontal 38°, Vertical 24°
Illumination (low light sensitvity):
• Color: 0.2 lux @ F1.2
• B/W: 0.05 lux @ F1.2 (0 lux if IR illuminator is on)
Camera Angle: Pan 350°, Tilt 65° (controlled manually)
ICR Control (for day & night): Auto
IR Illumination: 3 IR LED illuminators, max. 5 meter effective distance.
On/Off controlled manually (night mode) or by the light sensor.
Synchronization: Internal
White Balance: ATW/AWB
Electronic Shutter: Auto, Fixed (1/30 to 1/25000 sec)
S/N Ratio: 50 dB (Gamma, Aperture, AGC, OFF; DNR ON)
DNR: Built-in
WDR: Levels 1-8, up to 115 dB
AGC (auto gain control): 2X, 4X, 8X, 16X, 32X, 64X
Flickerless Control: Automatic / 50 Hz / 60 Hz
Auto Exposure: Level ±5
Image Rotation: Flip, Mirror, and 180° rotation
Image Setting: Manual tuning with saturation, sharpness, and contrast
Black Level Control: High/Medium/Low
Video
Video Compression: H.264 (ISO/IEC 14496-10) or MJPEG
Video Output: via Ethernet
Video Streams: 3 independent H.264 or MJPEG video streams
Video Resolution and FPS (frames per second):
QCIF:
NTSC:
Size: 176x112
Max. FPS: 30
PAL:
Size: 176x144
Max. FPS: 25
CIF:
NTSC:
Size: 352x240
Max. FPS: 30
PAL:
Size: 352x288
Max. FPS: 25
VGA:
NTSC:
Size: 640x480
Max. FPS: 30
PAL:
Size: 640x480
Max. FPS: 25
4CIF:
NTSC:
Size: 704x480
Max. FPS: 30
PAL:
Size: 704x576
Max. FPS: 25
Full D1:
NTSC:
Size: 720x480
Max. FPS: 30
PAL:
Size: 720x576
Max. FPS: 25
SVGA:
NTSC:
Size: 800x600
Max. FPS: 30
PAL:
Size: 800x600
Max. FPS: 25
HD:
NTSC:
Size: 1280x720
Max. FPS: 30
PAL:
Size: 1280x720
Max. FPS: 25
WXGA:
NTSC:
Size: 1280x800
Max. FPS: 30
PAL:
Size: 1280x800
Max. FPS: 25
Video Viewing:
• CBR Pro™ for good image quality in limited bandwidth transmissions
• DynaStream™ support for automatic frame rate adjustment
• 3 configurable privacy mask areas
• Adjustable image size and quality
• Timestamp and text overlay
• OSD (On Screen Display) position adjustable
• Maximum of 5 simultaneous unicast connections
Audio
Audio Inputs: 1, built-in microphone
Audio Format: Mono, PCM (G.711)
Network
Protocols: TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP, UPnP, RTP,
RTSP, ICMP, QoS, IGMPv3, SNMPv1/v2c/v3, DDNS, TFTP, ARP,
DHCP, OPT66/67
Ethernet: 1 10/100BaseT(X) Ethernet port, 4-pin M12 Dcode female
connector, with 20 cm cable
GPIO
Digital Inputs: 1, 5-pin M12 male connector with 20 cm cable
• High: +13 V to +30 V
• Low: -30 V to +3 V
Power Requirements
Input: Power-over-Ethernet (IEEE 802.3af)
Power Consumption: 8 W (max.)
Physical Characteristics
Housing: Metal housing and dome cover with IP66 rain and dust protection
Dimensions: 125 x 125 x 120.7 mm (5.6 x 5.6 x 4.8 in)
Weight: 820 g (1.8 lb)
Installation: Surface (ceiling) mounting, flush (recessed) mounting
Alarms
Intelligent Video: Camera tamper
Video Motion Detection: 3 independently configurable areas
Scheduling: Daily repeat timing schedule
Imaging: JPEG snapshots for pre/trigger/post alarm images
Custom Alarms: HTTP event servers for setting customized alarm actions
Email/FTP Messaging: Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-alarm Buffer: 12 MB video buffer for JPEG snapshot images
Security
Password: User level password protection
Filtering: By IP address
Encryption: HTTPS, SSH
Environmental Limits
Operating Temperature: Standard models: -25 to 55°C (-13 to 131°F)
Wide Temp. model: -40 to 70°C (-40 to 158°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 2000 m
Standards and Certifications
Safety: UL 60950-1
Rail Traffic: EN 50155
EMI: FCC Part 15, CISPR (EN 55032) Class A
EMS:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
Shock: IEC 61373
Freefall: IEC 60068-2-32
Vibration: IEC 61373
Vandal Resistance: EN 62262, IK10 level
Salt Spray Test: ASTM B117
MTBF (mean time between failures)
Time: 1052184 hrs
Standard: Telcordia TR/SR
Warranty
Warranty Period: 5 years
Minimum Viewing System Requirements
CPU: Pentium 4, 2.4 GHz
Memory: 512 MB of memory
OS: Windows XP with SP3 or above, Windows 7
Browser: Internet Explorer 8.x or above
Multimedia: DirectX 9.0c or above
Software Development
VPort SDK PLUS: Includes CGI commands, ActiveX Control, and API
library for customized applications or system integration for third-party
developers (the latest version of SDK is available for download from
Moxa’s website).
Standard: ONVIF Profile S
