WDAP-3600BE
IP65 Wi-Fi 7 802.11be, Dual Band 3600Mbps Outdoor Wireless AP (one 1G/2.5Gbps 802.3at PoE+ PD WAN/LAN port + one 1Gbps LAN port, 2 x 5dBi dual-band omni antenna, -30 to 70C, 802.1Q VLAN, supports NMS-500/NMS-1000V controller, Cloud-based CloudNMS and mobi
Bisogno di aiuto?
Features
Standard-compliant Outdoor Wireless LAN
- Compliant with IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) dual-band wireless technology
- Dual-band concurrent operation with a maximum wireless throughput of 3600Mbps (2.4GHz: 688Mbps, 5GHz: 2882Mbps)
- Built-in support for advanced Wi-Fi 7 features: 4096-QAM, OFDMA, MU-MIMO, Beamforming, BSS Coloring, Seamless Roaming (802.11k/v/r)
Rugged Outdoor Hardware Design
- 1 × 100/1000/2500BASE-T PoE+ WAN port (802.3at PoE+ PD)
- 1 × 10/100/1000BASE-T LAN port
- Dual-band high-gain external antennas for extended outdoor coverage
- IP-rated weatherproof housing with wide temperature support (-30°C ~ 70°C)
Multiple Operation Modes and Wireless Features
- Flexible operation modes: Gateway, AP, Repeater, WISP
- Supports up to 8 SSIDs (4 per band) with VLAN-to-SSID mapping
- Wi-Fi Multimedia (WMM) for optimized audio/video streaming
- Real-time Wi-Fi channel analysis chart for interference management
- Seamless roaming with 802.11k/v/r to ensure uninterrupted client mobility
Secure Network Connection
- Comprehensive wireless security with WPA3 Personal, WPA2/WPA3 Personal, WPA2 Enterprise, WPA/WPA2 Enterprise
- VLAN support with SSID-to-VLAN mapping, plus IP/MAC filtering and client isolation
- Enhanced security with ACL management to prevent unauthorized access
Easy Deployment and Centralized Management
- Powered by 802.3af/at PoE+, simplifying installation by combining power and data through a single Ethernet cable
- Fully compatible with PLANET CloudNMS app, and AP Controllers, enabling centralized monitoring and management
- Self-healing mechanism through system auto-reboot scheduling
- User-friendly Web GUI and setup wizard for quick configuration and monitoring
Applications
Smart Cities and Public Wi-Fi
The WDAP-3600BE enables municipalities to build next-generation smart city networks, providing fast and reliable Wi-Fi access in parks, plazas, bus stops, and transportation hubs. With its wide coverage and weatherproof housing, it not only supports public internet access but also powers city surveillance, IoT sensors, and digital kiosks, creating a safer and smarter urban experience.
Industrial and Logistics Parks
Warehouses, factories, and logistics yards demand robust connectivity for automation, tracking, and workforce mobility. The WDAP-3600BE ensures real-time data transfer for barcode scanners, AGVs, and surveillance cameras. Its -30°C to 70°C operating temperature guarantees reliable performance in harsh industrial conditions, minimizing downtime and boosting productivity.
Resorts, Hotels, and Campuses
Outdoor areas in hotels, resorts, and campuses require seamless Wi-Fi coverage to keep guests, students, and staff connected. The WDAP-3600BE delivers high-density performance, supporting hundreds of concurrent users for streaming, e-learning, and online collaboration. With centralized CloudNMS management, IT teams can easily monitor, configure, and optimize Wi-Fi service across multiple outdoor zones.
Event Venues and Outdoor Enterprises
Concerts, exhibitions, and outdoor co-working spaces need temporary but powerful wireless networks that handle peak traffic demands. The WDAP-3600BE offers 3600Mbps Wi-Fi 7 connectivity with advanced features like MU-MIMO and OFDMA to guarantee smooth user experiences, even in high-density environments. Its PoE+ power option simplifies rapid deployment, making it an ideal choice for pop-up networks and large-scale outdoor events.

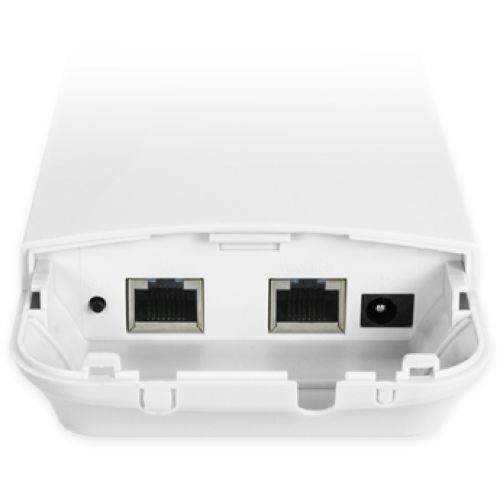

| Interfaces | WAN/PoE: 1 x 100/1000/2500BASE-T RJ45 port LAN: 1 x 10/100/1000BASE-T RJ45 port Auto-negotiation and auto MDI/MDI-X |
|---|---|

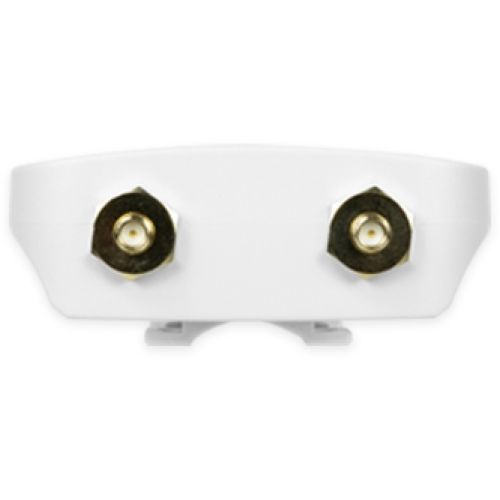

| Antennas | 2 × External dual-band RP-SMA type antennas (2.4GHz / 5GHz: 5dBi) |
| Reset Button | Reset button on the rear side (Press 6-10 seconds to reset the device to factory default.) |
| LED Indicators | 5 × Green LEDs for Power, LAN, WAN, and Wi-Fi (2.4GHz / 5GHz) status |
| Dimensions (W × D × H) | 86 × 30 × 186 mm (without antennas) |
| Weight | 550g |
| Material | ABS+PC |
| Power Requirements | IEEE 802.3af/at PoE (End-span, not support Mid-span), DC 12V/2A |
| Power Consumption | Max. 5.5 watts / 18.76 BTU (Power on without any connection) Max. 9.5 watts / 32.4 BTU (Full loading) |

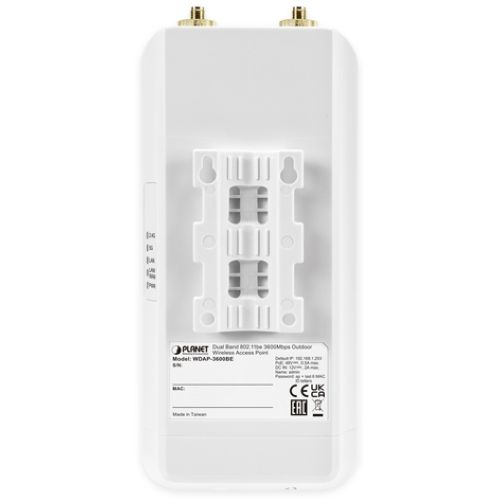

| Mounting | Mast mounting |
| IP Level | IP65 |
| Surge Protection | ±2KV (Common Mode), ±1KV (Differential Mode) |
| Standard | 5GHz: IEEE 802.11be IEEE 802.11ax IEEE 802.11ac IEEE 802.11n IEEE 802.11a 2.4GHz: IEEE 802.11be IEEE 802.11ax IEEE 802.11n IEEE 802.11b IEEE 802.11g IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2500BASE-T IEEE 802.3x flow control IEEE 802.11k, 802.11v, and 802.11r* IEEE 802.11i |
|---|---|
| Media Access Control | CSMA/CA |
| Data Modulation | 802.11be: MIMO-OFDM/OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM / 4096QAM) 802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM) 802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK) |
| Band Mode | 2.4GHz / 5GHz concurrent mode Frequency Range 2.4GHz: FCC: 2.412~2.462GHz ETSI: 2.412~2.472GHz 5GHz: FCC: 5.180~5.240GHz, 5.745~5.825GHz ETSI: 5.180~5.700GHz |
| Operating Channels | ETSI: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,124,128,132, 136, 140 (19 channels) FCC: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,120,124,128,132, 136, 140, 149, 153, 157, 161,165 (24 channels) |
| LAN | Static IP / Dynamic IP |
|---|---|
| WAN | Static IP Dynamic IP PPPoE / PPTP / L2TP |
| Wireless Mode | Access Point Gateway Repeater WISP |
| Channel Width | 20MHz, 40MHz, 80MHz, 160MHz |
| Encryption Security | WPA3 Personal WPA2/WPA3 Personal WPA2 Personal (AES) WPA2 Personal (TKIP) WPA2 Personal (TKIP+AES) WPA/WPA2 Personal (AES) WPA/WPA2 Personal (TKIP) WPA/WPA2 Personal (TKIP+AES) WPA2 Enterprise (802.1X) WPA/WPA2 Enterprise (802.1X) |
| Supported EAP Methods | EAP - Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) + Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) Protected EAP (PEAP) v0 + EAP-MSCHAPv2 PEAP v1 + EAP-Generic Token Card (GTC) |
| Wireless Security | Enable/Disable SSID broadcast Wireless max. 32 MAC address filtering User isolation |
| Max. SSIDs | 8 (4 per radio) |
| Max. Clients | 256 (128 is suggested, depending on usage) |
| Wireless QoS | Supports Wi-Fi Multimedia (WMM) |
| Wireless Advanced | Auto Channel Selection 5-level Transmit Power Control Max (100%), Efficient (75%), Enhanced (50%), Standard (25%) or Min (15%) Client Limit Control, Coverage Threshold Wi-Fi channel analysis chart Seamless roaming Beamforming BSS coloring |
| Status Monitoring | Device status, wireless client List PLANET Smart Discovery DHCP client table System Log supports remote syslog server |
| VLAN | IEEE 802.1Q VLAN (VID: 1~4094) SSID-to-VLAN mapping to up to 4 SSIDs |
| Self-healing | Supports auto reboot settings per day/hour |
| Management | Remote management through PLANET DDNS/ Easy DDNS Configuration backup and restore Supports UPnP* Supports IGMP Proxy Supports PPTP/L2TP/IPSec VPN Pass-through Supports Captive Portal*, RADIUS Server/Client |
| Central Management | Applicable controllers: NMS APC, WS APC, VR/IVR APC, ICG APC, PLANET CloudNMS |
| Temperature | Operating: -30~ 70 degrees C Storage: -40 ~ 70 degrees C |
|---|---|
| Humidity | Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 95% (non-condensing) |
| Regulatory | CE, RoHS |
